Confectionery Vision Counting & Packing Machine

The VX8 Confectionery Vision Counting & Packing Machine accurately counts candies, chewing gum, chocolates, lollipops, and other sweets for batch packaging.
It utilizes high-speed CCD image technology to ensure exceptional precision. Unlike weight-based counting systems, which can be inaccurate due to variations in individual product weight, the VX8 delivers reliable and consistent counting performance.

Model :

VX8, VX6

Features :

VX8 is a continuous vision counting packaging machine with high efficiency
It can count different types of candies, including chewing gum, chocolate, lollipops, and other sweets
Uses high-speed CCD image technology for accurate counting
Vision-based counting is more precise than weighing systems
Helps save costs by reducing counting errors and lowering labor requirements
Suitable for single-package quantities of 5–50 pieces
A high-speed CCD camera scans items falling from vibrating chutes
Advanced algorithms analyze images and count each falling item to complete batch packaging

Advantages :

High efficiency:Vision based counter uses large track and scan falling objects,instead of using several narrow tracks to separate objects one by one
99.99% accuracy for weight of each object is not exactly the same
Insensitive to dust
Fast changeover:One button operation for clearing to change objects
Self-learning software:Easy to calibrate for multiple objects counting
Extremely low maintenance
Reducing labor cost
Compacted design to save space

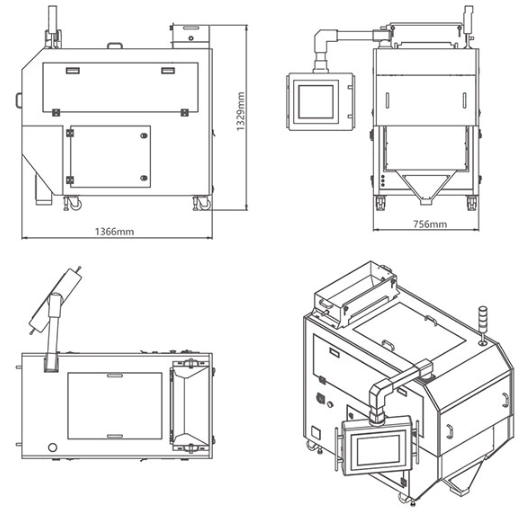

Dimension :

Applications :

Specifications :

High-frequency CCD sensor with scanning speed up to 10,000 times per minute
6-million-pixel optical lens with minimum recognition size of 0.2 mm
Advanced FPGA processing and control system with 1-nanosecond response time
Optimized algorithm software accurately detects overlapping items and tiny impurities
Industrial touch-screen tablet for easy operation and storage of programs for different products
Intelligent alarm system alerts abnormal conditions or product shortages with on-screen prompts
Patented self-learning technology allows easy counting of different objects
One-button clearing function for quick reset
ERP system connectivity for seamless data integration

Technical Data :

Model	VX8	VX6
Applicable material size	φ≤20mm, L≤40mm
Counting accuracy	99.99%, No negative error
Unit pack	≥1
Counting efficiency	φ10mm, 10pcs, 50bags/min	Φ10mm, 10pcs, 35bags/min
Counting efficiency	φ10mm, 50pcs, 20bags/min	φ10mm, 50pcs, 15bags/min
Type of applicable materials	Bags of casual snacks, marinated eggs, frozen foods, nuts, candies, chocolate beans, tablets, capsules, fasteners, seeds, etc.
Applicable to packaging machine	Vertical and premade pouch packaging machine
Power/gas source	220V, 50HZ/0.5-0.6MPa
Dimension	1580mm × 970mm × 1220mm	2180mm × 550mm × 1260mm
Power	1.2KW	1.1KW
