I. Introduction

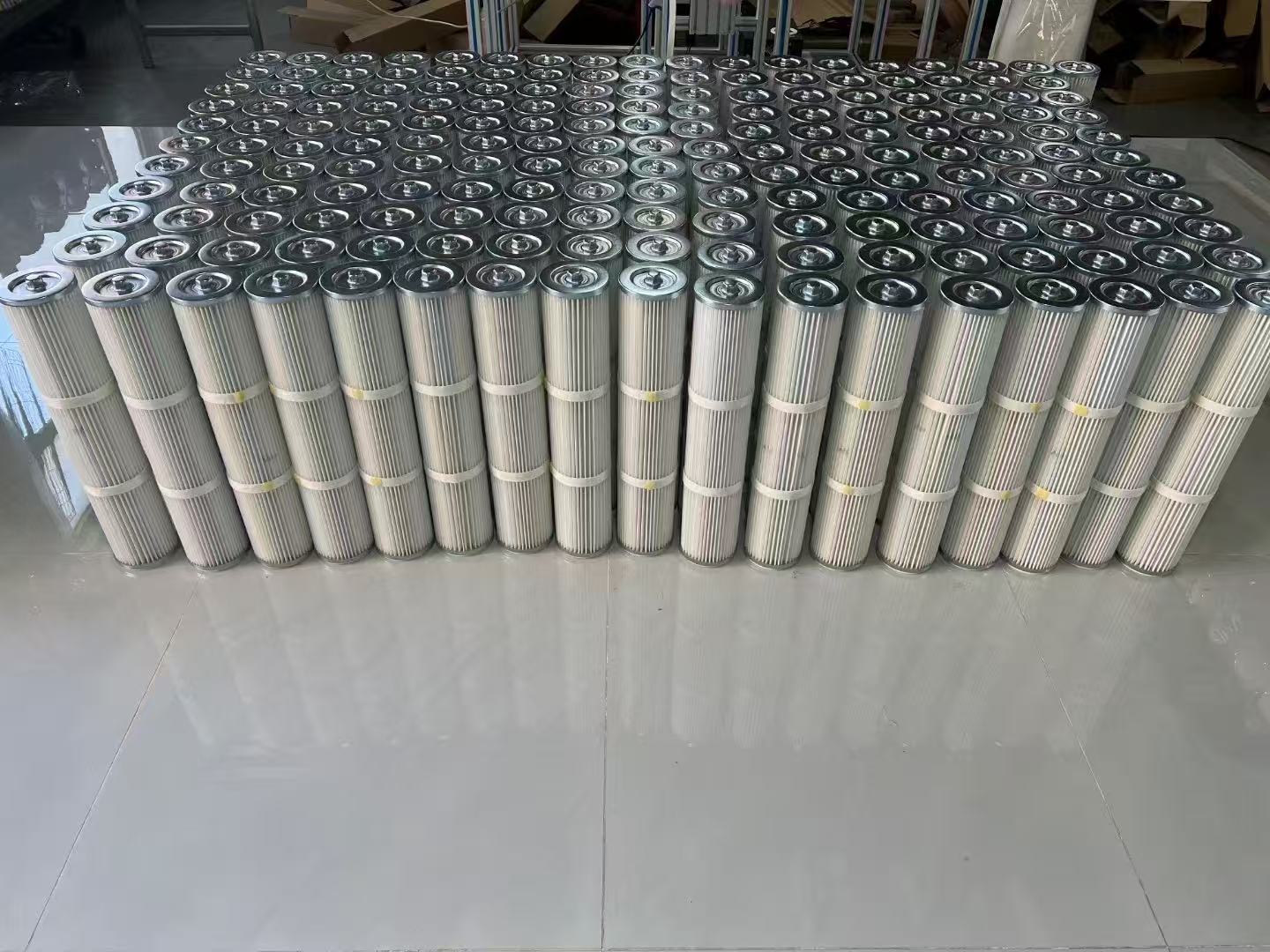

Pleated dust collector filter cartridges, with their pleated structure, significantly increase the filtration area within a limited space, making them the mainstream form of industrial cartridge dust collectors. The ventilation performance, operating resistance, cleaning efficiency, and service life of these cartridges depend not only on the filter media material but also directly on the pleating process, shaping method, and structural parameters.
With the same filter media and dimensions, the quality of the molding process can result in significant differences in airflow, pressure differential, cleaning efficiency, and durability. This article systematically analyzes the mainstream molding processes for pleated dust collector filter cartridges and, in conjunction with structural parameters, deeply analyzes their impact on ventilation performance.
II. Core Structural Principle of Pleated Filter Cartridges
Pleated filter cartridges mechanically fold planar filter media to form a continuous wave-like pleated structure:
This increases the effective filtration area and reduces the space occupied by the equipment;
Airflow passes through the gaps between the pleats and the filter media from the outside, completing air-dust separation;
The gaps between the pleats determine the air inlet channel, and the quality of the pleat shaping determines the smoothness of airflow;
A reasonable pleat arrangement can reduce turbulence, minimize dust accumulation dead zones, and stabilize ventilation performance.
III. Mainstream Molding Processes for Pleated Dust Collector Filter Cartridges
1. Mechanical Cold Folding Molding Process
This process utilizes a pleating machine to mechanically fold the filter material directly, without high-temperature setting.
Process Characteristics
High production efficiency and low cost; commonly used in low-end, ordinary filter cartridges;
The pleats are shaped solely by physical pressing, without heat curing of the fibers;
Defects
Pleats have high resilience, are prone to collapse, flattening, and deformation;
Irregular pleat gaps can lead to localized airflow blockage and narrow ventilation channels;
After being subjected to airflow vibration and dust removal impact, the pleats are easily deformed, resulting in a rapid decline in ventilation performance.
2. High-Temperature Hot-Pressure Curing Process
This is a mainstream, high-quality molding process in the industry, involving simultaneous high-temperature heating and pressure curing during folding.
Process Principle
After the filter material is folded by the pleating mechanism, it is shaped using a high-temperature oven and pressure strips, causing the fiber structure to be thermally cured and locking the pleat angle and spacing.
Advantages
The pleats are three-dimensional and crisp, not easily springing back, and do not deform or collapse;
The pleat spacing and angle are uniform, resulting in a regular air intake channel;
Even under long-term pulse vibration and airflow scouring, the structure remains stable, ensuring consistently stable ventilation.
3. Hot-Melt Rib Reinforcement Molding Process
Hot-melt ribs and plastic support ribs are longitudinally bonded to the inside of the pleats to aid in shaping.
Technical Functions
Separate each pleat, preventing adjacent pleats from sticking together or adhering to the wall;
Maintain a constant pleat opening to avoid compression and blockage;
Enhance overall rigidity, adapting to high negative pressure and high airflow conditions.
4. Fully Automated Precision Pleating Process
A process specifically designed for industrial filter cartridges, with computer-controlled precision for pleat height, number of pleats, spacing, and curvature.
Core Advantages
Evenly distributed pleats throughout the filter cartridge ensure uniform circumferential airflow;
Arc-shaped guide pleat design reduces right-angle airflow impact;
Balanced airflow distribution minimizes localized airflow resistance differences, resulting in superior overall ventilation performance.
5. Composite Membrane Synchronous Molding Process
A molding technology specifically designed for PTFE membrane filter media:
Controlled pleating tension prevents membrane stretching, cracking, wrinkling, and delamination;
Low-tension, gentle pleating protects the microporous membrane structure, balancing filtration accuracy and breathability.
IV. Impact of Key Molding Parameters on Ventilation Performance
1. Number of Pleats
Too many pleats: Overly dense arrangement, narrow gaps between pleats, significantly increased airflow resistance, decreased ventilation, and easy dust accumulation and blockage;
Too few pleats: Insufficient filtration area, high filtration load, overload of individual pleats, and rapid dust blockage;
Appropriate ratio: Match the number of pleats to the diameter and operating airflow to achieve a balance between filtration area and ventilation volume.
2. Pleat Height
Too high pleat height: Poor airflow in the deeper layers of the pleats, severe internal eddies, and increased pressure differential;
Too low pleat height: Insufficient unfolded area, low filter element utilization, and limited overall ventilation throughput.
3. Pleat Spacing and Opening
A larger pleat opening results in a wider outer air intake channel and lower airflow resistance.
Poor molding processes leading to inconsistent openings can cause localized airflow blockages, airflow deviation, and dust accumulation dead zones.
4. Pleat Angle
Right-angle pleats: High airflow resistance, increased turbulence, and dust easily accumulates at the pleat positions.
Curved obtuse angle molding: Smooth airflow guidance, low airflow resistance, less dust accumulation, and more stable ventilation.
5. Shaping Firmness
Cold folding results in amorphous shaping: Later wrinkles and deformation adhere, ventilation channels gradually close, and resistance continuously increases;
Hot pressing curing ensures shaping: Air ducts maintain their original shape over a long period, ventilation performance declines slowly, and pressure differential remains stable.
V. Ventilation Problems Caused by Molding Process Defects
**Wrinkled and Overlapping**
Severe springback during cold folding causes folds to stick together, significantly reducing the air intake area, obstructing ventilation, and increasing resistance.
**Local Airflow Blockage** Uneven fold spacing, skewed folds, and misaligned folds cause airflow deviation, resulting in areas with no airflow and dust accumulation.
**Airflow Turbulence Loss** Harsh folds and lack of airflow guidance design lead to significant airflow impact losses and increased ineffective air pressure loss.
**Inability to Restore After Cleaning**
Insufficient shaping strength causes folds to twist and deform after blowing, resulting in secondary blockage of airflow channels and poor ventilation continuity.
**Damaged Membrane and Reduced Permeability**
Rough folding of the membrane filter element causes micro-cracks and shrinkage pores in the membrane, simultaneously impairing both permeability and filtration accuracy.
VI. Ventilation Performance Optimization Molding Technology Solution
**High-Temperature Hot-Pressure Three-Dimensional Molding**
Prevents wrinkle rebound and collapse, ensuring long-term duct regularity and stable basic ventilation.
**Optimized Arc-Shaped Guide Pleat Design**
Reduces right-angle bends, using rounded transitions to reduce airflow friction and turbulence, minimizing wind resistance.
**Precisely Matched Pleat Count and Pleat Spacing**
Customized arrangement based on filter cartridge diameter, filter material permeability, and processing air volume, avoiding overly dense or sparse placement.
**Added Support Ribs for Separation and Molding**
Fixes opening, preventing adhesion and compression, ensuring independent and unobstructed airflow in each duct.
**Low-Tension Flexible Pleats in Membrane Filter Cartridges**
Exclusive gentle molding process protects the microporous structure, preserving airflow and filtration layer.
**End-Cap Protective Rings for Shaping**
Upper and lower end caps limit and fix the pleat ends, preventing shrinkage and deformation, ensuring uniform ventilation from top to bottom.
