Handheld 3D Scanner vs Robotic Automated 3D Scanner

Handheld 3D Scanner vs Robotic Automated 3D Scanner Understand the key differences in speed, flexibility, accuracy, and automation to choose the right inspection solution.

Choosing between a handheld 3D scanner and a robotic automated system is no longer just a theoretical debate; it is a practical decision based on your specific deployment needs. While both often utilize similar technologies like structured light or blue lasers, the way they capture and control data differs significantly.

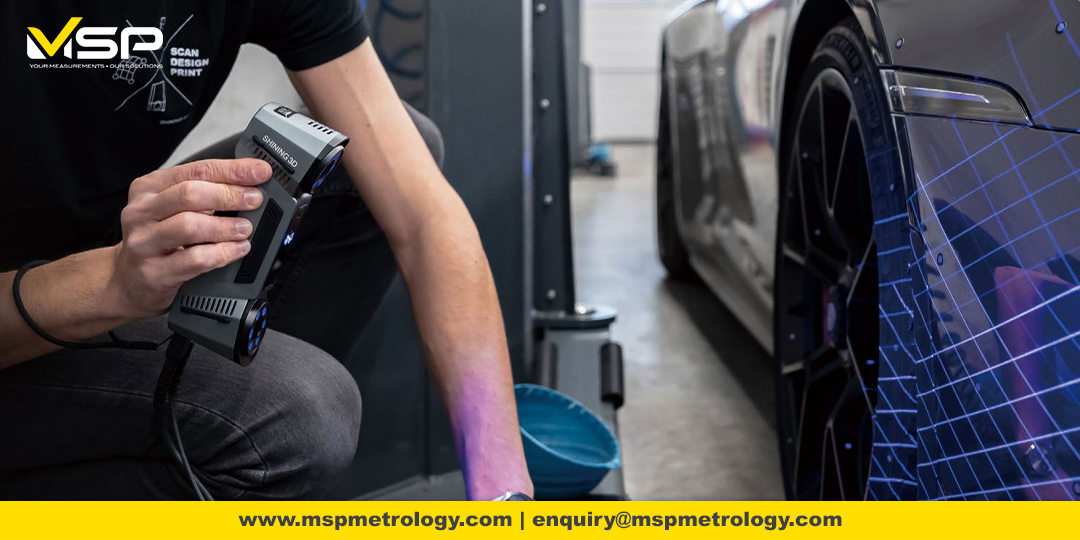

Handheld 3D Scanners: The Power of Mobility

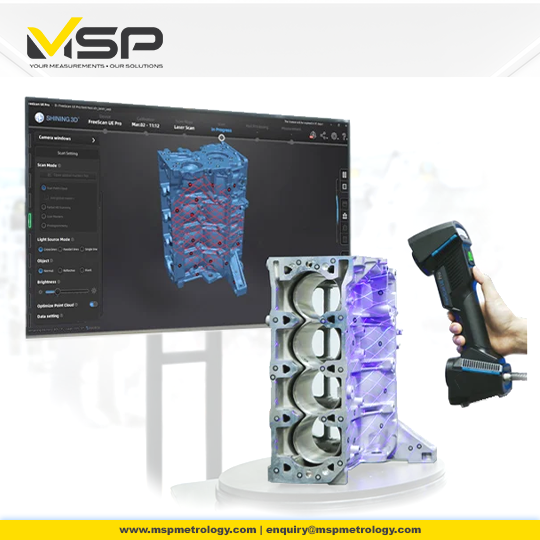

Handheld 3D scanners, such as the Shining 3D Combo, Trak Nova, Ue Pro Series, function like a video camera for 3D data, allowing the operator to "paint" the surface of an object to capture its geometry.

Maximum Flexibility: These devices are ideal for hard-to-reach places, confined spaces, or objects that cannot be moved, such as installed machinery, aircraft components, or large museum sculptures.

On-Site Capability: Many models are battery-powered, enabling field scanning in sectors like construction, marine, and energy without the need for a stable power source or controlled lighting.

Speed of Deployment: A handheld unit can be powered on and capturing data within minutes, making it perfect for rapid prototyping and maintenance cycles.

Robotic & Automated Systems: The Standard for Precision

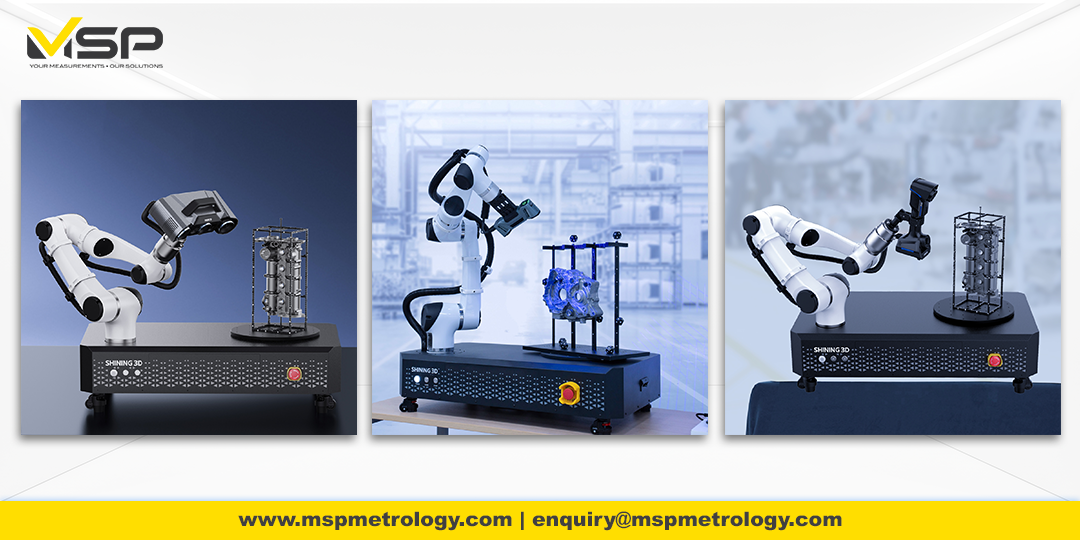

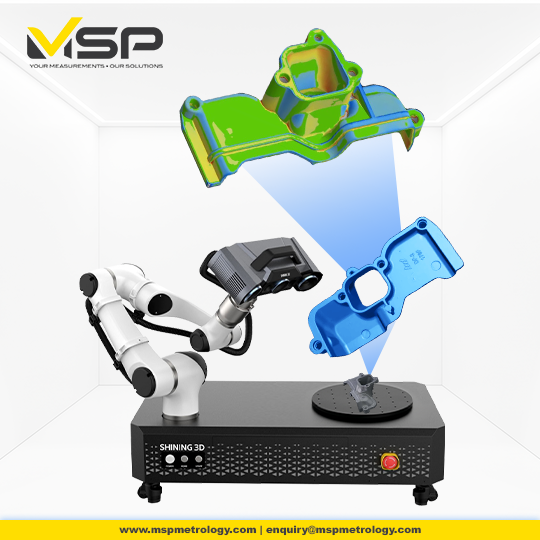

Automated systems, ranging from stationary scanners on motorized turntables to scanners mounted on fully programmed robotic arms (for example: Shining 3D RobotScan Series), are designed for high-volume repeatability and extreme precision

Unmatched Accuracy: Stationary scanners typically provide superior resolution and accuracy because they take high-quality "snapshots" rather than continuous video-like frames, consolidating multiple images into a single scan.

Efficiency in Volume: For repetitive tasks, automation is a game-changer. A scanning job that takes 30 minutes manually can often be completed in just 2 minutes using an automated setup
.

Consistency: By removing human movement, automated systems eliminate the "steady hand" requirement, ensuring that every part in an assembly line is measured identically
.

Key Comparison at a Glance

Feature	Handheld 3D Scanner	Robotic / Automated System
Best For	Large, immovable, or irregular objects	Small-to-medium parts requiring high precision
Accuracy	High, but depends on operator stability	Metrology-grade repeatability and fine detail capture
Speed	Fast for single, unique setups	Massively faster for batch processing
Environment	Dynamic settings, shop floors, and outdoors	Controlled environments (labs or clean factories)
Learning Curve	Generally easier to learn for beginners	Requires more technical setup and programming knowledge

The Hybrid Solution: Robotic Handheld Scanning

The line between these two categories is blurring. Many manufacturers now offer robotic-mounted handheld scan heads. This setup bridges the gap by providing the flexibility of a handheld scanner with the speed and accuracy of a robot. In this configuration, the robotic arm moves the handheld scanner more precisely and faster than a human ever could, making it an ideal choice for factory automation.

Which Should You Choose?

Choose Handheld if:

Your parts vary in size (from small tools to semi-trucks), you need to scan in the field, or you are performing one-off reverse engineering tasks.

Choose Robotic/Automated if:

You have high-volume inspection lines, require the absolute highest level of sub-millimeter precision, or need to remove manual labor from your quality control workflow.

Selection Guide by Application Needs

Criteria	Handheld 3D Scanner	Robotic / Automated System
Object Size	Large / Very Large Objects that are large, immovable, irregular, or difficult to place on a table or turntable.	Small / Medium Objects that can be placed easily on a table, turntable, workstation, or fixture.
	↓	↓
Production Volume	Low / Variable One-off projects, unique parts, or non-repetitive scanning requirements.	High / Repetitive Batch processing, production lines, or frequent scanning of identical parts.
	↓	↓
Working Environment	On-Site / Field / Hard-to-Reach Suitable for scanning at the source, outdoors, shop floors, or dynamic environments.	In-Lab / Factory / Controlled Environment Best for stable conditions with controlled lighting, fixture setup, and consistent workflow.
	↓	↓
Recommended Solution	Choose Handheld 3D Scanner Maximum flexibility for large parts, irregular objects, and on-site scanning.	Choose Robotic / Automated System High precision, repeatability, and faster inspection for high-volume applications.

By understanding your required functional accuracy and operational context, you can ensure that your 3D scanning solution becomes a scalable advantage rather than a bottleneck.
