Nut Vision Counting & Packaging Machine (VX8)
Nut Vision Counting & Packaging Machine (VX8)

Nut Vision Counting & Packaging Machine (VX8)





Model :

  • VX8


Features :

  • Materials fall one by one through a multi-stage V-groove vibration feeder
  • 3-level buffer gate and 8 channels ensure fast and accurate counting
  • One machine can count different types of materials
  • Ideal for hardware counting and packaging
  • A high-speed CCD camera scans items as they fall through vibrating chutes
  • Smart image algorithms capture clear images
  • The machine counts each item precisely to complete batch packaging


Advantages :

  • Fully automatic vision counting and packaging
  • High counting accuracy with controlled one-by-one material flow
  • Fast and stable performance using a 3-level buffer gate and 8 channels
  • Versatile machine that handles multiple material types
  • Ideal for hardware and small parts packaging
  • High-speed CCD camera ensures reliable detection
  • Advanced image algorithms deliver clear and accurate counting
  • Precise batch packaging with minimal errors

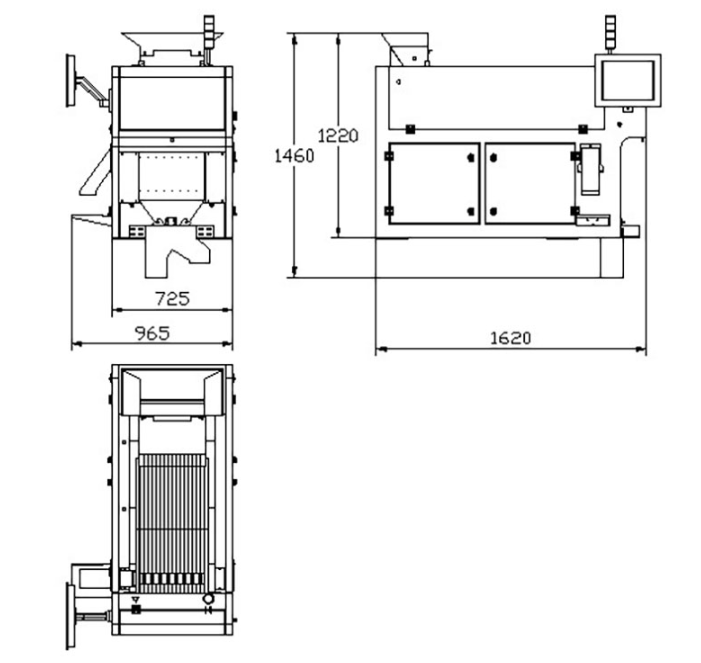

Dimension :

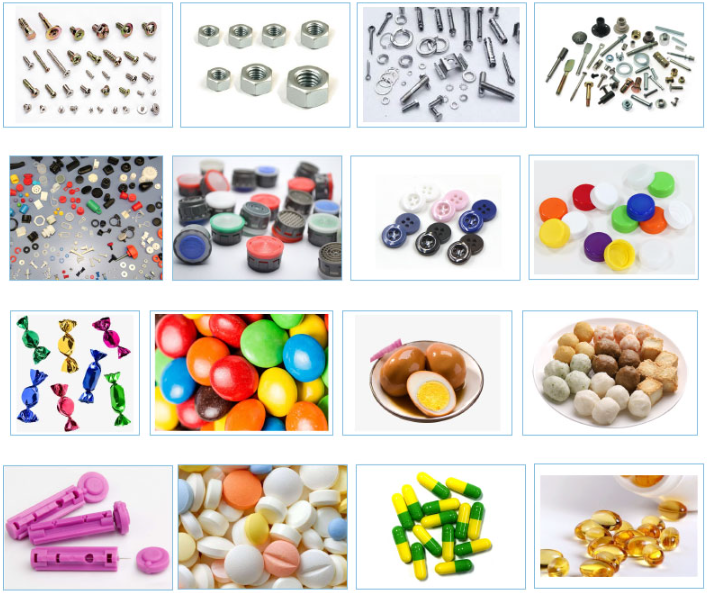

Applications :

  • Electronic components: Mobile phone and hard disk screws, capacitors, resistors, relay silver contacts, electrical connectors
  • Plastic injection molded parts: Pipe fittings, plastic parts, garment buttons, molded plastic components
  • Hardware: Nuts, bolts, screws, washers, rivets, pins, studs, inserts, fasteners, self-piercing rivets
  • Food: Sweets, candies, frozen food
  • Pharmaceutical: Lancets, insulin needles, capsules





Specifications :

  • High-frequency CCD sensor with scanning speed up to 10,000 scans per minute
  • 6-megapixel optical lens with minimum detection size of 0.2 mm
  • High-performance FPGA processing system with 1-nanosecond response time
  • Advanced image algorithms detect overlapping objects and tiny impurities
  • Industrial touch-screen tablet for easy program storage and product setup
  • Smart alarm system alerts for errors, shortages, or abnormal conditions
  • Patented self-learning technology enables quick adaptation to different objects
  • One-button clearing function for fast and easy cleanup
  • ERP system connectivity for data integration and management

Technical Data :

Model VX8 VX6
Applicable material size φ≤20mm,L≤40mm
Counting accuracy 99.99%,No negative error
Unit pack ≥1
Counting efficiency φ10mm,10pcs,50bags/min Φ10mm,10pcs,35bags/min
φ10mm,50pcs,20bags/min φ10mm,50pcs,15bags/min
Type of applicable materials Bags of casual snacks, marinated eggs, frozen foods, nuts, candies, chocolate beans, tablets, capsules, fasteners, seeds, etc.
Applicable to packaging machine Vertical and premade pouch packaging machine
Power/gas source 220V,50HZ/0.5-0.6MPa
Dimension 1580mm × 970mm × 1220mm 2180mm × 550mm × 1260mm
Power 1.2KW 1.1KW
