| Specification | |
|
MODEL
|
Face ID X |
| SURFACE FINISHING | Acrylonitrile Butadiene Styrene (ABS) & Acrylic |
| TYPE OF SCANNER | Hi-res infrared camera & fingerprint scanner |
| MICROPROCESSOR | 1.2GHz |
| MEMORY | 1.0GB SDRAM/ 1.0GB flash |
| ALGORITHM | Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0 |
| PUSH TECHNOLOGY | Yes |
| PRODUCT DIMENSION (L X W X H), mm | 194 x 110 x 145 |
| STORAGE | |
| • Fingerprint templates | 10,000 |
| • Face templates | 3,000 (1:N), 30,000(1:1) |
| • Transaction logs | 1,000,000 |
| ENROLLMENT & VERIFICATION | |
| • Methods | Face (1:1, 1:N), fingerprint (1:1, 1:N), password |
| • Recommended fingerprint per user ID | 2 |
| • Fingerprint placement | Any angle |
| • Verification time – Face, sec | <2 |
| • Verification time – Fingerprint, sec | < 1 |
| • Fingerprint | FAR < 0.0001%, FRR < 0.1% |
| • Face | FAR < 0.01%, FRR < 0.1% |

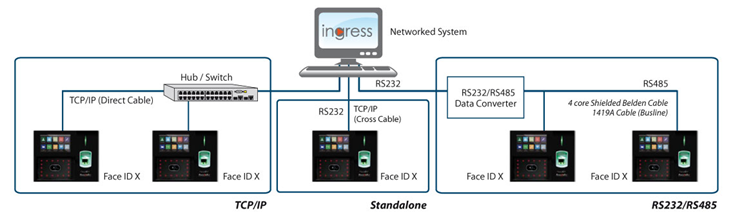

| COMMUNICATIONS | |
| • Method | TCP/IP, RS232, RS485, USB Disk |
| • Baud rates | 9600, 19200, 38400, 57600, 115200 |
| • Wiegand | 26-bit output |
| OPERATING ENVIRONMENT | |
| • Temperature (°C) | 0 ~ 45 |
| • Humidity (%) | 20 ~ 80 |
| • Power input |
DC 12V 3A |
| TIME ATTENDANCE | |
| • Siren | Internal and external |
| • Work codes | Yes |
| • Fast Transaction Checking | Yes |
| MULTIMEDIA | |
| • Display | 4.3” 65K color TFT Touch Screen Panel |
| • Photo-ID | Yes |
| • Short messaging | Yes |
| • Day Light Saving Timer | Yes |
| • Internal Backup Battery | Yes (DC 12V, 2000mAh) |

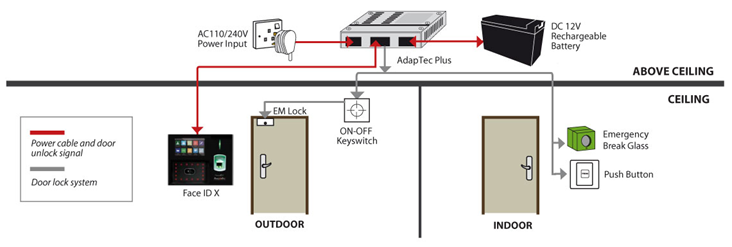

| ACCESS CONTROL | ||
| • EM lock driving output | DC12V / Relay output | |
| • Alarm output | NO/NC | |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish and Persian. Other languages are available upon request. | |
| SOFTWARE |
|
|
|
Face ID X (1GB SDRAM / 1GB Flash) |
Face ID 2 (128MB Nand flash) |
|
| Transactions | 1,000,000 | 200,000 |
| Face | 3,000 (1:N), 30,000 (1:1) | 1,200 |
| Fingerprint | 10,000 | |
| Swift & Accurate Verification | Incomparable Swiftness & Accuracy | |
| Face | False Acceptance Rate < 0.01% | |
| False Rejection Rate < 0.1% | ||
| Speed < 2 sec | ||
| Fingerprint | < 0.0001% False Acceptance Rate | |
| < 0.1% False Rejection Rate | ||
| < 1 sec Speed | ||
