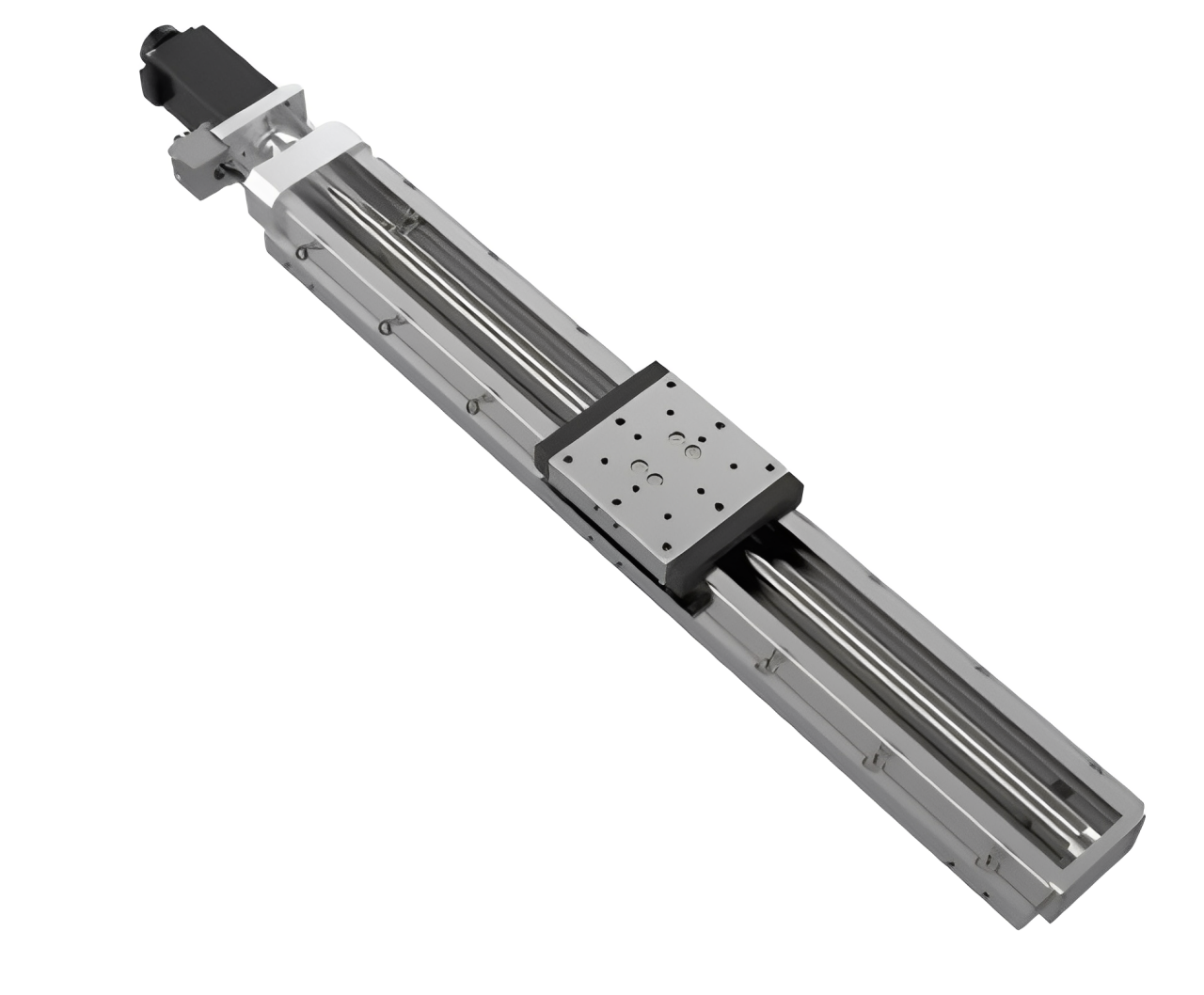

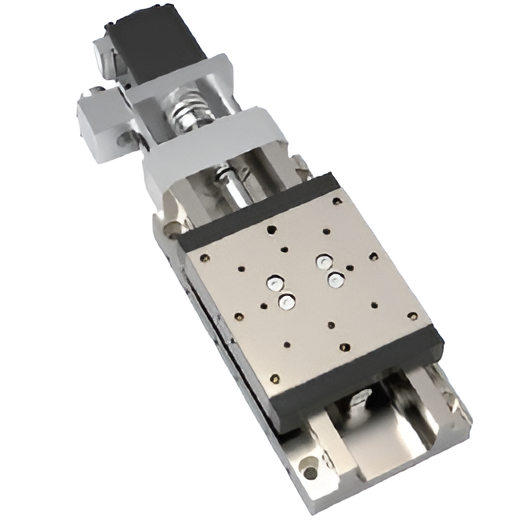

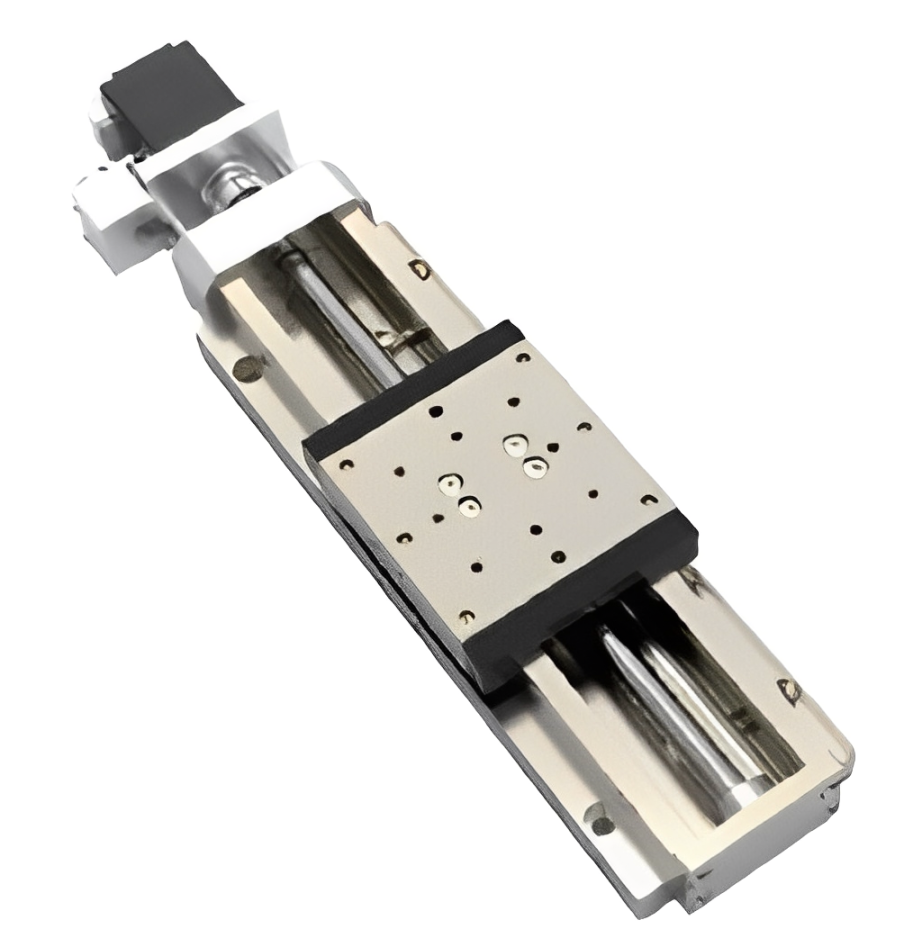

Standard X-axis Ball Screw Feed Type (LFTX Series)

SEM Equipment Sdn. Bhd.

分类: PRECISION POSITIONING STAGE 当前有货

欲了解更多详情，请游览我们的官方网站 sem-eq.com

游览官方网站联络我们

详情

Model :

LFTX630-L/R, LFTX650-L/R, LFTX675-L/R

LFTX6100-L-C1/C2, LFTX6150-L-C1/C2, LFTX6200-L-C1/C2

LFTX6250-L-C1/C2
LFTX6300-L-C1/C2

Features :

Standard platform with 28-inch stepper motor.
Custom travel options are available through consultation with our technical support staff.
Extension cable order model: ASCBXB-T (X represents length, ranging from 2 to 8 meters).

Dimension :

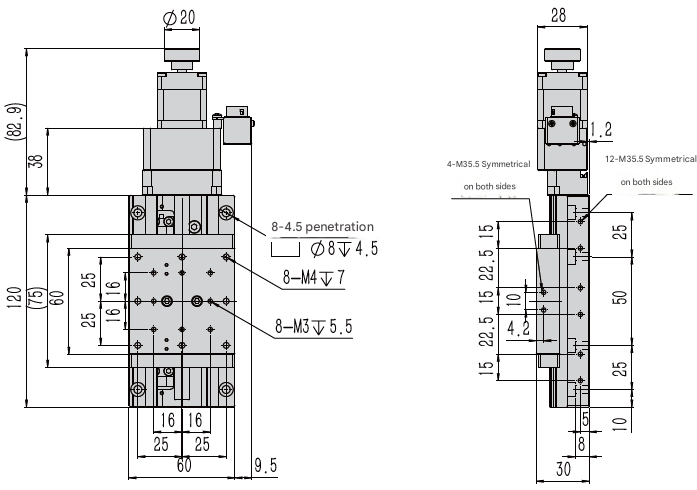

LFTX630-L-C1

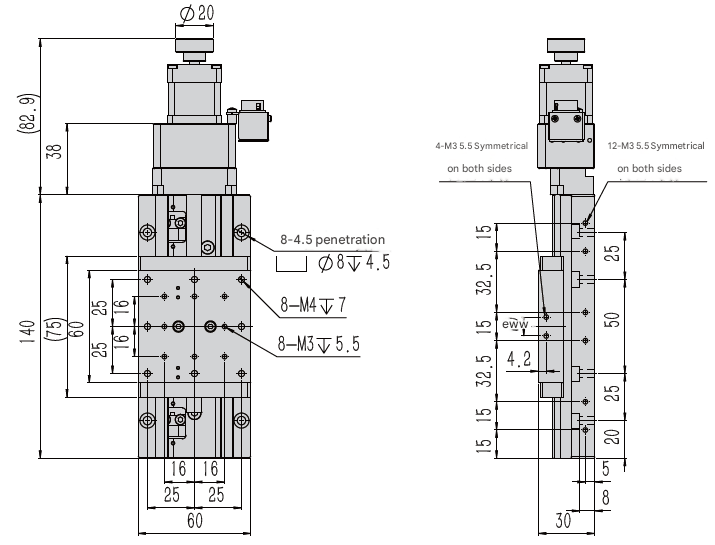

LFTX650-L-C1

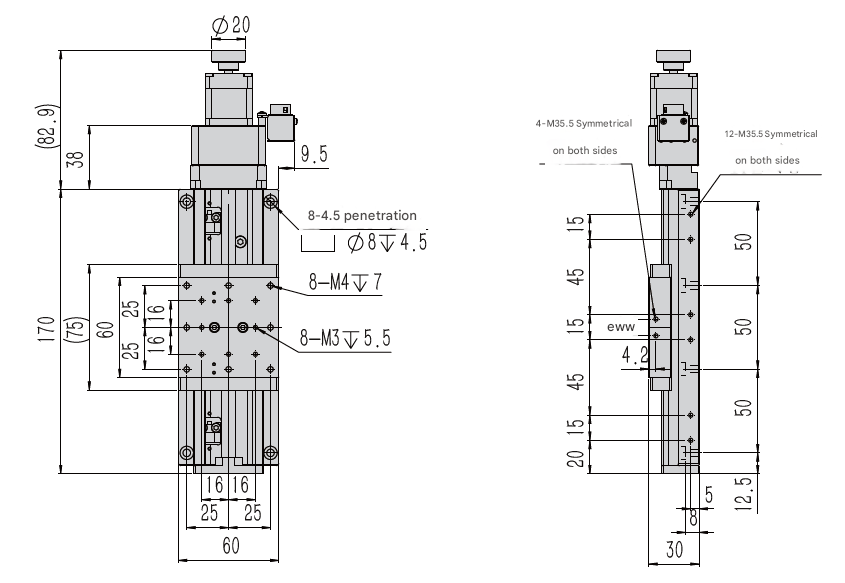

LFTX675-L-C1

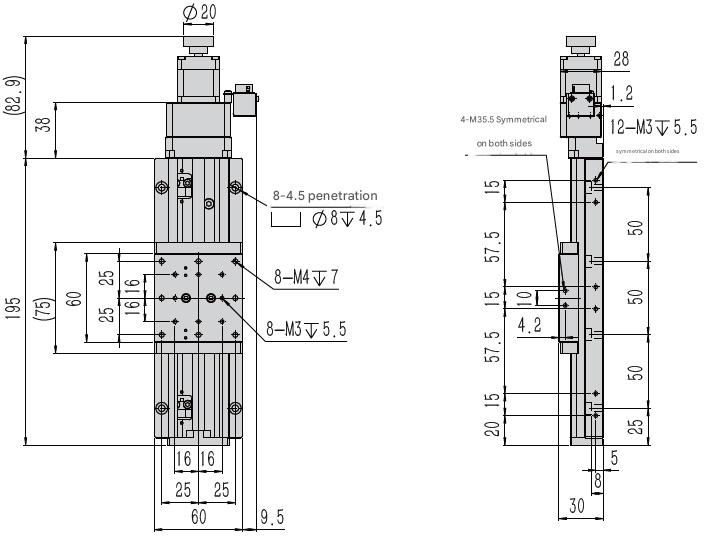

LFTX6100-L-C1/C2
LFTX6150-L-C1/C2

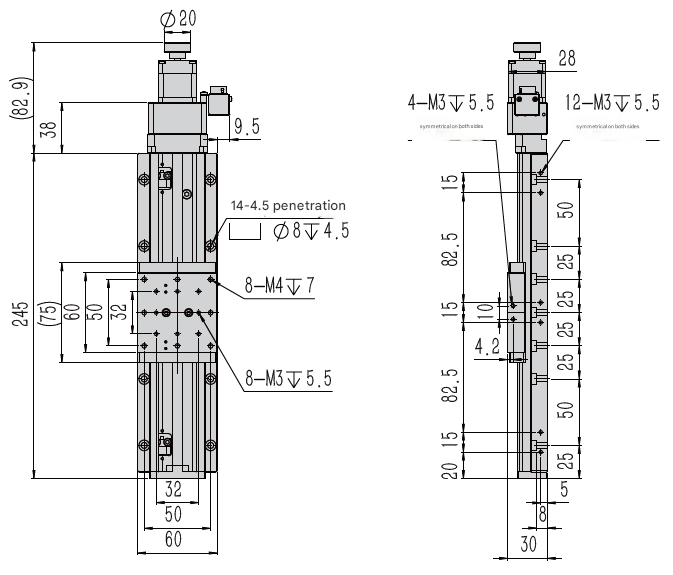

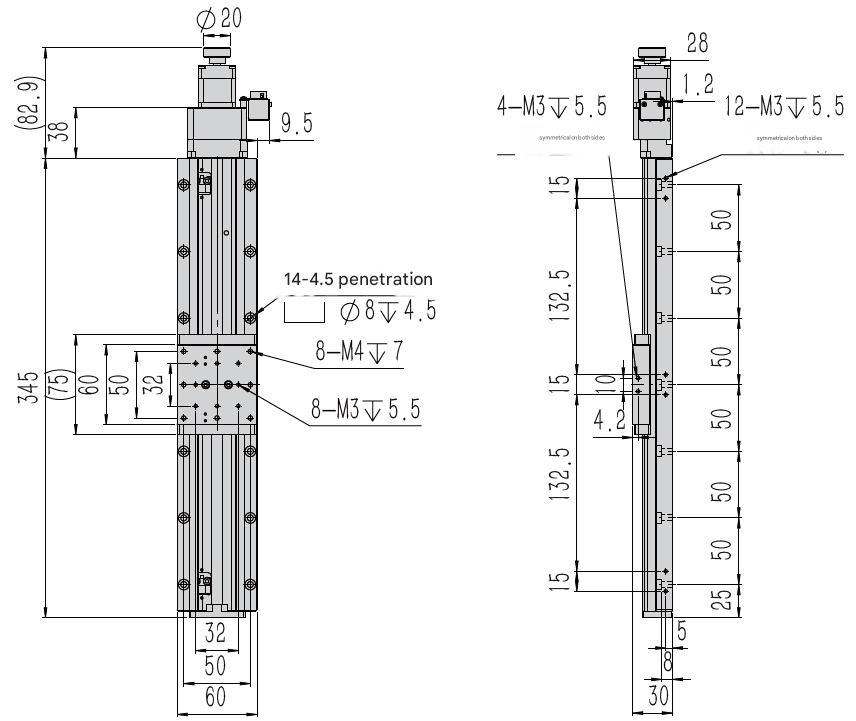

LFTX6200-L-C1/C2

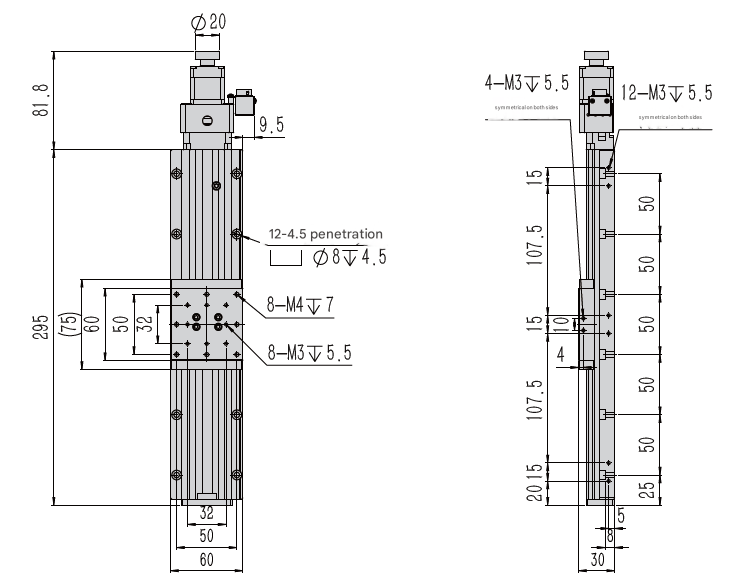

LFTX6250-L-C1/C2

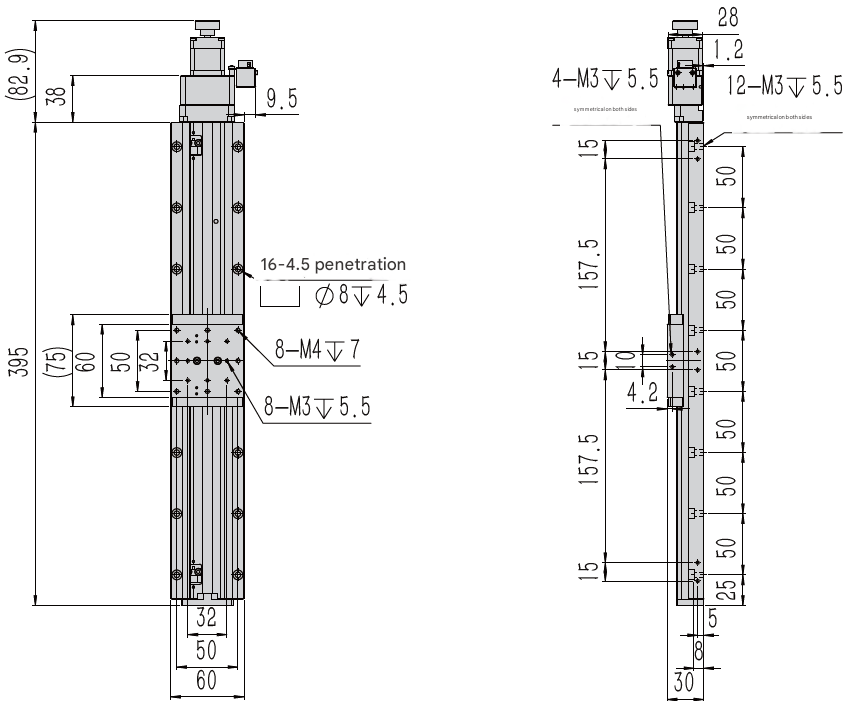

LFTX6300-L-C1/C2

Specifications :

LFTX630-L/R / LFTX650-L/R / LFTX675-L/R

Model	LFTX630-L/R	LFTX650-L/R	LFTX675-L/R
Movement amount	30mm	50mm	75mm
Slide table size	60x60 mm
Feed screw (ball screw)	Ø 8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 1.2kg	About 1.3kg	1.4kg
Move direction	X-axis
Maximum speed	20mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	14kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	Within 20um
Limit sensor	2
Origin sensor	Optional

LFTX6100-L-C1/C2, LFTX6150-L-C1/C2, LFTX6200-L-C1/C2

Model	LFTX6100-L/R	LFTX6150-L/R	LFTX6200-L/R
Movement amount	100mm	150mm	200mm
Slide table size	60 x 60 mm
Feed screw (ball screw)	Ø 8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 1.55kg	About 1.78kg	About 2kg
Move direction	X-axis
Maximum speed	C1 : 20mm/sec C2 : 40mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	14kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	Within 20um
Limit sensor	2
Origin sensor	Optional

LFTX6250-L-C1/C2

Model	LFTX6250-L/R
Movement amount	250mm
Slide table size	60 x 60 mm
Feed screw (ball screw)	Ø 8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 2.3kg
Move direction	X-axis
Maximum speed	20mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	14kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	Within 20um
Limit sensor	2
Origin sensor	Optional

LFTX6300-L-C1/C2

Model	LFTX6300-L/R
Movement amount	300mm
Slide table size	60 x 60 mm
Feed screw (ball screw)	Ø 8 lead 1
Guide	Straight Line guide
Main material a surface treatment	Steel nickel plated
Self-respect	About 2. 62kg
Move direction	X-axis
Maximum speed	20mm/sec
Positioning accuracy	Within 15um
Repeat Positioning accuracy	±1um
Load	14kgf
Invalid movement	Within 3um
Straightness	Within 3um
Parallelism	within 20um
Limit sensor	2
Origin sensor	Optional
