Mikrosize Variable Zoom Lens

LZ-650121 Electric

Motorized Coaxial

LZ-650104

Electric Motorize

LZ-63100 Continuous

fixed Zoom

Zoom + Coaxial

LZ-63102-M12A

Fine-tuning len

LZH-6805-K High

resolution

Electric Motorized

LZ-650121 Electric Motorized coaxial

LZ-650104 Electric Motorized

Manual

LZ-63100 Continuous fixed Zoom

LZ-63107-M3 Fixed-step Zoom + Coaxial

LZ-63102-M12A Fine-tuning lens

Electric Motorized& Manual

LZH-6805-K High resolution

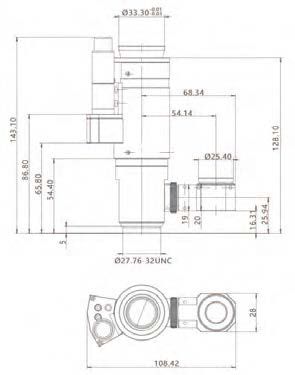

of 6.5:1. It allows for a fine adjustment of 3mm. The magnification

range is from 0.7X to 4.5X. It supports a maximum sensor size of

2/3”. The working distance (WD) is 80±2mm.

●The main lens has a small field of view and can be used for fast

and accurate measurement.

●The navigation lens has a large field of view (35.8mm * 26.9mm)

and is used for quickly finding the target.

●Excellent optical performance, high resolution, low distortion,

and a high numerical aperture (N.A. value).

●It has a compact structural design, making it easy to integrate

and install.

●It adopts the incidence of infinite parallel light, enabling

shadowless illumination.

●The coaxial epi-illumination structure can make the distribution

of incident light more uniform.

Electric variable magnification:

●High - speed variable magnification and high - precision

repeated positioning; Imported DC servo motors are adopted.

●The electric control system realizes single-axis or dual-axis

control through a 9-pin RS-232 serial port.

●It can maintain mechanical stability in harsh vibration environments.

Type

Electric Motorized + Coaxial Zoom Lens

Optical Magnification Ratio

0.7X~4.5X

Working Distance（WD）

80±2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

Telecentricity (°)

0.68

0.185

0.7

1.075

0.8

0.75

0.7

0.81

Depth of Field（DOF）(mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

N.A.

0.03

0.04

0.063

0.07

0.085

0.085

0.095

0.095

F.NO.

11.7

12.7

11.95

14.4

15.3

17.6

18.5

20.8

Resolution (μm)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

TV Distortion(%)

0.06

0.02

0.01

0.03

0.003

0.002

0.03

0.03

Sensor Size

2/3”

Connector

C - type

Zooming method

Electric variable magnification

Focus adjustment

\

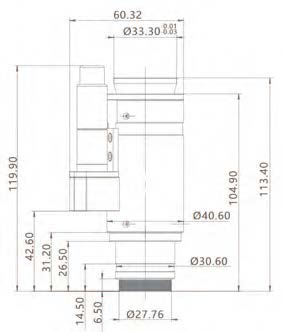

6.5:1, allowing for fine - tuning of 3mm, with a magnification range

from 0.7X to 4.5X. It supports a maximum sensor size of 2/3", and the

working distance (WD) is 80±2mm.

●The main lens has a small field of view and can be used for rapid

and precise measurement.

●The navigation lens has a large field of view (35.8mm * 26.9mm)

and is used for quickly finding the target.

●It has excellent optical performance, high resolution, low distortion,and a high numerical aperture (N.A.) value.

●It has a compact structural design, making it easy to integrate and

install.

●It features a high-speed variable magnification rate and

high-precision repetitive positioning. An imported DC servo

motor is adopted.

●It features a high-speed variable magnification rate and

high-precision repetitive positioning. An imported DC servo

motor is adopted.

●It can maintain mechanical stability even in harsh vibration

environments.

Type

Electric Motorized - Zoom lens

Optical Magnification Ratio

0.7X~4.5X

Working Distance（WD）

80±2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

Telecentricity (°)

0.68

0.185

0.7

1.075

0.8

0.75

0.7

0.81

0.87

Depth of Field（DOF）(mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.NO.

11.6

12.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution (μm)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion(%)

0.019

0.035

0.002

0.003

0.004

0.001

0.001

0.002

0.002

Sensor Size

2/3”

Connector

C - type

Zooming method

Electric variable magnification

Focus adjustment

\

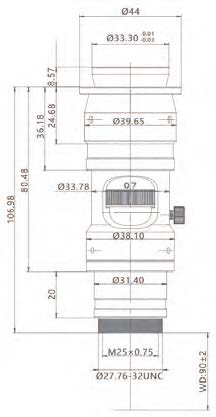

6.5X Electric Magnification Coaxial Lens with a magnification ratio

of 6.5:1, allowing for fine - tuning of 3mm, with a magnification

range from 0.7X to 4.5X. It supports a maximum sensor size of

2/3", and the working distance (WD) is 90±2mm.

●With a professional optical path design, the optical magnification

is in the range of 0.7X - 4.5X, and the zoom ratio is 6.5:1.

●Based on a 2/3" camera, it can achieve large-field-of-view

observation.

●It has a compact structural design, which makes it easy to

integrate and install

●It adopts infinite parallel light incidence, which can achieve

shadowless illumination.

●The coaxial episcopic illumination structure can make the

distribution of incident light more uniform.

Fixed-step magnification：

●With a mechanical positioning structure, it has superior magnification

repeatability and stability.

●It can achieve mechanical positioning in 15 segments.

●It is made of high-hardness alloy materials, featuring a long

service life. The mechanical structure is designed to be robust and

reliable.

Type

Continuous Fixed Zoom Lens

Optical Magnification Ratio

0.7X~4.5X

Working Distance（WD）

90±2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

Depth of Field（DOF）(mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

F.NO.

11.6

12.1

12.5

14.2

17.8

17.6

20.5

23.5

Resolution (μm)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

TV Distortion(%)

0.019

0.035

0.002

0.003

0.004

0.001

0.001

0.002

Sensor Size

2/3”

Connector

C - type

Zooming method

Manual zooming

Focus adjustment

\

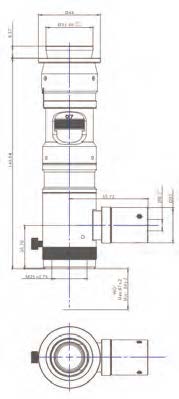

This 6.5X fixed-position zoom lens has a zoom ratio of 6.5:1,

allowing for a fine adjustment of 3mm. Its magnification range is

from 0.7X to 4.5X. It supports a maximum sensor size of 2/3", and

the working distance is 90±2mm.

●With a professional optical path design, the optical magnification

is 0.7X - 4.5X, and the zoom ratio is 6.5:1.

●Based on a 2/3" camera, it is capable of achieving

large-field-of-view observation.

●It has excellent optical performance, high resolution, low distortion,and a high numerical aperture (N.A.) value.

●It features a compact structural design, making it easy to

integrate and install.

●High-precision zooming and high-precision repeatability.

●It can achieve mechanical positioning in 6 segments and 9

segments respectively.

●It is made of high-hardness alloy materials, which ensures a

long service life. The mechanical structure is designed to be

robust and reliable.

Fine adjustment device：

●It has a seamless combination and allows for large-scale

internal focusing ranging from 0mm to 3mm.

●It features precise curve smoothness and an excellently combined design of optics.

●It has a zero-clearance precise fit, enabling positioning at any

position without affecting the imaging effect.

Type

Fixed-step Zoom + Coaxial lens

Optical Magnification Ratio

0.7X~4.5X

Working Distance（WD）

90±2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

Depth of Field（DOF）(mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.NO.

11.6

12.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution (μm)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion(%)

0.019

0.035

0.002

0.003

0.004

0.001

0.001

0.002

0.002

Sensor Size

2/3”

Connector

C - type

Zooming method

Manual variable magnification

Focus adjustment

Fine adjustment of 3mm

This 6.5X fixed-position zoom lens has a zoom ratio of 6.5:1, allowing for a fine adjustment of 3mm. Its magnification range is from 0.7X to 4.5X. It supports a maximum sensor size of 2/3", and the working distance is 90±2mm.

●With professional optical path design, the optical magnification is in

the range of 0.7X to 4.5X, and the zoom ratio is 6.5:1.

●Based on a 2/3" camera, it can achieve large-field-of-view observation.

●It has a compact structural design, making it easy to integrate and install.

●It has a mechanical positioning structure, boasting superior magnification repeatability and stability.

●It can achieve mechanical positioning in 15 segments.

●It adopts high-hardness alloy materials, ensuring a long service life. The mechanical structure is designed to be sturdy and reliable.

Fine adjustment device：

●It can be used in narrow spaces. For workpieces at different heights, one can achieve clear focusing just by adjusting the fine-tuning structure, without the need to change the original working distance of the lens.

●A fine-tuning structure with a range of 12mm can be provided.

Type

12mm fine-tuning lens

Optical Magnification Ratio

0.7X~4.5X

Working Distance（WD）

90±2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

Depth of Field（DOF）(mm)

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

F.NO.

11.6

12.1

12.5

14.2

17.8

17.6

20.5

23.5

Resolution (μm)

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

TV Distortion(%)

0.019

0.035

0.002

0.003

0.004

0.001

0.001

0.002

Sensor Size

2/3”

Connector

C - type

Zooming method

Manual variable magnification

Focus adjustment

Fine adjustment of 12mm

This 6.5X electric magnification coaxial lens has a zoom ratio of 6.5:1, with an optical magnification range of 0.7X to 4.5X. It supports a maximum sensor size of 1", and the working distance (WD) is 88±2mm.

●With a professional optical path design, the optical magnification is 0.7X - 4.5X, and the zoom ratio is 6.5:1.

●Based on a 1" camera, it is possible to achieve large-field-of-view observation.

●It features a compact structural design, making it easy to integrate and install.

●It adopts infinite parallel light incidence, enabling shadowless illumination.

●The Coaxial Epi-illumination structure can make the distribution of incident light more uniform.

Electric variable magnification：

●It has a high-speed variable magnification speed and high-precision repetitive positioning. An imported DC servo motor is adopted.

●The electric control system realizes single-axis or dual-axis control through a 9-pin RS-232 serial port.

●It can maintain mechanical stability in a harsh vibration environment.

Type

6.5X 1-inch High-resolution Zoom Lens

Optical Magnification Ratio

0.7X~4.5X

Working Distance（WD）

88±2mm

Optical Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

Depth of Field（DOF）(mm)

2.04

1.05

0.50

0.30

0.20

0.15

0.11

0.09

0.07

N.A.

0.028

0.038

0.053

0.066

0.079

0.09

0.101

0.112

0.122

F.NO.

12.46

13.13

14.14

15.16

15.86

16.71

17.35

17.84

18.32

Resolution (μm)

11.98

8.83

6.33

5.08

4.25

3.73

3.32

3.00

2.75

TV Distortion(%)

<0.02

<0.02

<0.02

<0.02

<0.02

<0.03

<0.04

<0.05

<0.06

Sensor Size

1”

Connector

C - type

Zooming method

Manual and Electric

Total length

264mm
