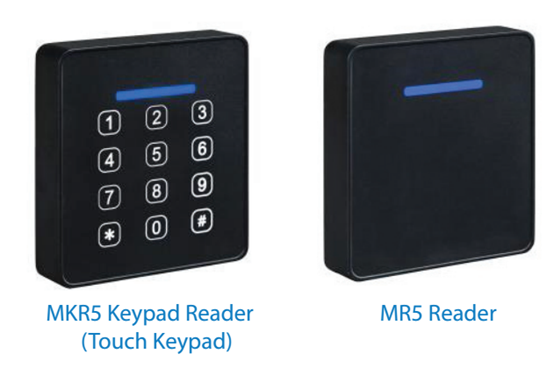

MR5 Reader and MR5 Keypad Reader are designed with a sleek,
modern look and come equipped with IP65 weatherproof protection.
Both readers support Wiegand and OSDP v2 Protocols to ensure
flexibility and compatibility with a wide range of systems.
OSDP v2 allows encrypted communication between readers and hosts,
providing enhanced security.
Configure and update readers directly from your control system
without disconnecting or uninstalling devices.

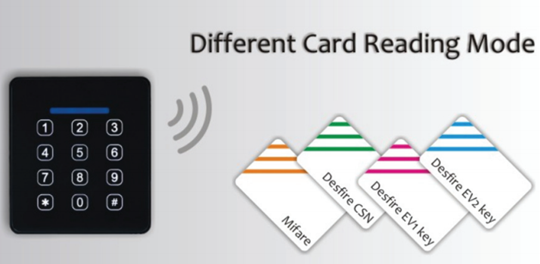

Micro ID OSDP v2 readers utilize MIFARE DESFire technology,
making it easy to integrate into existing MIFARE systems without hassle.
Micro ID's MR5 Card Reader is the ideal choice for a secure, modern,
and efficient access control solution, suitable for any environment.
Features
| RFID card type | Mifare / Desfire / NFC / BLE | Card collision algorithm | Yes |
| Frequency | 13.56 Mhz | Self-diagnostic | Yes |
| Power consumption | 90mA @ 12VDC | Surge protection | Yes |
| Communication | Wiegand 26/34, OSDP | Buzzer | Yes |
| LED | Red / Blue / Green | Power requirement | DC 9~24V (200mA) |
| Transmit distance | WG: 100m / OSDP: 1000m | Operation temperature | -40 ~ 70°C |
| Built-in watch dog | Yes | Operation humidity | 5% ~ 80% RH |

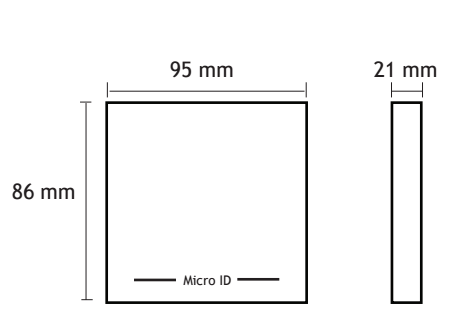

| IP65 rated weatherproof | Yes | Dimension | 86 x 95 x 21 mm |
