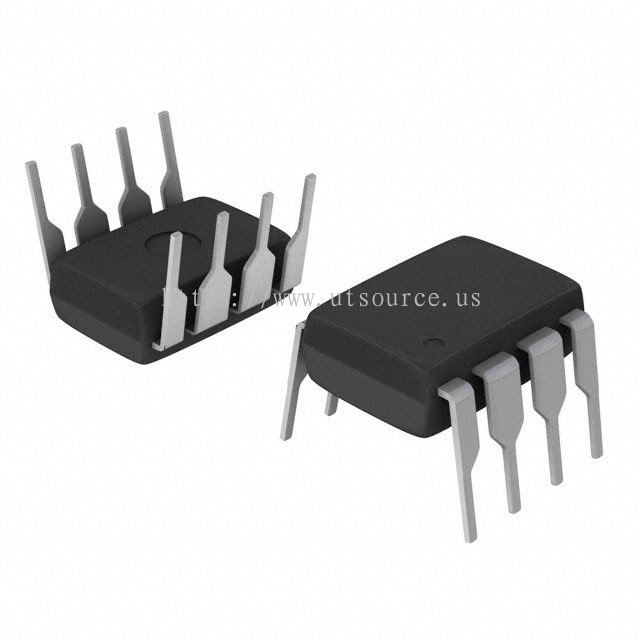

24C65/P

BUY 24C65/P https://www.utsource.net/itm/p/11653474.html

Instructions for Using 24C65/P EEPROM

1. Power Supply:

   • Ensure the operating voltage (V_CC) is within the range of 1.8V to 5.5V.
   • The device can operate over a wide temperature range from -40°C to 85°C.

2. Memory Organization:

   • The 24C65/P has a memory capacity of 8192 bytes organized as 1024 pages of 8 bytes each.

3. Write Operations:

   • A write cycle takes up to 5 milliseconds.
   • Page writes also take up to 5 milliseconds.
   • Do not perform any read or write operations during the write cycle time.

4. Read Operations:

   • Access time is 0.35 microseconds, ensuring fast data retrieval.

5. Current Consumption:

   • In standby mode, the current consumption is typically 1 μA.
   • In active mode, the current consumption is typically 3 mA.

6. Communication:

   • The device supports I2C communication with a clock frequency (f_SCL) of up to 400 kHz.

7. Storage:

   • Store the device in temperatures ranging from -65°C to 150°C when not in use.

8. Handling:

   • Handle the device with care to avoid static damage.
   • Follow proper ESD (Electrostatic Discharge) precautions during handling and installation.

9. Programming:

   • Use appropriate I2C programming protocols to read from and write to the memory.
   • Ensure that the device address is correctly configured for communication.

10. Error Handling:

    • Monitor the status of write cycles to ensure successful completion.
    • Implement error-checking mechanisms to handle any communication failures.
