SDM-320-TVL2 / SDM-320-THL2
Specifications
| Model | SDM-320 | ||
| Displacement |
L/min （50/60Hz） |
315/380 | |
|
Ultimate pressure |
Pa | ≦ 3 | |
| Motor output | kW | 0.4 | |
| Voltage | V |
Three phase |
200,220 |
| Noise level | dB（A） |
57 （At air flush 62） |
|
| Leak tightness | Pa・m3/s | ≦ 1.0x10-5 | |
|
Ambient temperature |
℃ | 5 〜 40(Indoor) | |
| Weight | kg | 37 | |
|
Water vapor capacity |
g/day |
25 （At air flush） |
|
| Air flush | L/min | 10 | |

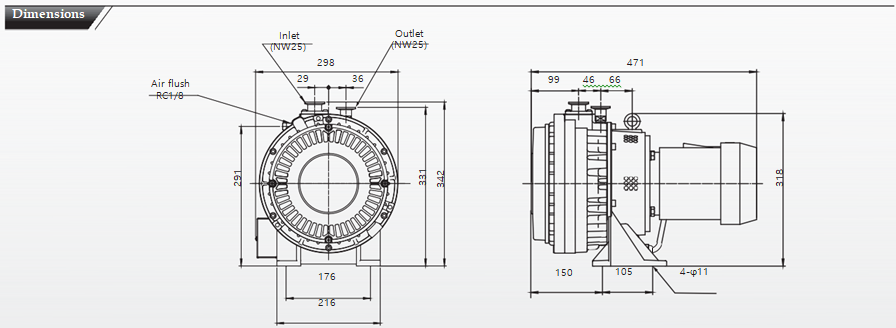

| Dimensions | mm |
L471 × W323 × H318 （L471 × W298 × H342） |
|
| Inlet connection | NW25 | ||
| Outlet connection | NW25 | ||
| Cooling Method | Air-cooled | ||
| Standard Accessories |
Air Flush Attachment, Hour Meter |
||
Malaysia
