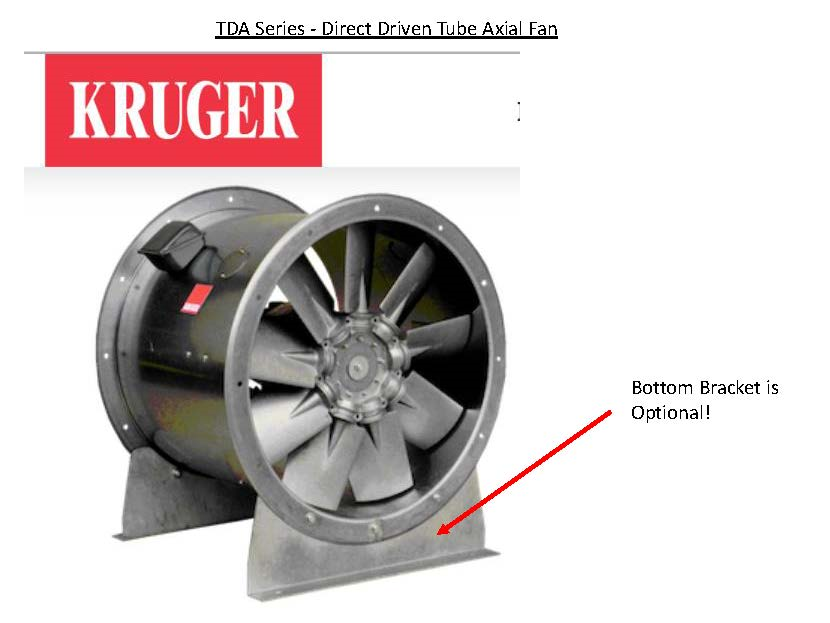

Kruger TDA Series - Direct Driven Tube Axial Fan

Kruger TDA Series - Direct Driven Tube Axial Fan

Reversible Explaination

Actually this same as our normal axial fan TDA model. Just that if reversible type, we will need higher safety margin in order to achieve the required airflow & static.
For example, if they asking for 1000CFM @ 1inch, our selection is higher than this to make it reversible type, cause there will some losses for reversible type.

Model

KRUGER TDA-M 560/5/32.5/5ZL/ALU 3500CFM @ 0.5''WG 0.75 (IE1) KW / 4P / F (2211572GY-01) (W/O BRACKET)

KRUGER TDA 1000/14AA/9-9/20 62000CMH @ 12mmWG 15 (IE1) KW / 4P / CLASS F Fan (Replaced:TDA-M 1000)
KRUGER TDA 355/9AA/5-5/18 510CFM @ 0.26''WG 0.37 (IE1) KW / 4P / F (IP55) (415V/3PH/50HZ)(RPM:1450) (230311GY-1) (W/O BRACKET)

KRUGER TDA 400/9AA/5/16 0.37 (IE1) KW / 4 Pole / Class H (W/O BRACKET)

KRUGER TDA 450/12AA/7-7/34/PPG [email protected]''WG 0.37 (IE1) KW / 4P / CLASS F (IP55) W/O SPRING ISOLATOR (415V/3PH/50HZ)(RPM:1345) (W/O BRACKET)

KRUGER TDA 450/9AA/5-5/18 0.37 (IE1) / 4P / CLASS F (W/O BRACKET)

KRUGER TDA 500/12AA/7-7/16 0.37 (IE1) / 4P / CLASS F (W/O BRACKET)

KRUGER TDA 500/12AA/7-7/24 2000CFM @ 0.8''WG 0.55 (IE1) KW / 4P / CLASS F (W/O BRACKET)(2306398GA-1)
KRUGER TDA 500/12AA/8-8/34 3500CFM @ 0.5''WG 1.1 (IE1) KW (1.5HP) / 4P / CLASS F (W/O BRACKET & SP. ISOLATOR)

KRUGER TDA 500/9AA/5-5/20/F 2.2KW(IE1)/2P/CLASS H FAN ONLY (415V/3PH/50HZ)(RPM:2850)(7650CFM)(FIRE RATED)(W/O BRACKET)

KRUGER TDA 560/12AA/5-5/26 [email protected]''WG 0.75 (IE1)KW/4P/CLASS F (1PH) (W/O BRACKET)

KRUGER TDA 560/12AA/7-7/38 7000CFM @ 0.4''WG 1.5 (IE1) KW / 4 Pole / Class F (W/O BRACKET)

KRUGER TDA 560/9AA/7-7/28  5500CFM @ 0.4''WG  0.75 (IE1) KW / 4 Pole / Class F (W/O BRACKET)

KRUGER TDA 630/9AA/7-7/12 0.55 (IE1) KW / 4P / CLASS F FULL FAN SET (C/W SPRING ISOLATOR)

KRUGER TDA 630/12AA/7-7/16/F 1.1/0.28 (IE1) KW / 4/8P / CLASS H (IP55) (W/O SPRING ISOLATOR) (W/O BRACKET)(2310422 GA-1)

KRUGER TDA 630/14AA/5-5/16 4,000CFM @ 0.8''WG 1.1(IE1) KW/4P/CLASS F (C/W SPRING ISOLATOR) (W/O BRACKET)

KRUGER TDA 630/12AA/9-9/14 0.75 (IE1) KW / 4P / CLASS F (C/W SPRING ISOLATOR) (W/O BRACKET) 2308163GA-01
KRUGER TDA 630/12AA/9-9/24 6000CFM@1''WG 1.5 (IE1) KW / 4P / CLASS F (W/O SPRING ISOLATOR) (W/O BRACKET) 2510027 JA-1

KRUGER TDA 710/12AA/9-9/20 4,500CFM @ 1.5''WG 2.2 (IE1) KW(3HP)/4P/CLASS F (W/O BRACKET)(2509218GP-1)

KRUGER TDA 800/14AA/8-8/28 (AL-ALU. BLADE MAT) 5.5 (IE1) KW / 4P / CLASS F (W/O MOTOR) (W/O BRACKET)

KRUGER TDA 900/14AA/7-7/12 (AL-ALU. BLADE MAT) 4.0 (IE1) KW / 4P / CLASS F ((W/O BRACKET)

KRUGER TDA 1000-V/14AA/12-12/6 7.5 (IE1) KW/4P/CLASS F (20,000CFM@300PASCAL) (C/W SPRING ISOLATOR)(C/W MOUNTING)

KRUGER TDA 1000/14AA/12/20 (L) 15 (IE1) KW/4P/CLASS F (33,882CFM@254PASCAL) (C/W SPRING ISOLATOR)(C/W MOUNTING)

KRUGER TDA 1000/14AA/9/18/F 11 (IE1) KW/4P/CLASS H ( CFM@ PASCAL)(W/O SPRING ISOLATOR)(C/W MOUNTING FEET)

KRUGER TDA 1000/14AA/7-7/6 3 (IE1) KW / 4P / CLASS F (12,000CFM@1''WG) (C/W SPRING ISOLATOR)

KRUGER TDA 1120/20BI/6/20 22KW(IE1)/4P/CLASS F(63875CMH@440PA)(C/W SPRING ISOLATOR)(C/W MOUNTING FEET)

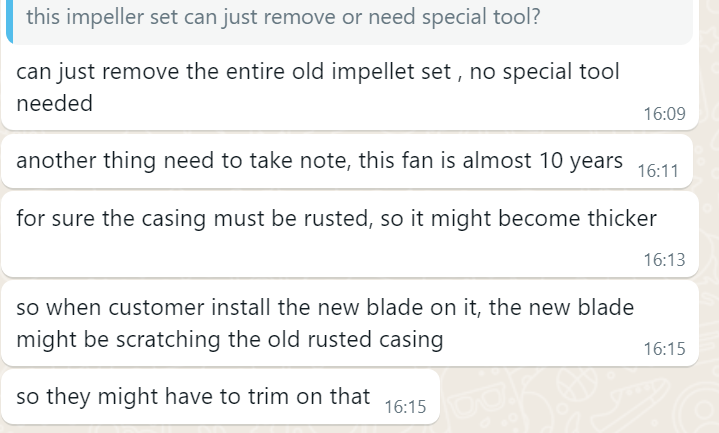

Removal Of Impeller Fan (TDA 1000)

All impellers are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

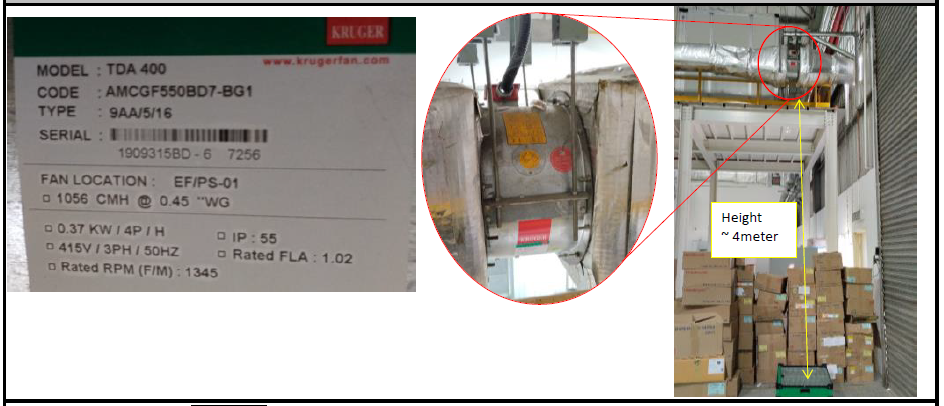

Actual Installation
