Torque Motor SDM160-024
Torque Motor SDM160-024



Torque Motor SDM160-024

SEM Equipment Sdn. Bhd. flag
分类: SERVOTOP 当前有货
欲了解更多详情，请游览我们的官方网站 sem-eq.com
游览官方网站 联络我们
详情




Model : SDM160-024

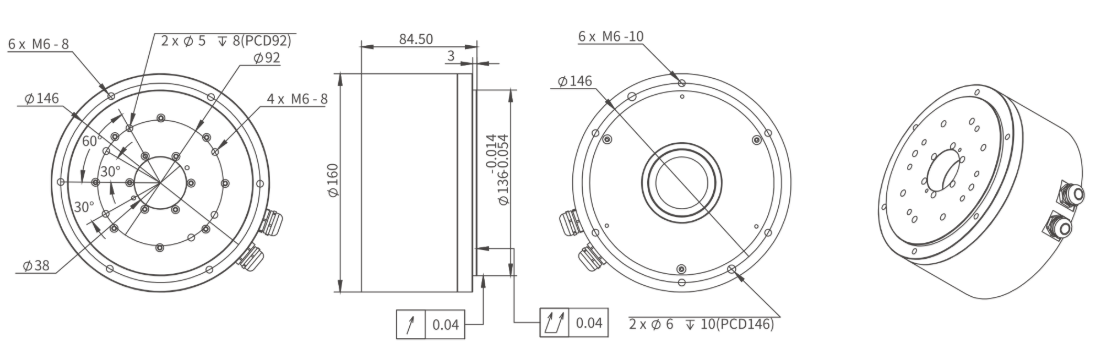

Dimension :






Specifications :

Model parameters Unit STP-SDM160-02411A31N-L005T-S05
Continuous torque ≥ Nm 12
Peak torque ≥ Nm 24
Continuous speed ≥ rpm 120
Peak speed ≥ rpm 200
Number of poles PCS 40
Continuous current Arms 2.8
Thrust constant≥ Nm/Arms 4.28
Peak current Arms 8.4
Resistance ohm 9
Inductance mh 52.5
Absolute accuracy arcsec ±30
Repeat accuracy arcsec ±4
Axial force N 1200
Radial force N 400
Coil maximum temperature °C 155
Quality kg 7.3
Moment of inertia of mover kg × m² 0.0065
