Specifications
- Accuracy: Up to 0.04 mm
- Interface: USB 3.0
- Special Feature 1: 3 Types of Light Sources
- Special Feature 2: Scanning Speed 4,500,000 points/s
- Large Scan Area: 1100mm × 1000 mm
- Resolution: 0.05mm
详情
3DeVOK MT Professional 3D Scanner
The 3DeVOK MT Professional 3D Scanner is a high-precision, industrial-grade 3D scanner engineered for professionals who require accuracy, speed, and versatility. This advanced 3D scanner uses multi-light source technology—combining blue laser lines, infrared lasers, and structured light—to deliver ultra-fast and accurate 3D scanning results. Whether you're working in reverse engineering, product development, or heritage preservation, this 3D scanner is built to meet your demanding 3D digitization needs.
Applications of the 3DeVOK MT 3D Scanner
The 3DeVOK MT 3D Scanner is designed to meet the needs of a wide range of industries:
Reverse Engineering: Use the 3D scanner to capture complex components and recreate CAD models with high accuracy.
Product Design & Prototyping: Perfect for industrial designers and engineers who need a 3D scanner for fast, iterative prototyping.
Quality Inspection: The 3D scanner allows precise measurement and inspection of manufactured parts, ensuring they meet design specifications.
Cultural Heritage Preservation: Museums and researchers use this 3D scanner to digitize statues, fossils, and artifacts in high resolution.
Medical Applications: The 3D scanner is capable of capturing detailed anatomical shapes for orthotics, prosthetics, and surgical planning.
Education & Research: Academic institutions rely on the 3D scanner for data-driven research and 3D visualization in classrooms and labs.
Features of the 3DeVOK MT 3D Scanner

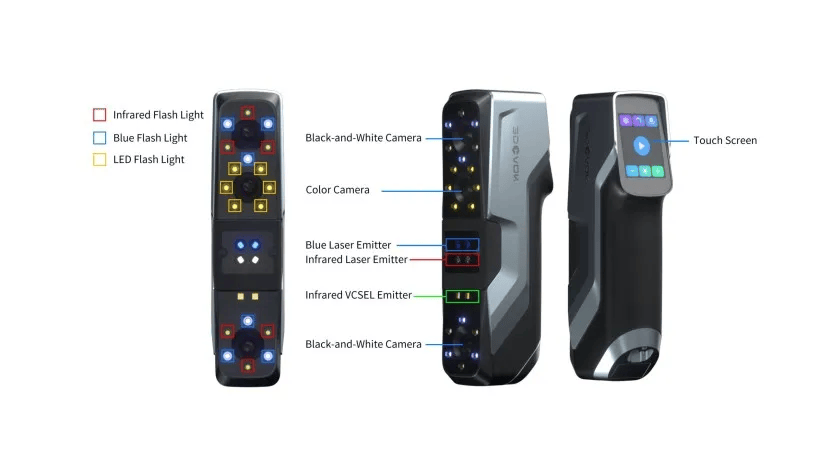

1. Multi-Light Source Technology
The 3D scanner uses 34 blue laser lines, 22 infrared laser lines, and VCSEL structured light for high-accuracy and marker-free scanning across a variety of materials and surfaces.
2. Exceptional Accuracy
With a scanning accuracy of up to 0.04 mm and a resolution of 0.05 mm, the 3D scanner captures fine details with incredible precision.
3. Ultra-Fast Scanning
This 3D scanner delivers a scanning speed of up to 4.5 million points per second, optimizing workflow and reducing scan time.
4. Wide Scanning Area
The 3D scanner supports a large scanning area of up to 1100 mm × 1000 mm—perfect for small to medium-sized parts and complex geometries.
5. Flexible Alignment Modes
Includes hybrid, marker, texture, and geometric feature alignments to adapt to different 3D scanning scenarios.
6. Color 3D Scanning
Capture high-definition textures and colors with the 3D scanner’s full-color scanning functionality—ideal for visual-rich applications.
7. Intuitive Software Integration
Comes with powerful 3DeVOK Studio software, allowing users to process, edit, and export 3D scan data quickly and easily.
Technical Specifications
| Product Brands & Models |
3DeVOK MT |
| Light Sources |
34 Blue Laser Lines |
22 Infrared Laser Lines [invisible] |
Infrared VCSEL Structured Light [invisible] |
| Class of Lasers |
Class Ⅱ (Eye-safe) |
Class Ⅰ (Eye-safe) |
| Scan Mode |
Blue Line Laser |
Infrared Line Laser |
Infrared Linear-array Structured Light-Speckle |
| (Supports markerless scanning) |
(Supports markerless and invisible-light scanning) |
(Supports markerless, invisible light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV) |
| Basic Accuracy |
Up to 0.04 mm |
| Volumetric Accuracy |
Up to 0.04 mm + 0.06 mm/m |
| Point Distance |
0.05 – 5 mm |
0.1 – 5 mm |
Regular Scan: 0.2-5 mm |
| Fine Scan: 0.1-5 mm |
| Alignment Mode |
Hybrid Alignment (Marker&Texture&Geometric features), Marker Alignment, Texture Feature Alignment and Geometric Feature Alignment |
Hybrid Alignment (Marker&Texture&Geometric features), Texture Feature Alignment and Geometric Feature Alignment |
| Ability to Capture Texture |
Yes |
| Scanning Distance |
150 – 1000mm |
150 – 1500mm |
| Field of View |
140 mm × 140 mm – 490 mm × 490 mm |
50 mm × 75 mm – 1100mm × 1000mm |
| Scanning Speed |
Up to 3,300,000 Points/s |
Up to 2,450,000 Points/s |
Up to 4,500,000 Points/s |
| Output Formats |
*.obj, *.stl, *ply, *.asc, *.mk2,*.txt,*.epj,*.apj,*.spj,*.map, *sk |
| The Ability for 3D Printing |
Supports .stl, .obj and other formats |
| Working Temperature Range |
0 – 40 ℃ |
| Working Humidity Range |
10% – 90% RH (Non-condensing) |
| Interface |
USB 3.0 |
| Scanner Dimensions & Weight |
Dimensions: 215 mm × 73 mm × 53 mm; Weight: 640 g |
| Power Source |
DC: 12 V, 5.0 A |
| Certifications |
CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC |
| Recommended Configurations for PC |
OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above; |
| Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above |
| It is the results of the laboratory’s theoretical accuracy test, which belong to uncertainty errors. |
