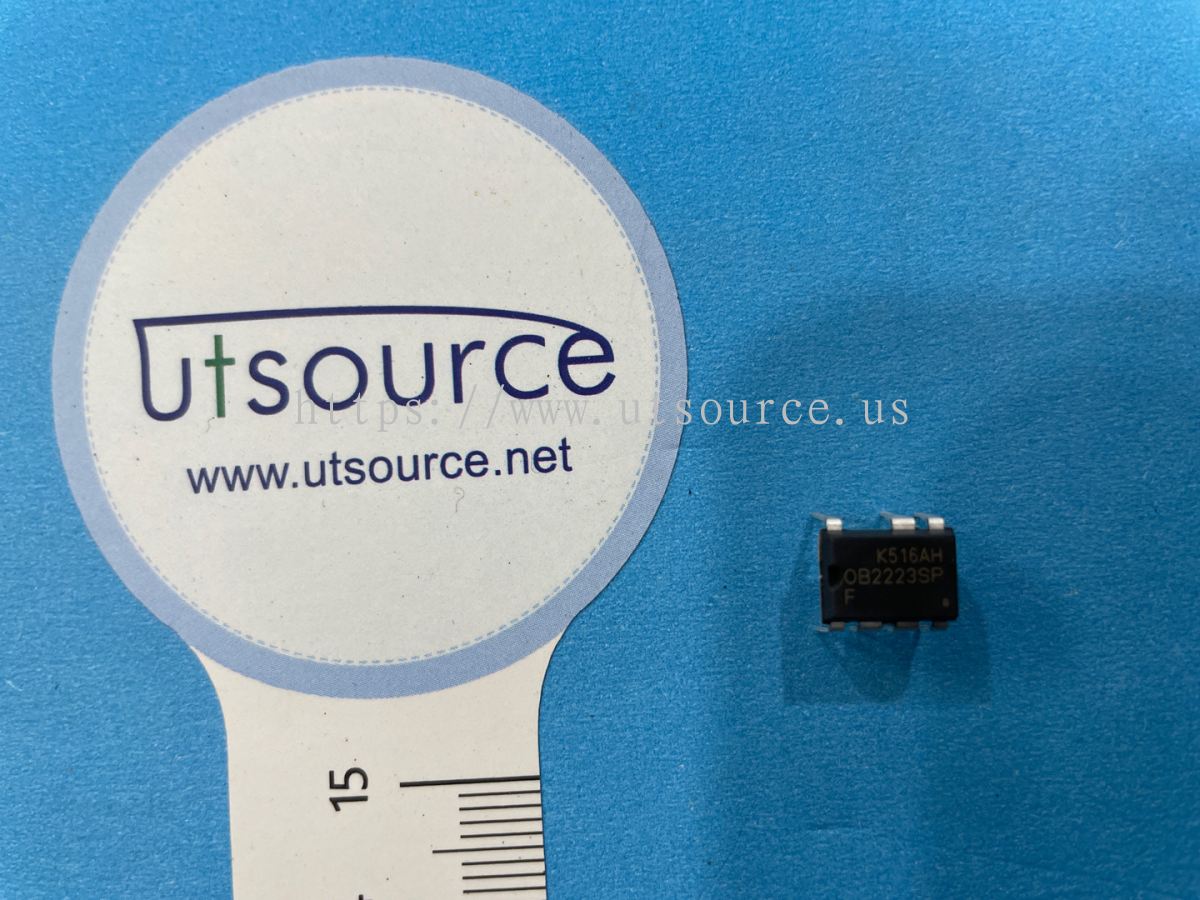

OB2223SP: 马来西亚的首选 Utsource Holding Company Limited

详情

BUY OB2223SP https://www.utsource.net/itm/p/9460372.html

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Supply Voltage	Vcc	4.5	-	5.5	V	Operating voltage range
Standby Current	Isb	-	0.1	-	μA	Current consumption in standby mode
Output Current (Sink)	IOL	-	20	-	mA	Maximum output current when sinking
Output Current (Source)	IOH	-	10	-	mA	Maximum output current when sourcing
Input Voltage (High)	VIH	-	3.5	-	V	Minimum input voltage for high logic level
Input Voltage (Low)	VIL	-	1.5	-	V	Maximum input voltage for low logic level
Propagation Delay Time	tpd	-	10	-	ns	Time delay from input to output
Storage Temperature	Tstg	-40	-	85	°C	Temperature range for storage
Operating Temperature	Topr	-40	-	85	°C	Temperature range for operation

Instructions for Use

Power Supply:
- Ensure the supply voltage (Vcc) is within the specified range of 4.5V to 5.5V.
- Connect the Vcc pin to a stable power source.
Standby Mode:
- The device consumes approximately 0.1 μA in standby mode. Ensure that the input signals are properly managed to avoid unnecessary power consumption.
Output Current:
- The device can sink up to 20 mA and source up to 10 mA. Design your circuit to stay within these limits to avoid damage.
Input Logic Levels:
- For a high logic level, the input voltage (VIH) should be at least 3.5V.
- For a low logic level, the input voltage (VIL) should not exceed 1.5V.
Propagation Delay:
- The typical propagation delay time (tpd) is 10 ns. This is the time it takes for the output to respond to a change in the input signal.
Temperature Considerations:
- The device can operate within a temperature range of -40°C to 85°C.
- Store the device in a temperature range of -40°C to 85°C to ensure long-term reliability.
Handling:
- Handle the device with care to avoid static discharge, which can damage the internal components.
- Follow proper ESD (Electrostatic Discharge) precautions during handling and installation.
Mounting:
- Ensure proper soldering techniques are used to avoid thermal shock and mechanical stress.
- Use a heat sink if necessary to manage thermal dissipation, especially in high-current applications.
Testing:
- Before finalizing the design, test the device under various operating conditions to ensure it meets the required specifications.
Compliance:
- Ensure that the device complies with all relevant safety and regulatory standards for your application.

(For reference only)
