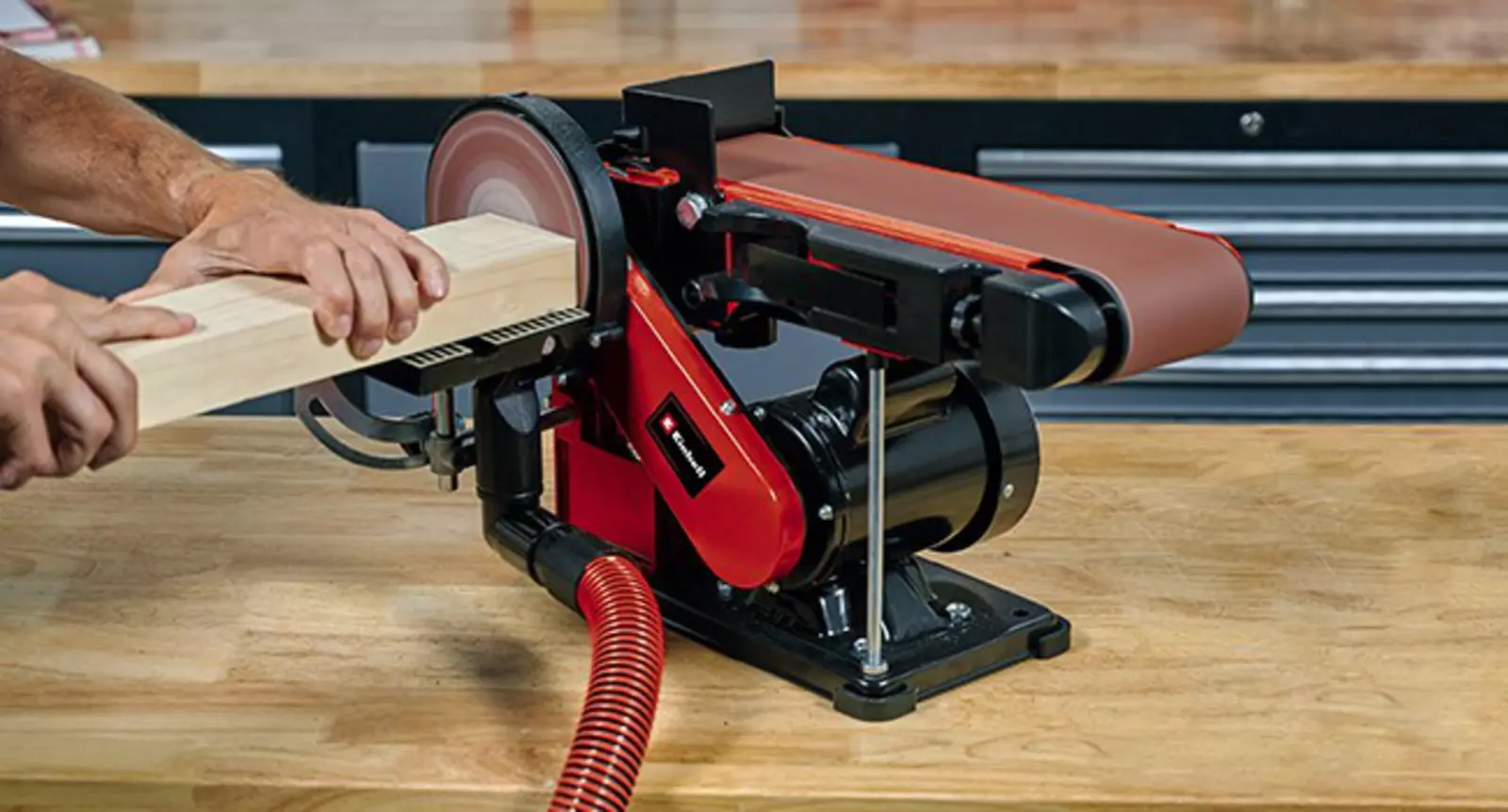

The Einhell stationary belt disc sander TC-US 380 is a 380 W tool with belt and disc sanding functions, and has a pivotable belt sanding device with workpiece stop. The clamping device ensures simple and uncomplicated sanding belt change, and the sanding belt centring can be adjusted from the outside. The disc sander with a diameter of 150 mm is equipped with hook and loop fastening for quick sanding belt change. The tiltable aluminium support table is sturdy and torsion-free, can be used on the sanding pad belt and is equipped with an easy-to-read angle scale for versatile applications. The transverse stop can also be pivoted from -60° to +60° degrees. Four sturdy rubber feet damp vibrations and ensure firm and secure standing. A connection for dust extraction for a clean workplace is available on the stationary belt disc sander. Delivery includes sanding belt and disc sandpaper.
| Model | TC - US 380 |
| Idle speed sanding pad max. | 1500 min^-1 |
| Max. swivel range (sanding belt) | 90° |
| Max. swivel range (work support) | 60° |
| Min. swivel range (work support) | 0° |
| Motor type | Induction motor |
| Product weight | 13.25 kg |
| Sanding belt grain | 80 |
| Sanding belt length | 914 mm |
| Sanding belt speed max. | 292 m/min |
| Sanding belt width | 100 mm |
| Sanding pad diameter | 150 mm |
| Suction connection diameter | 36 mm |
| Transverse stop max. | - 60° |
| Transverse stop min. | 60° |
.jpg) |
 |
 |
 |
| Variable Workpiece Supports | Flexible Work Support | Secure Standing | Clean Working Space |
|

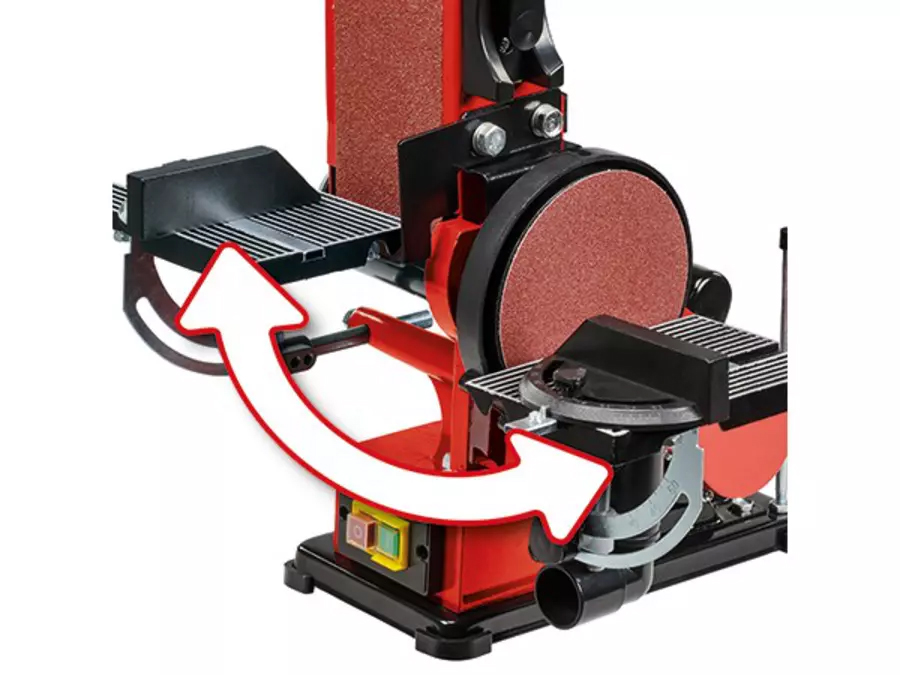

The extra-large workpiece supports can be adjusted and adapted depending on the workpiece and the work required. |

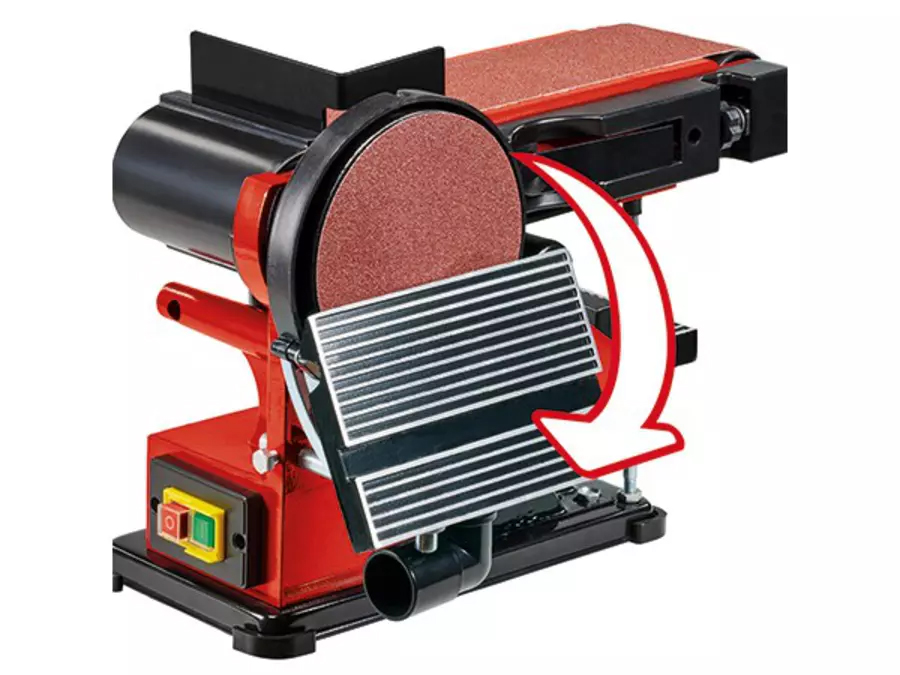

The large work support is removable, can be attached to the sanding belt or sanding pad and can be pivoted up to 45. |

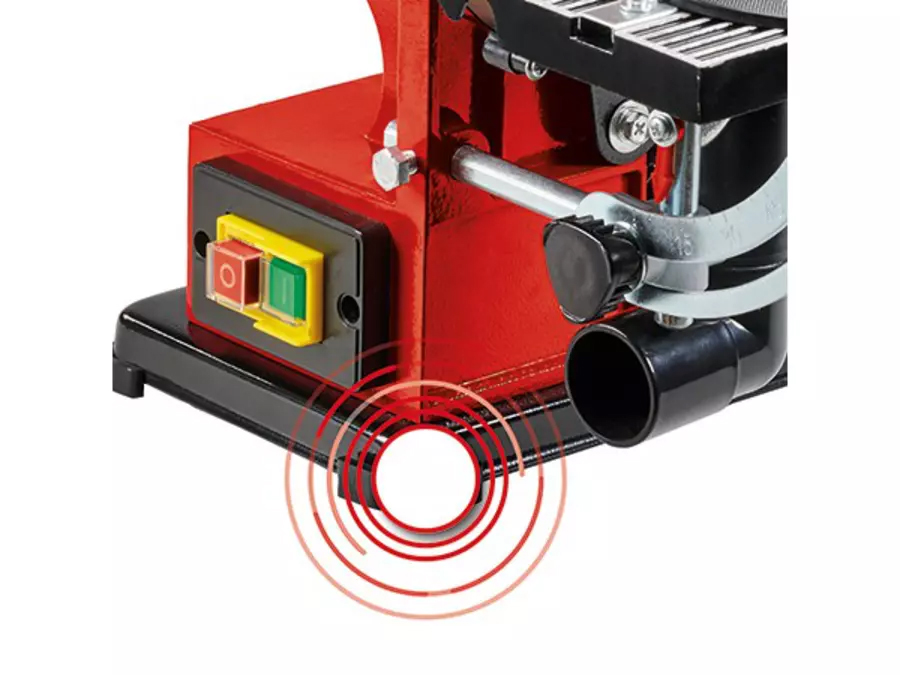

For precise results, the rubber feet ensure secure standing and compensate for the vibrations of the device. |

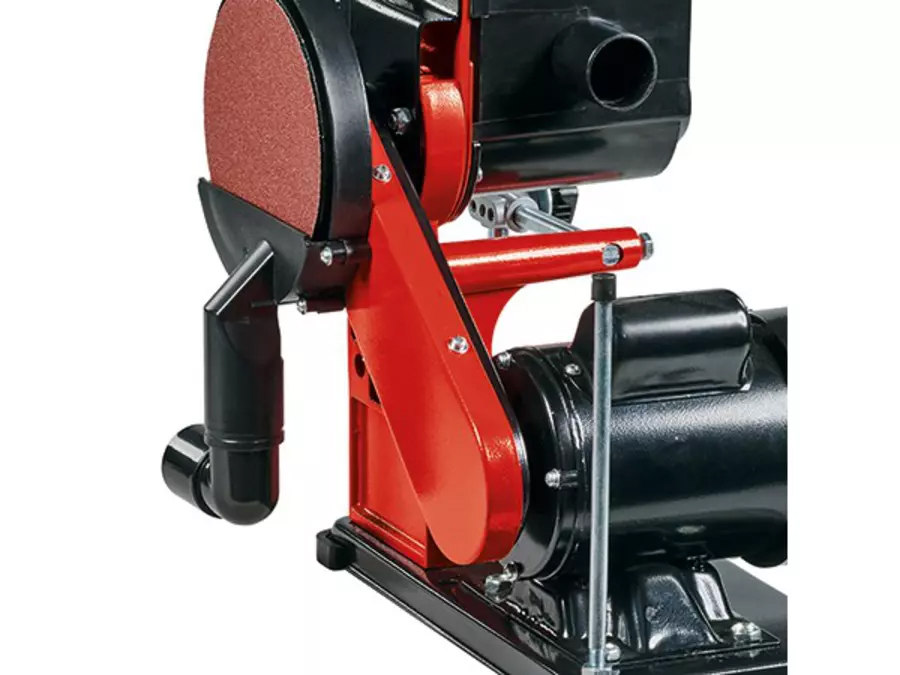

To ensure that the work erea remains clean at all times, various devices for dust extraction can be connected to the extraction connection (Ø 36 mm) |
 |
 |
| Sanding Belt for Large Areas | Sanding DIsc for Detailed Work |

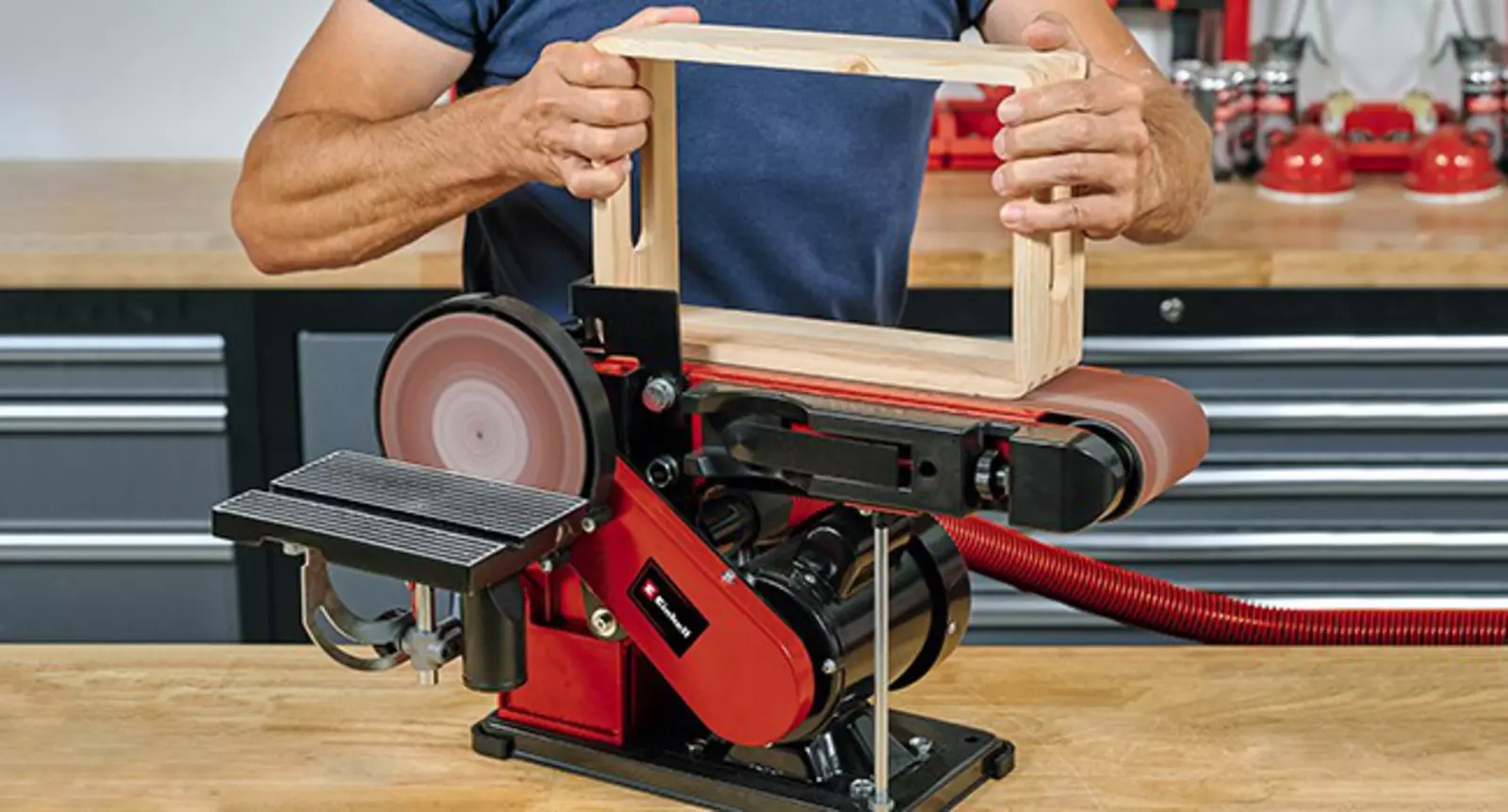

| With the help of the 100 mm wide and 914 mm long sanding belt, even large workpieces can be sanded without any problems. The sanding belt reaches a maximum speed of up to 292 m/min. | When it comes to detailed work or smaller sanding surfaces, the disc sander with an idle speed of 1450 rpm minute comes into its own, Sanding pads with a diameter of 150 mm can be used. |
 |
 |
 |
 |
| Hook & Loop Fastening | Pivoting Sanding Belt | Easy Sanding Belt Change | Including Accessories |
|

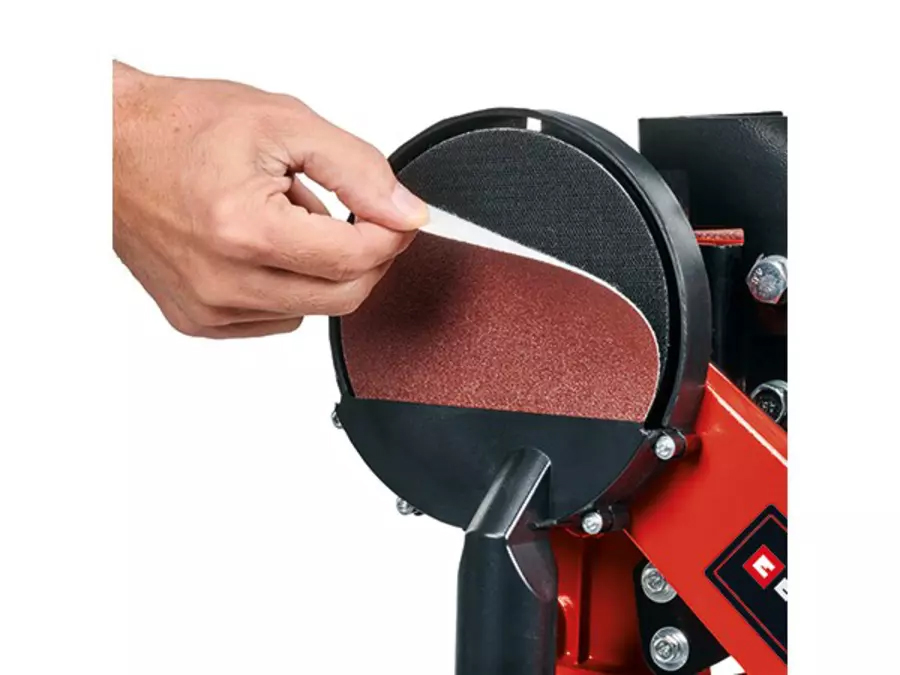

The disc sander with a diameter of 150mm includes hook and loop fastening for quick and easy sanding pad replacement. |

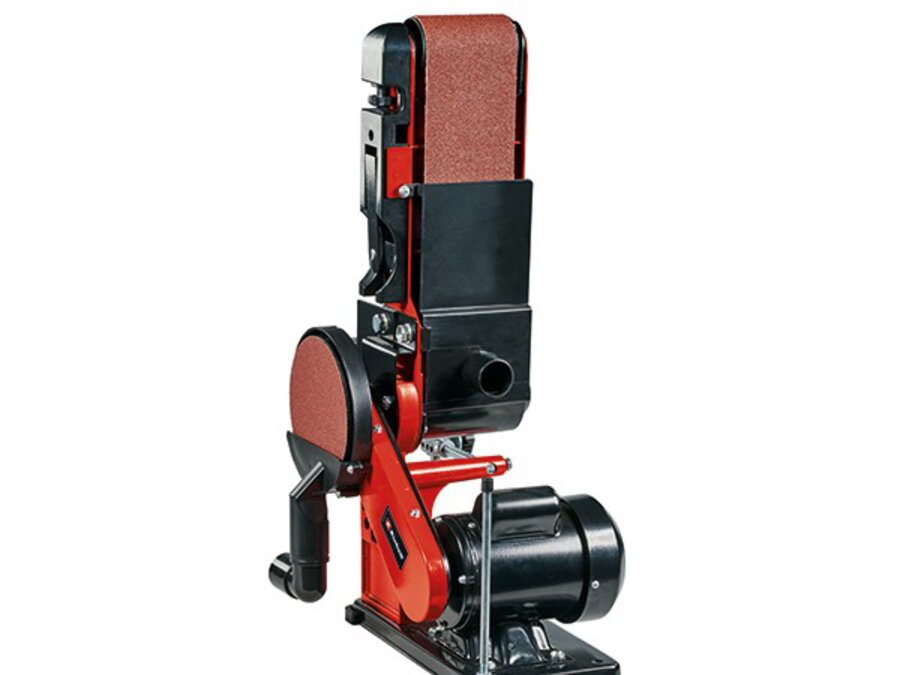

To adapt optimally to any task, the pivotable sanding belt can be positioned bothe horizontally and vertically. |

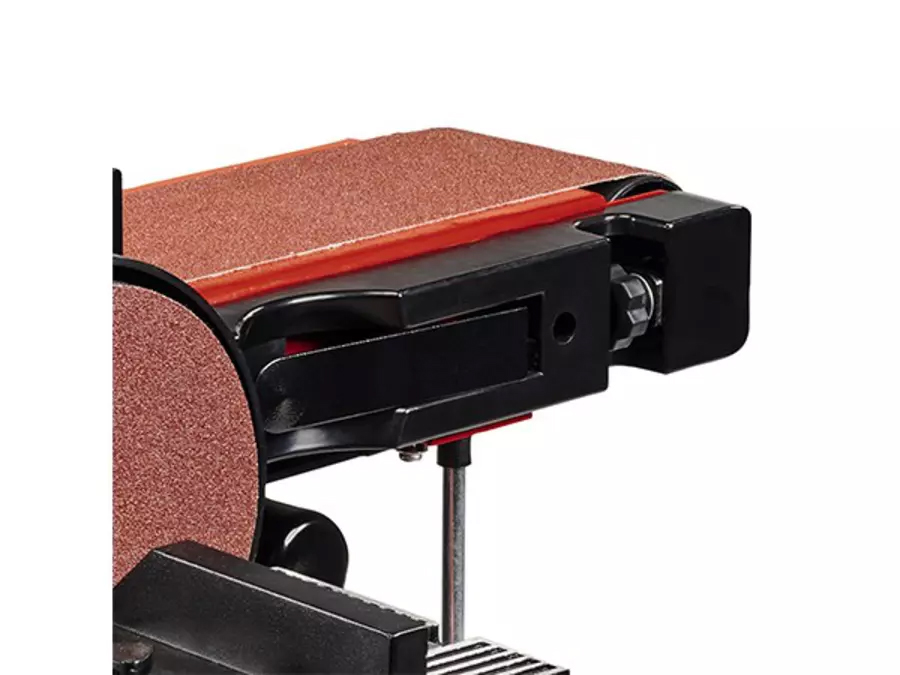

The belt run can be adjusted or changed quickly and easily thanks to the tool-free sanding belt centring. |

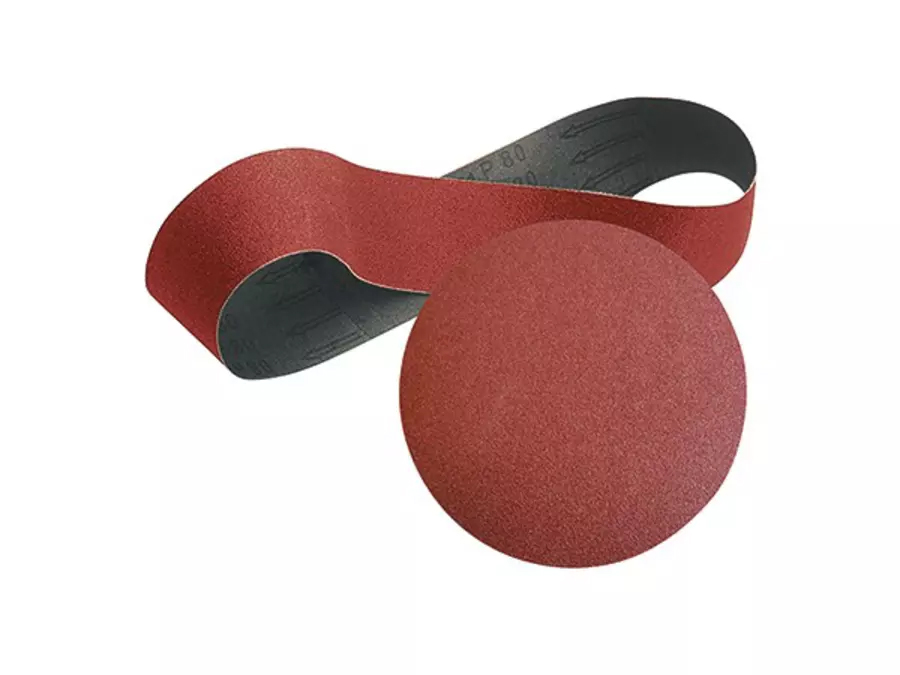

So that you can get started right away, the stationery belt disc sander is supplied with 1 x sanding belt (K80) and 1 x disc sandpaper (K80). |
