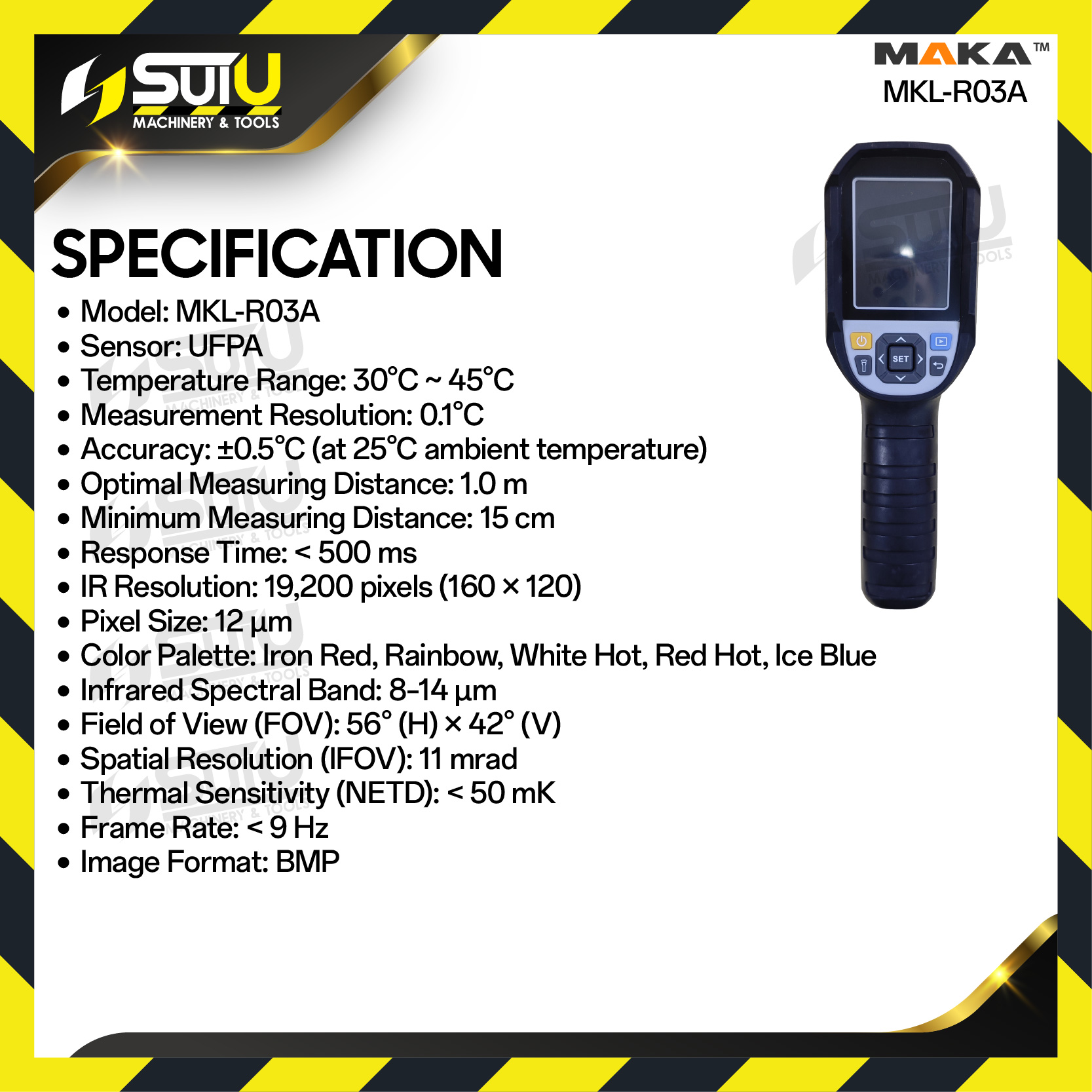

+PSPECIFICATIONS+P
- Model : MKL-R03A
- Sensor : UFPA
- Temperature Range : 30C ~ 45°C
- Measurement resolution : 0.1°C
- Accuracy : ± 0.5°C (at 25°C ambient temperature)
- Optimal measuring distance : 1.0M
- Minimum Measuring Distance : 15cm
- Response Time : <500ms
- IR Resolution : 19,200 Pixels (160 x 120)
- Pixel size : 12µm

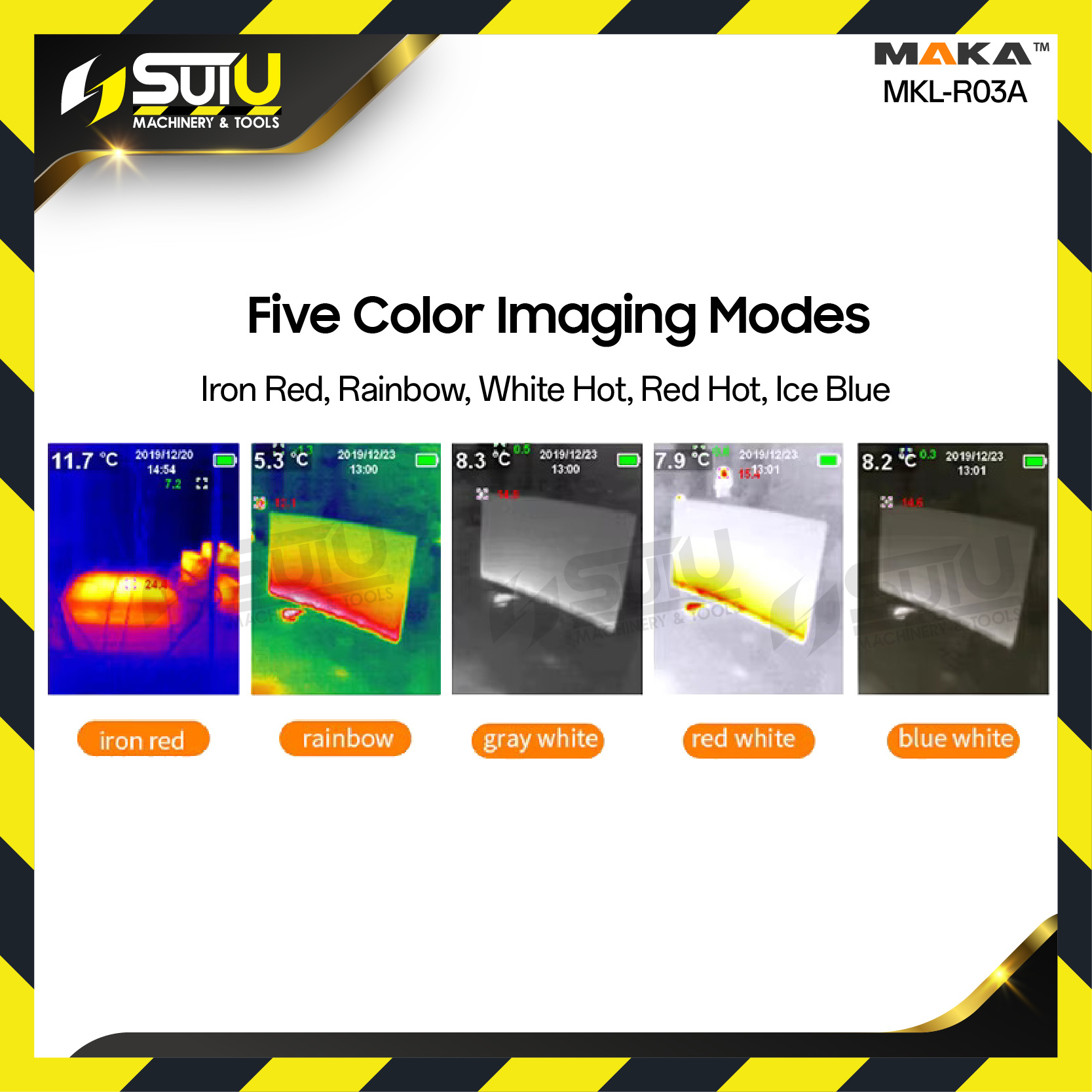

- Color palette : Iron red, rainbow , white hot , red hot , ice blue
- Infrared Spectral Band : 8-14µm
- Field of view (FOV) : 56° (H) x 42° (V)
- Spatial Resolution (IFOV) : 11 mrad
- Thermal sensitivity (NETD) : < 50mK
- Frame rate : <9hz
- Image format : BMP
