Description

SOYAL AR331HS
STYLISH SLIM READER

-SilverBlack Series (RS485)
-Maximum users : 3000
-Weatherproof
-No keypad
-EM or Mifare

AR331HS is a card access reader typically installed at door to restrict unauthorized access.
It reads EM Proximity or Mifare card.
It supports an RS485 connection, 3000 users and 1500 event memory.
It does not have a built-in keypad.
Slim design to easily fit into a narrow door frame

Choosing a good access reader that looks nice will enhance your visitor’s
first impression of your company while keeping all your staff safe inside.
AR331HS Silverblack’s modern contemporary design easily alleviates the stylish perception
of your door entrance. The reader looks more elegant without a numeric keypad

Weatherproof

You can install AR331HS outdoor.
The rubber seal around the reader is protecting the reader up to IP56

More secure

Built-in tamper-proof function to alert you on software if someone removed
or vandalize the reader. The alarm function will alert you with an external buzzer
if the door is not fully closed or someone opens the door by force without flashing a valid card.
AR331HS uses a patented anti-vibration relay design that prevents intruders to open
your door by just knocking hard onto the reader.

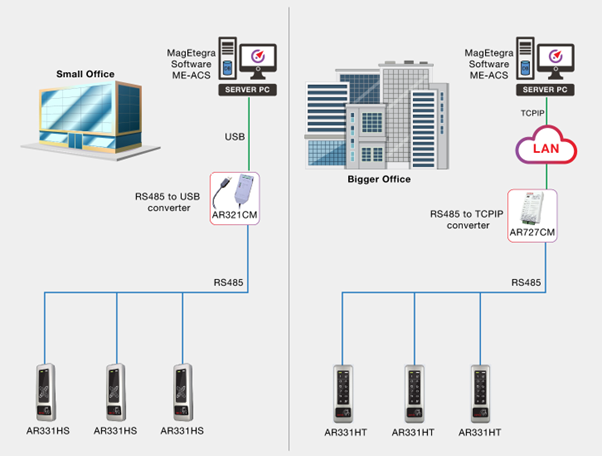

Flexible connection to suit you

To make it simpler, you can loop multiple AR331HS readers to the USB port of the PC
using AR321CM (RS485-USB converter) in a small office or guardhouse setup.
In a bigger office environment, you can loop multiple
AR331HT readers to the Local Area Network using AR727CM (RS485-TCPIP converter).
Which one you like, USB or network ?

Save money on wiring

AR331HS supports RS485 data connection. An example of the RS485 looping method benefit
is that you only need 1 wire to loop all 10 readers instead of having 10 separate wires back to the PC,
Local Area Network or multi-door controller. The more readers you have,
the more saving you will get. The RS485’s 9600 baud rate is more than enough
to support the simple data transmission of each reader .

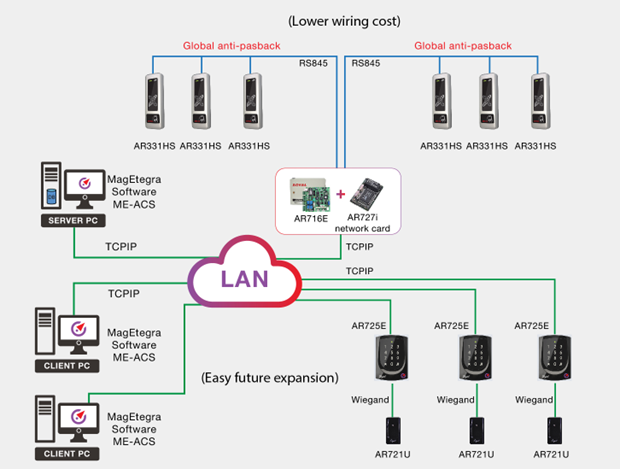

Only pay for what you need

When the office is still small, multiple individual AR331HS can be looped together
to achieve lower cost solution up to 3000 users. As the business grows,
you just need to add an AR716E multi-door controller
at a later stage to upgrade to 16,000 users and global anti-pass back.

If you are unable to trace existing RS485 loop wiring to add more AR331HS,
you can also add AR725E to the nearest network point and still use back the same software.
There is no need to replace all existing AR331HS readers so that you can save money
as you expand the system to support your growing business.

Never lose your data

In the event of a network breakdown, an all-access event will be automatically stored
inside the reader’s memory for up to 1500 transactions.
All data will be uploaded back to the multi-door controller or software upon resuming network connection.

Advance security made simpler

MagEtegra software suite consists of ME-ACS and ME-VMS to manage tenants and
visitors respectively for door access, parking access, lift access and time attendance.
The simplified free Lite version of ME-ACS software is perfect for small offices.
The Standard and Pro-Basic version is good for mid-big size offices or factories.
The Pro-Advance version will be powerful enough to manage the entire building.

Up and running most of the time

Prolonged downtime will give an opportunity for an intruder to exploit the momentary security loophole.
MAG authorized dealers can leverage the wealth of experience in our support team, online knowledge base,
warranty service and good spare parts availability for repairing to ensure any technical issue can be resolved faster.

How to maximize your benefit from the SOYAL system ?

We complement the SOYAL access control system with MAG gates,
MAG CCTV and MagEtegra security software to extend SOYAL functionality to the next level and back it up
with faster technical support from us as a single supplier through our authorized dealers.
This saves you the hassle and unnecessary delay time of contacting the different supplier for troubleshooting.

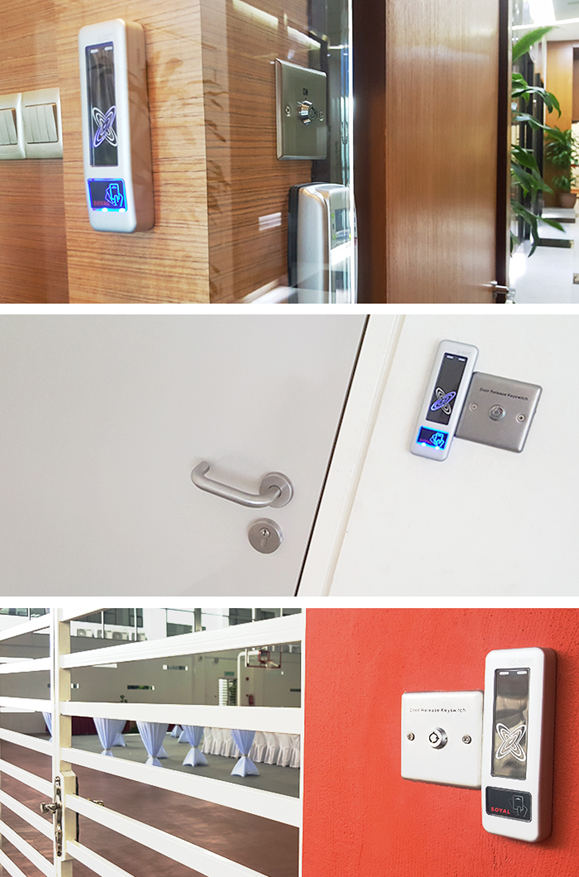

Site Implementation:

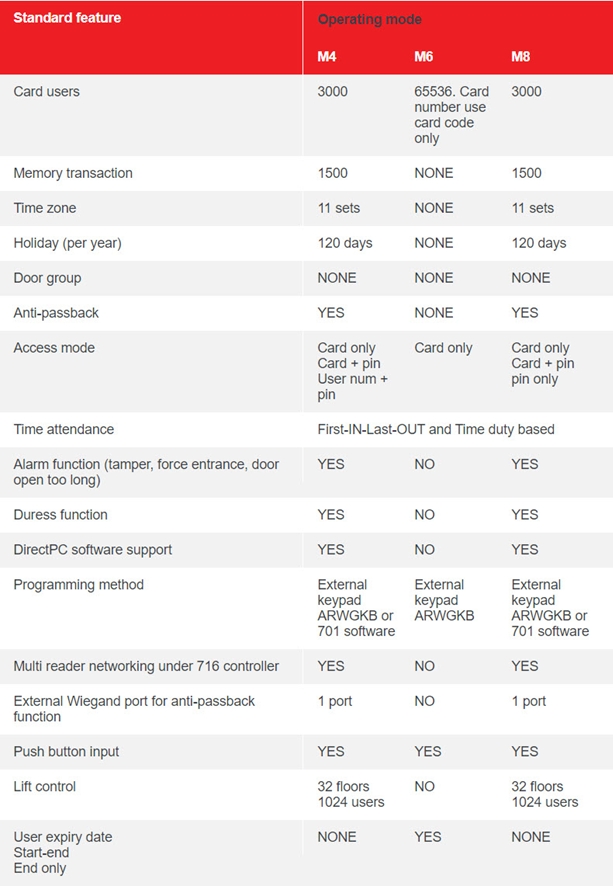

Specification:
