GHS Super Long-Life Slip Rings (GHS50119 Series)

GHS series is a high-speed slip ring specially developed for high-speed rotating equipment. The speed can up to 12000rpm.
The air cooling can ensure the heat generated by the slip ring during high-speed operation does not affect the stability and
the working life of the signal.

GHS50119 series is a rotary electrical connector(rotary electrical joint) with bore size 12.7mm, OD 33mm, support 2~12 circuits.
High speed slip ring with bore size 12.7mm(1/2”,used for<=12.7mm),OD 33mm.

*Attention：if required through bore <12.7mm，this can besolved by adding a sleeve inside the bore.

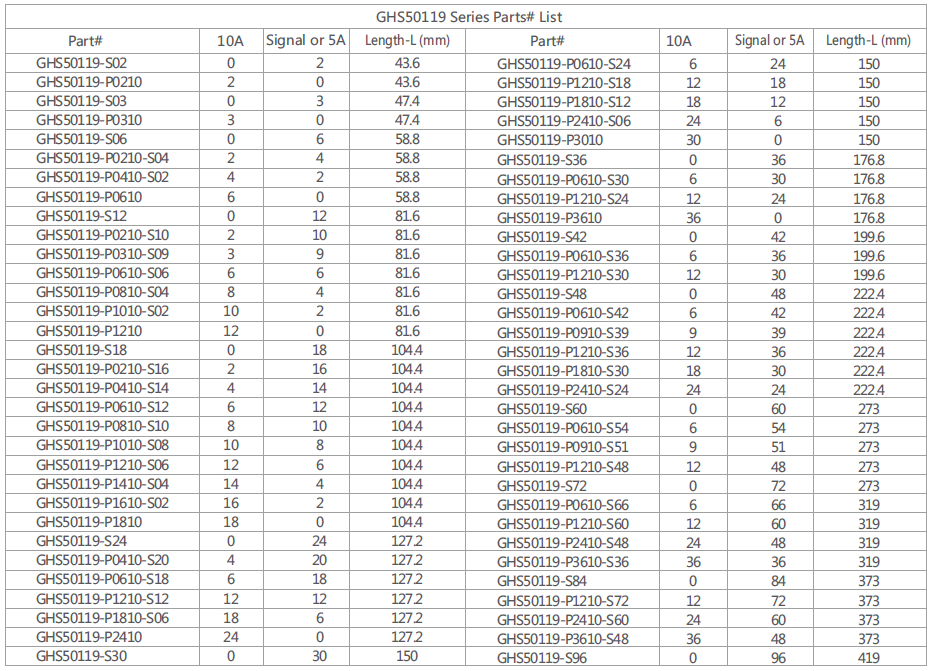

Model :





• Support 1~128 power lines or signal lines.
• Precious metal contacts, precision bearings, no lubrication required.
• Ultra low torque, low loss, high stability, long life.

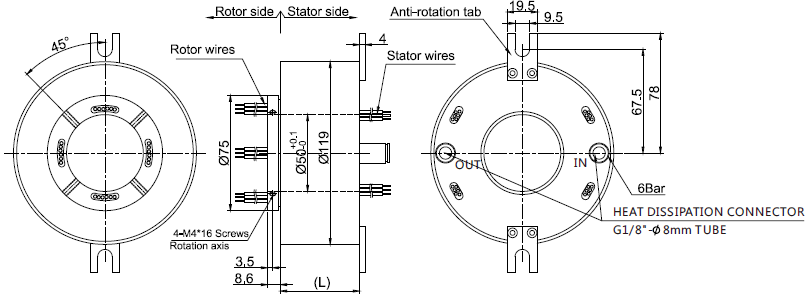

Dimension :

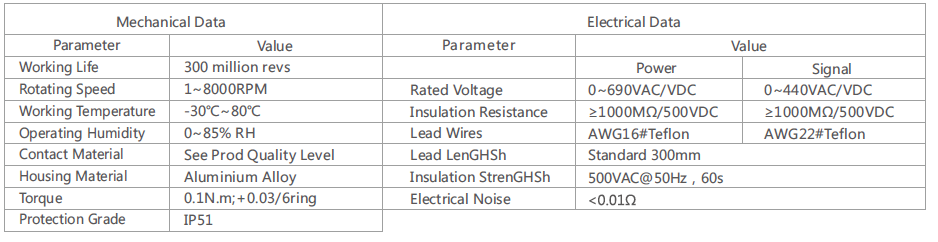

Specifications :
