MT-Standard Slip Rings (MT180298 Series)

MT180298 series provides a 180mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 298mm outside diameter,features
long life, fiber brush contact technology for ultimate performance in manychallenging applications.

MT180298 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the
stator and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A
current when 360° degree free rotating.

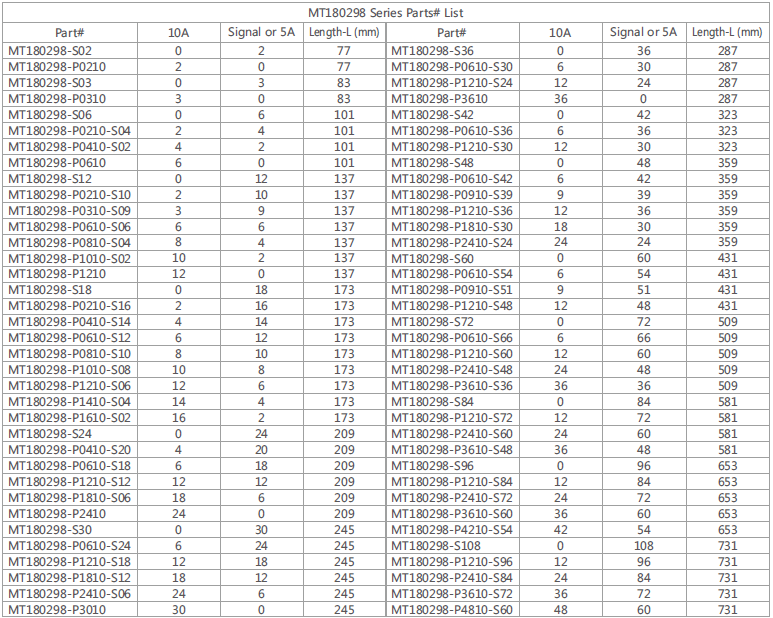

Model :

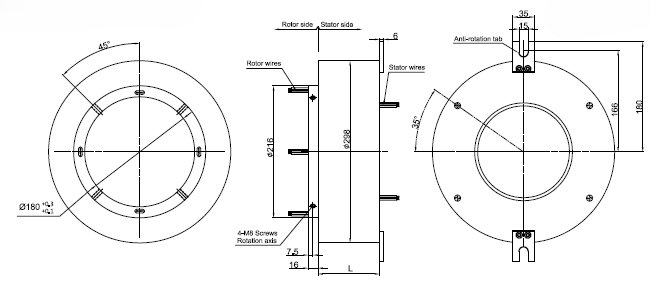

Dimension :

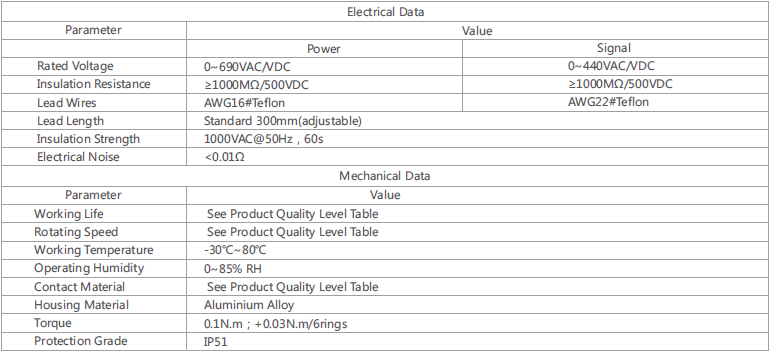

Specifications :
