MT-Standard Slip Rings (MT50119 Series)

MT50119 series provides a 50mm through-bore for routing of hydraulic or pneumatic lines or hydraulic or
pneumatic rotating shaft installation, and a compact 119mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.

MT50119 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current when
360° degree free rotating.



Model :

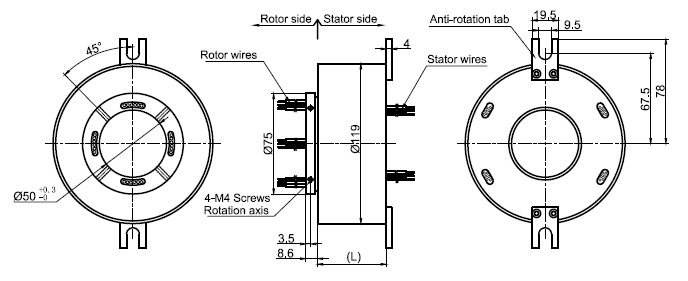

Dimension :

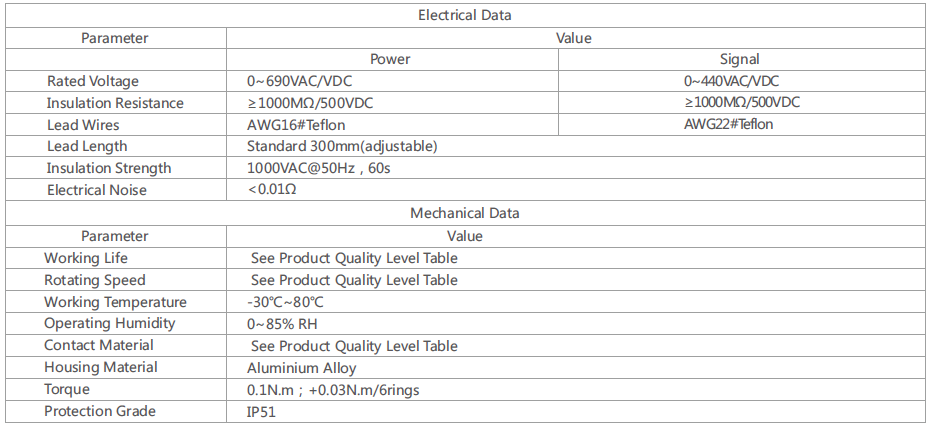

Specifications :
