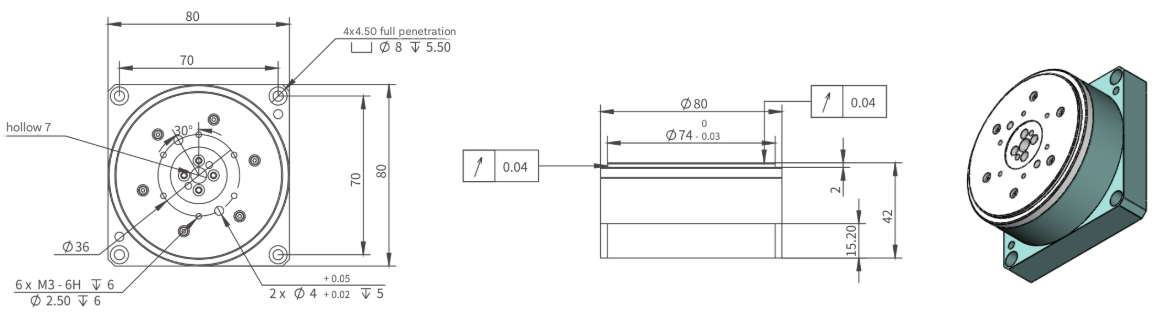

Model : SDM80-002 (Hollow)
| Model parameters | Unit | STP-SDM80-002I06F24N-L005T-S05 |
| Continuous torque ≥ | Nm | 0.84 |
| Peak torque ≥ | Nm | 2.39 |
| Continuous speed ≥ | rpm | 100 |
| Peak speed ≥ | rpm | 300 |
| Number of poles | PCS | 10 |
| Continuous current | Arms | 1.27 |
| Thrust constant≥ | Nm/Arms | 0.52 |
| Peak current | Arms | 3.81 |
| Resistance | ohm | 10.3 |
| Inductance | mh | 3.5 |
| Absolute accuracy | arcsec | ±30 |
| Repeat accuracy | arcsec | ±3 |
| Axial force | N | 300 |
| Radial force | N | 120 |
| Coil maximum temperature | °C | 155 |
| Quality | kg | 0.9 |
| Moment of inertia of mover | kg × m² | 0.00213 |
