Description

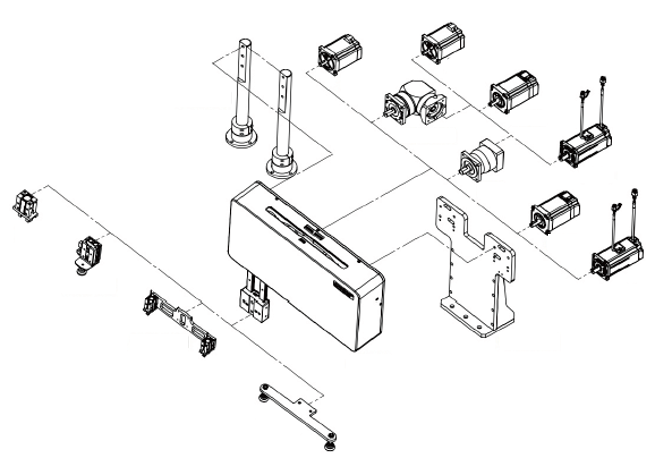

The PPU fast transplanting module is a precision cam pick and place manipulator.
The core structure has independent intellectual property rights, driven by the rotating unit with radius compensation U-shaped arm, according to the special cam groove trajectory movement of mechanical devices, for the limited space of automatic transmission, transplanting and pick up.

Model :

PPU-L60
PPU-L80
PPU-L100
PPU-L120
PPU-L140
PPU-L160
PPU-L190
PPU-L270
PPU-L310

Features :

Adopting a mechanical cam structure with automatic compensation performance, the stroke can be independently adjusted.
THK imported guide rail, with a repeated positioning accuracy of 0.02mm and stronger load-bearing capacity.
Compact structure, with a motion cycle of 0.4S, greatly improving production efficiency.
Multiple domestic or imported AC(DC) servo motors or stepper motors can be selected for driving.
Can build multi station production lines, save labor input, and reduce maintenance and repair costs in the later stage.

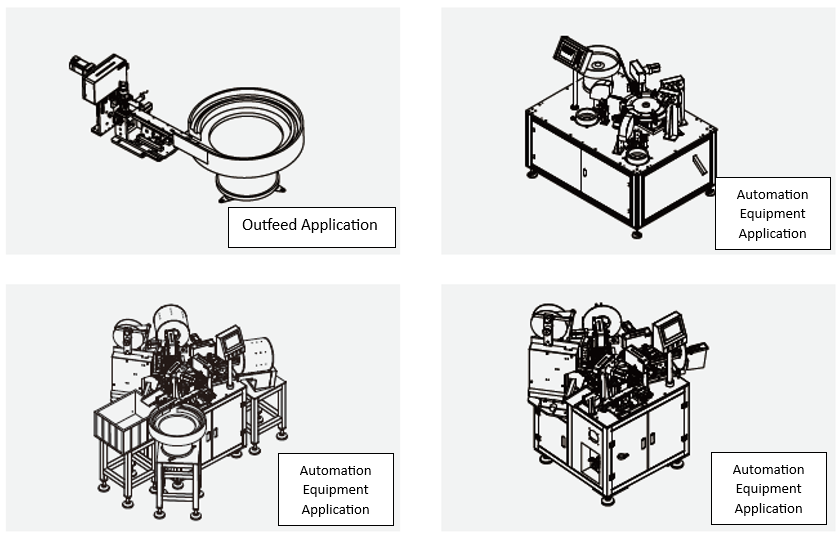

Applications :

Specifications :

Environment	Drive	Structure type	Model	Repeatability (mm)	Translation stroke (mm)	Linear Telescoping (mm)	Total height of Telescoping (mm)	Reciprocating time (s)	Rated load (N)	Guide rail width (series)	Drive flange
General	Stepper / servo	Pure cam mechanical structure	PPU-L60	±0.02	64±4	0~30	≤52	≥0.4	15	12	Adapter GB400W servo & GB57 stepper
			PPU-L80	±0.02	80±8	0~30	≤54	≥0.4	15	12	Adapter GB400W servo & GB57 stepper
			PPU-L100	±0.02	100±8	0~30	≤62	≥0.5	15	12	Adapter GB400W servo & GB57 stepper
			PPU-L120	±0.02	120±8	0~30	≤70	≥0.6	15	12	Adapter GB400W servo & GB57 stepper
			PPU-L140	±0.02	140±8	0~30	≤70	≥0.6	15	12	Adapter GB400W servo & GB57 stepper
			PPU-L160	±0.02	160±10	0~35	≤87.5	≥0.6	15	15	Adapter GB750W servo & GB86 stepper
			PPU-L190	±0.02	190±18	0~35	≤87.5	≥0.7	15	15	Adapter GB750W servo & GB86 stepper
			PPU-L270	±0.03	270±18	0~35	≤87.5	≥1.1	15	15	Adapter GB750W servo & GB86 stepper
			PPU-L310	±0.03	310±18	0~35	≤87.5	≥1.2	15	15	Adapter GB750W servo & GB86 stepper
