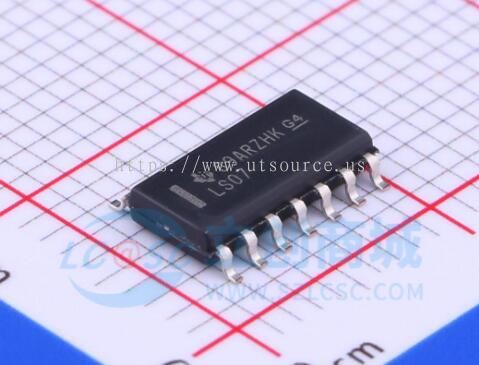

HEX BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS

Parameter	Symbol	Min	Typ	Max	Unit	Conditions
Supply Voltage	V_CC	4.75	5	5.25	V	Operating
Output Current (Source)	I_O	-	32	-	mA	V_OH = 2.4V, V_CC = 5V
Output Current (Sink)	I_O	-	8	-	mA	V_OL = 0.4V, V_CC = 5V
Input Current	I_I	-1	0	1	μA	V_I = 0 to V_CC
Output Voltage (High)	V_OH	2.4	-	5	V	I_O = 0mA, V_CC = 5V
Output Voltage (Low)	V_OL	0	-	0.4	V	I_O = 8mA, V_CC = 5V
Propagation Delay Time	t_pd	9	15	22	ns	V_CC = 5V, I_L = 16mA
Power Dissipation	P_D	-	-	500	mW	Per Package
Operating Temperature	T_A	-55	-	125	°C	Commercial: 0 to 70°C
Storage Temperature	T_STG	-65	-	150	°C	-

Power Supply:
- Ensure the supply voltage (V_CC) is within the specified range of 4.75V to 5.25V.
- Connect the ground (GND) pin to a stable reference point.
Input Signals:
- Apply input signals within the range of 0V to V_CC.
- Ensure that the input current does not exceed ±1μA to avoid damage.
Output Handling:
- The SN74LS07DR has open-collector outputs, which can be pulled high using external resistors.
- When sourcing current, ensure the output voltage (V_OH) does not exceed 5V.
- When sinking current, ensure the output voltage (V_OL) is kept below 0.4V to maintain low output state.
Propagation Delay:
- Account for the propagation delay time (t_pd) in your circuit design to ensure proper timing.
Thermal Management:
- Monitor the power dissipation (P_D) to ensure it does not exceed 500mW per package.
- Ensure adequate cooling if operating at high temperatures or in high-power applications.
Temperature Range:
- Operate the device within the commercial temperature range of 0°C to 70°C for optimal performance.
- For extended temperature ranges, refer to the industrial grade specifications.
Storage:
- Store the device in a dry environment with temperatures between -65°C and 150°C to prevent damage.
Handling:
- Handle the device with care to avoid static discharge, which can damage the internal circuits.
- Use appropriate ESD protection measures when handling the device.
