Heighten your senses with the all-new CBR150R that embodies a sleek but compact sporty silhouette.
Features
.png)
.png)
.png)
.png)
.png)
| Engine | ||

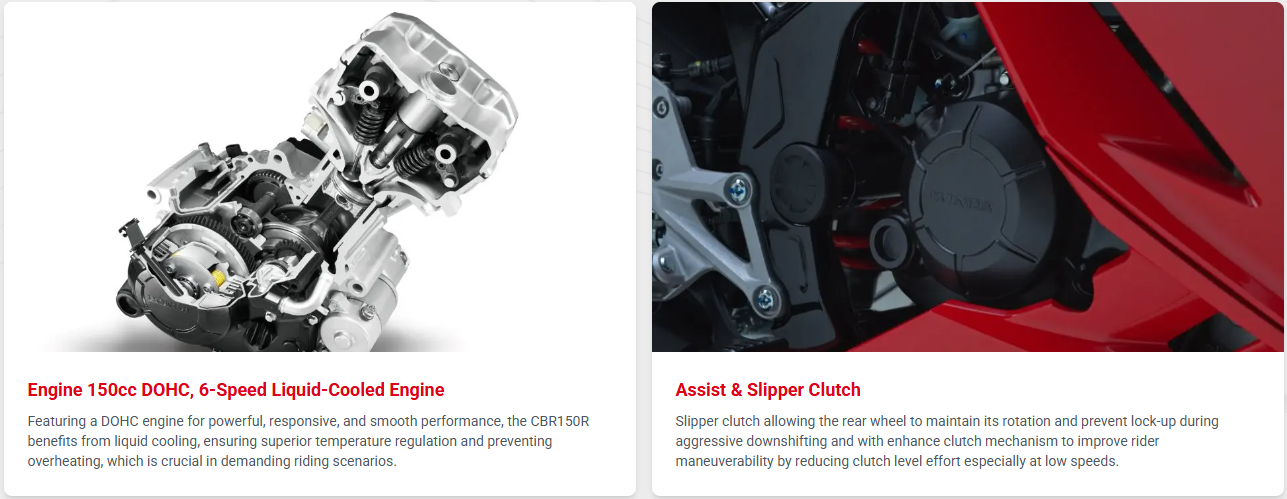

| Type | : | Single Cylinder, Liquid-cooled, DOHC 4-Stroke 4 Valve |
| Displacement | : | 149.2 cm³ |
| Bore x Stroke | : | 57.3 mm x 57.8 mm |
| Compression Ration | : | 11.3 : 1 |
| Max Power | : | 12.0 kW / 9,000 rpm |
| Max Torque | : | 13.7 Nm / 7,000 rpm |
| Engine Oil Capacity | : | 1.1 ! (After draining), 1.3 ! (After disassembly) |
| Fuel System | ||
| Carburation | : | PGM-FI (Programmed Fuel Injection) |
| Fuel Tank Capacity | : | 12.0 ! |
| Electrical System | ||
| Starter | : | Electric Auto Start |
| Battery Capacity (A.h) | : | 5.0 A.h (10 HR) |
| ACG Output (V) | : | 12V |
| Drivetrain | ||
| Clutch Type | : | Manual Clutch Wet Multiplate Type with Assist & Slipper Clutch |
| Transmission Type | : | Constant Mesh, 6 speeds |
| Dimension and Weight | ||
| Frame Type | : | Diamond (Truss) frame |
| Dimensions (L x W x H) | : | 1,983 mm x 700 mm x 1,090 mm |
| Wheelbase | : | 1,310 mm |
| Seat Height | : | 788 mm |
| Ground Clearance | : | 151 mm |
| Kerb Weight | : | 139 kg |
| Suspension, Wheels & Brake | ||
| Front Suspension Type | : | Inverted Telescopic Front Suspension |
| Rear Suspension Type | : | Swing Arm with Monoshock (Pro-Link) System |
| Front Type | : | 100/80R – 17 M/C (52P) (Tubeless) |
| Rear Type | : | 130/70R – 17 M/C (62P) (Tubeless) |

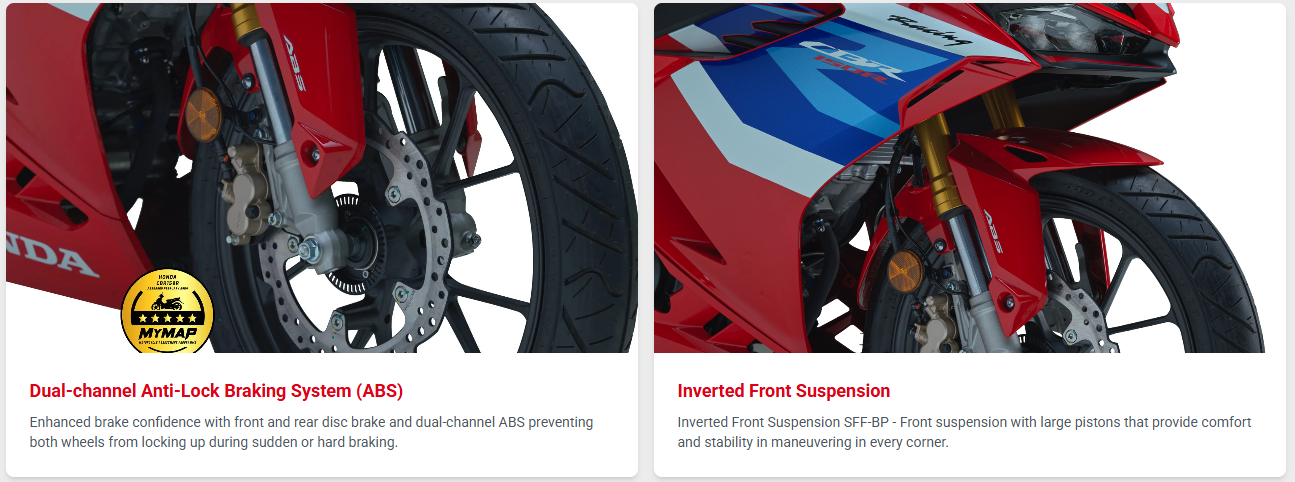

| Front Brakes | : | Hydraulic Disc Brake, ABS |
| Rear Brakes | : | Hydraulic Disc Brake, ABS |
