The TRE208L is a high-performance, non-maintained LED emergency light designed for safety and compliance. With a 3-hour rated duration and a powerful 3.6V 900mAh Ni-Cd battery, it delivers a bright 70 lm output from 12 SMD LEDs. The unit is housed in a durable epoxy powder-coated metal casing, and its built-in safety features, including low voltage cut-off, ensure reliable operation. It is fully compliant with Malaysia Standards MS 619 and MS IEC 60598.

JM SURFACE BOX UP LED EMERGENCY LIGHT

• TRE208L

Product Data

1. Model: TRE208L

2. Mode of Operation: Non-maintained

3. Input Voltage: 240V ± 10% , 50Hz

4. Rated Duration: 3 hours

5. Battery Type: 3.6V 900mAh Ni-Cd battery

6. Lamp Used: 12 X 0.2W SMD LED

7. Brightness Output: 120 Lux

8. Luminosity Output: 70 lm

9. Power Consumption: 4 VA

10. Charger: Solid State Electronic Automatic

11. Charging Monitor: Red LED 5mm diameter

12. Test Facility: Independent testing

13. Operation Temperature: 25°C

14. Safety Feature: Low voltage cut-off to prevent over-discharge of the battery, incoming AC Fuse.

15. Fitting Construction: Metal casing finish in epoxy powder coating.

16. Diffuser: Prismatic Acrylic Diffuser

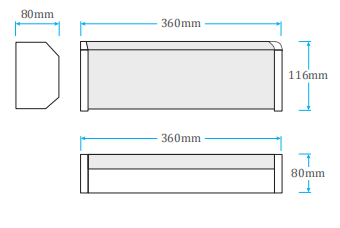

17. Dimension: 363(L)mm x 116(W)mm x 80(H)mm

18. Mounting: Wall or Ceiling mounting

19. Outer Box:475(L)mm x 398(W)mm x 272(H)mm

20. Inner Box:372(L)mm x 90(W)mm x 123(H)mm

21. Compliance: Malaysia Standards MS 619 , MS IEC 60598 BOMBA Approved
