Description

Download Product Brochure - PosiTector Barcol Hardness Impressor (BHI)

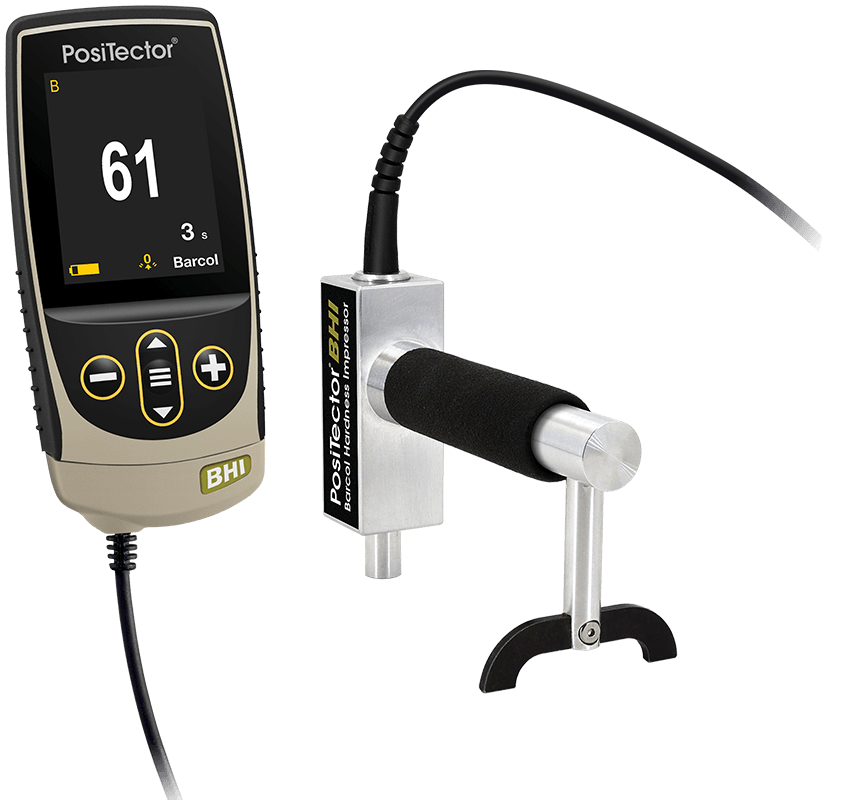

PosiTector® BHI

Barcol Hardness Impressor

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
Large 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration included
Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22

Features

Simple

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
User-adjustable measurement time with on-screen countdown

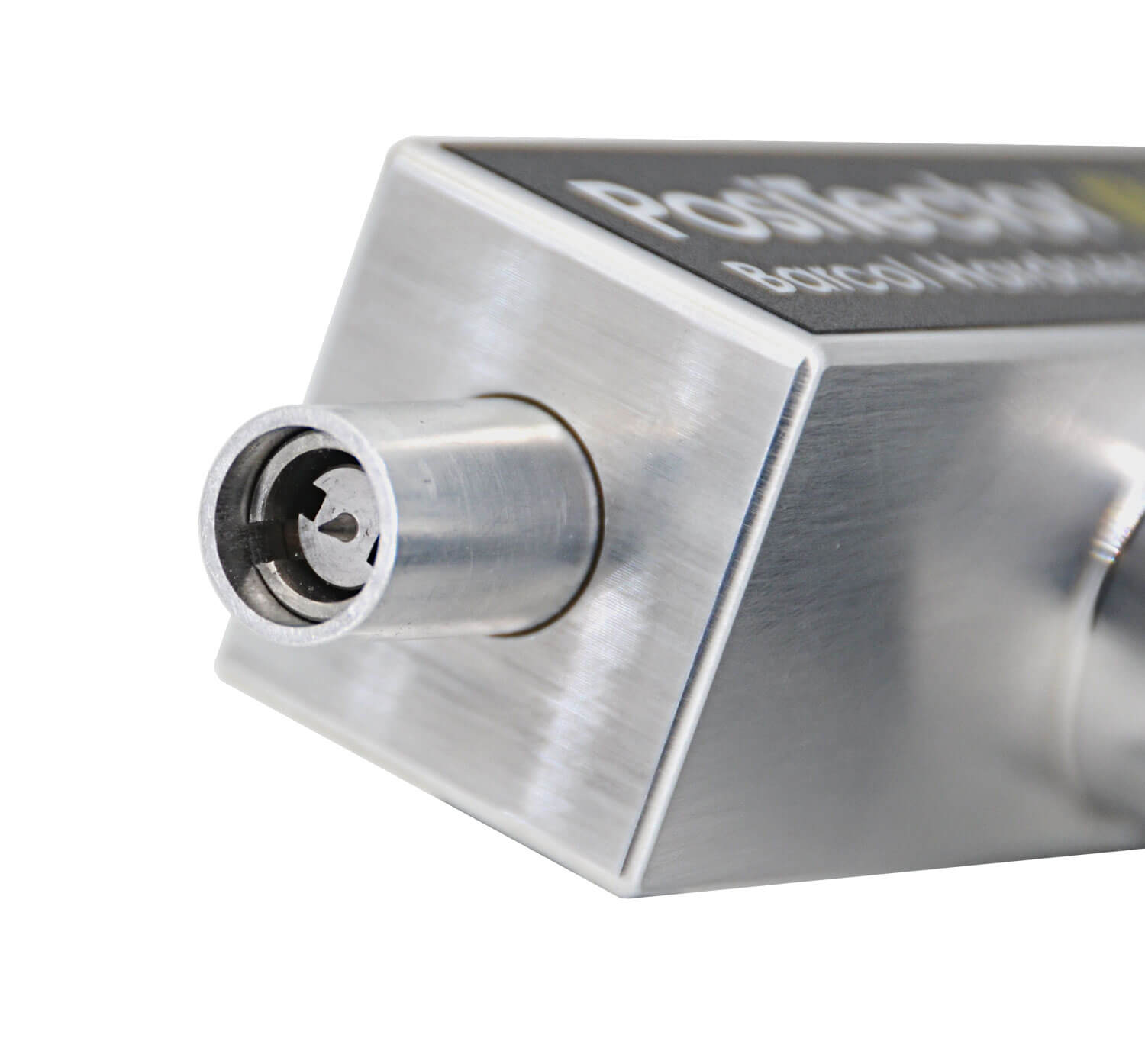

Includes spare, field replaceable indentor with replacement tool
Large 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Accurate

Certificate of Calibration included
Hi-RES mode increases displayed resolution for precision applications

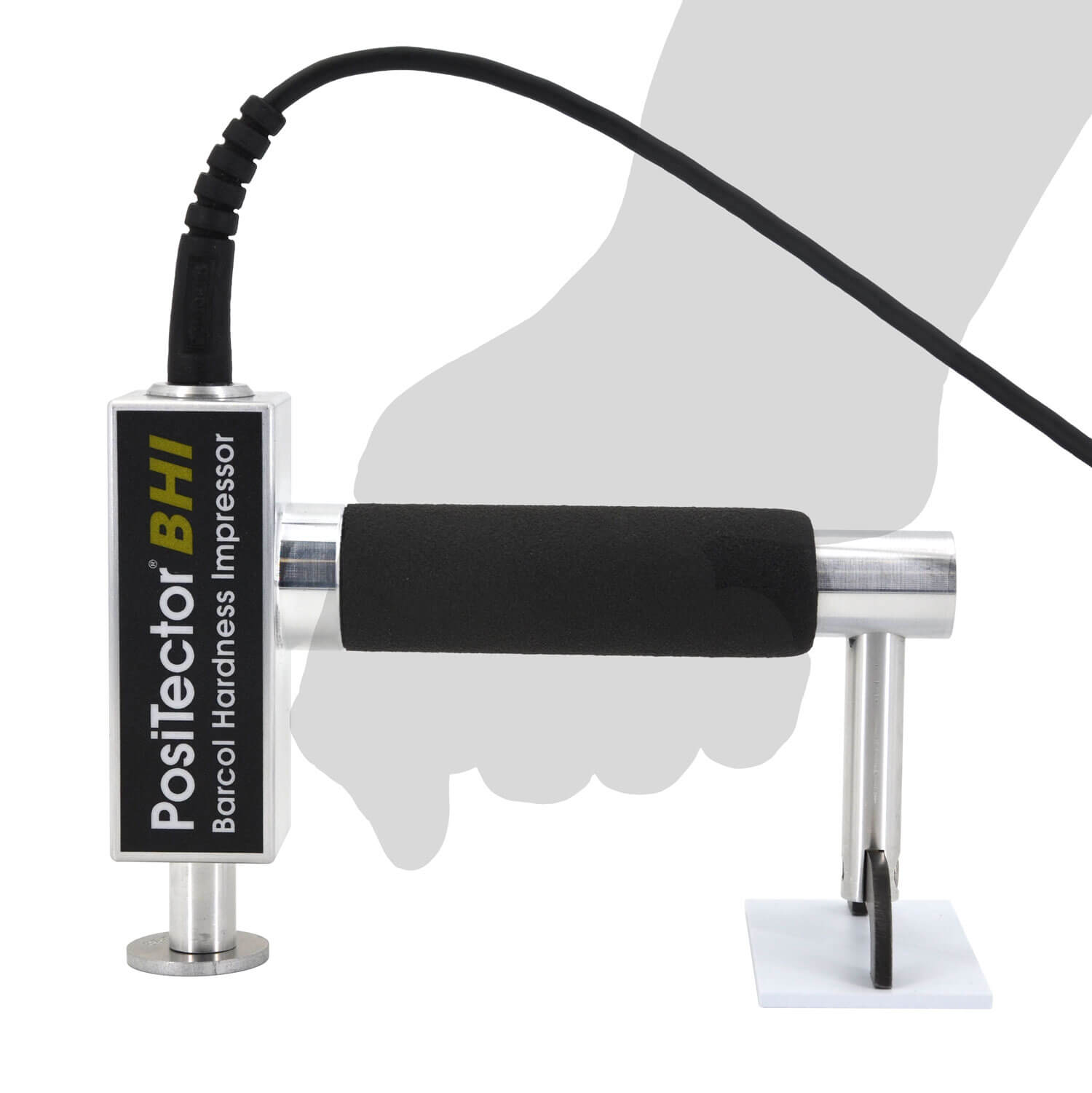

Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
Conforms to national and international standards including ASTM

Powerful

Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
Screen Capture—save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Instant-on feature quickly powers up the gage if recently powered down
Over 20 hours of continuous operation with 3 AAA batteries
USB Port for fast, simple connection to a PC and to supply continuous power
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Every stored measurement is date and time stamped
Software Updates via the internet keep your gage current
Includes PosiSoft suite of software for viewing, analyzing and reporting data

Durable

Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Ergonomic design with durable rubberized grip
Shock-absorbing, protective rubber holster for added impact resistance
Hard-shell carrying case included
Two year warranty on gage body AND probe

Versatile

PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
1 and 2 point calibration options with Cal Reset to restore factory settings
Selectable display languages
Auto rotating display with Flip Lock

Specifications

Measurement Range

20 – 100 Barcol

Resolution

0.1 Barcol

Accuracy

± 2 Barcol

Size*

127 x 66 x 25.4 mm (5'' x 2.6'' x 1'')

Weight*

137 g (4.9 oz.) without batteries

Probe Size

145 x 97 x 64 mm (5.7'' x 3.8'' x 2.5'')

Probe Headroom

140 mm (5.5'')

Probe Weight

400 g (14.1 oz.)

View Dimensions

* Size and weight are for the PosiTector gage body only and do not include the probe

Standard Models

Includes ALL features as shown on left plus...

Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
Auto Sub-Batch—automatically create new sub-batches after the desired number of readings are taken
Live graphing of measurement data
Touchscreen keyboard for quickly renaming batches, adding notes, and more
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Store thickness, profile, environmental, salt contamination, hardness, and wall thickness measurements in individual batches

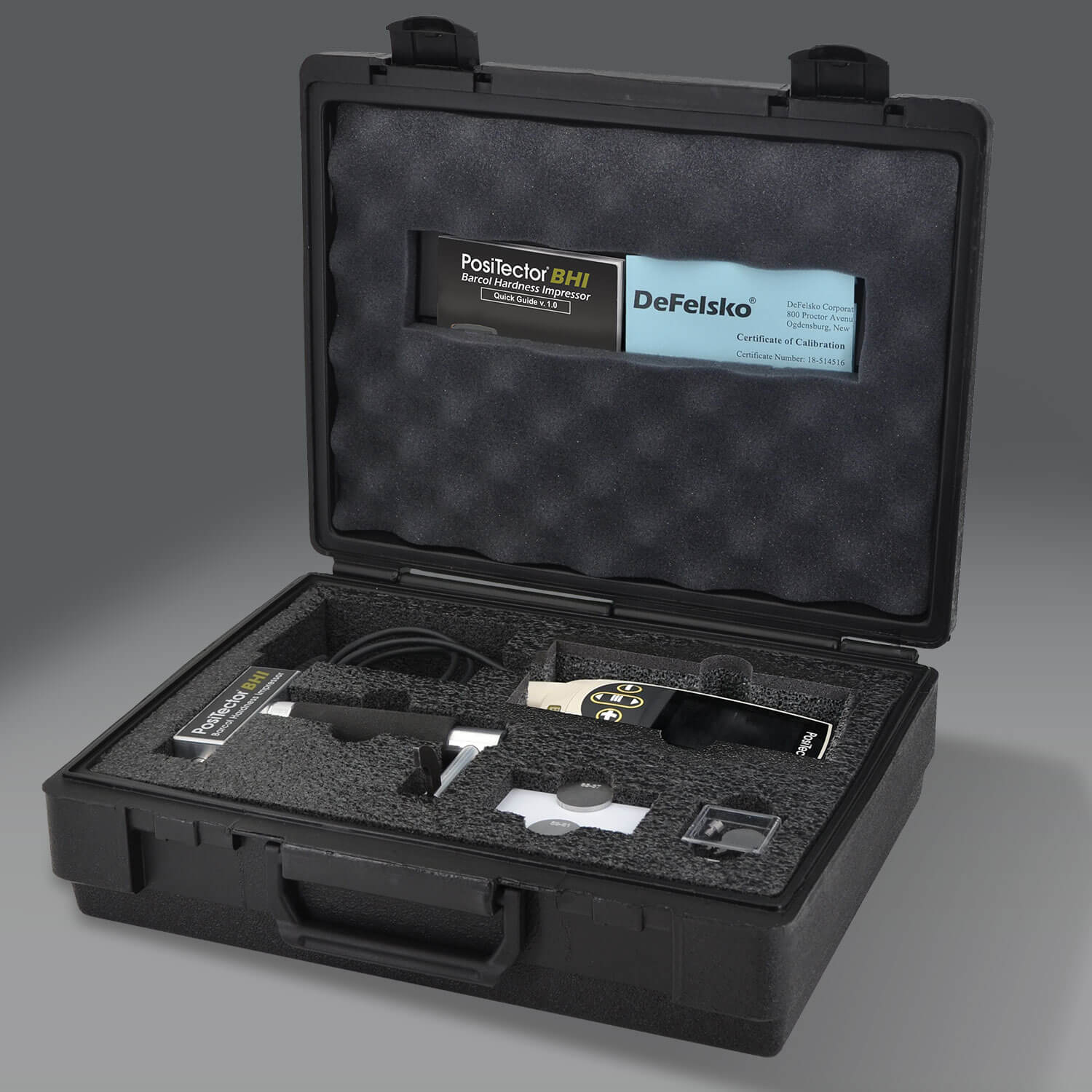

All gages come complete with test disks (2), leveling plate, replacement indentor with replacement tool, glass plate, protective rubber holster, wrist strap, 3 AAA batteries, instructions, protective carrying case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.
