Description

Download Product Brochure - PosiTector SHD Shore Hardness Durometer

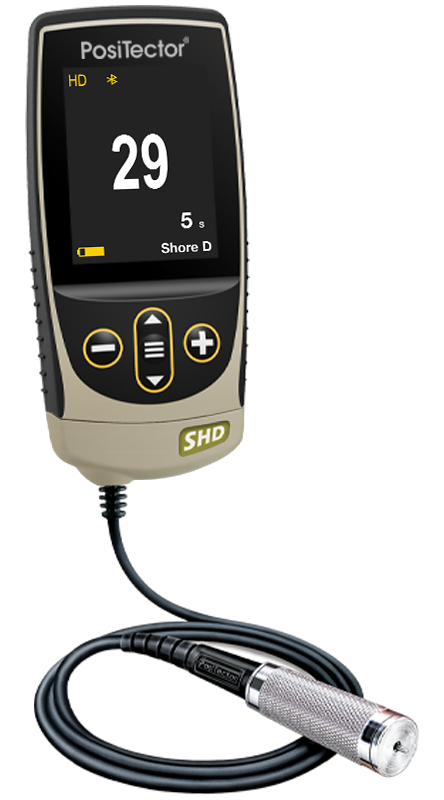

PosiTector® SHD

 Shore Hardness Durometers for the indentation hardness of non-metallic materials

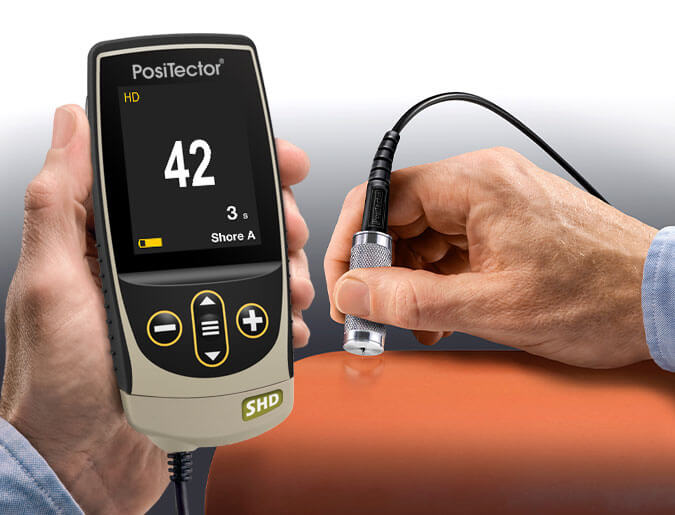

Handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges—Shore A and Shore D.

Features
Simple
  • Easy-to-read digital display
  • User-adjustable measurement time with on-screen countdown to conform to national and international standards
  • Large 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

Durable
  • Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Hardened steel indentor
  • Two year warranty on gage body AND probe

Accurate
  • Certificate of Calibration showing traceability to NIST included
  • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
  • Hi-RES mode increases displayed resolution for precision applications

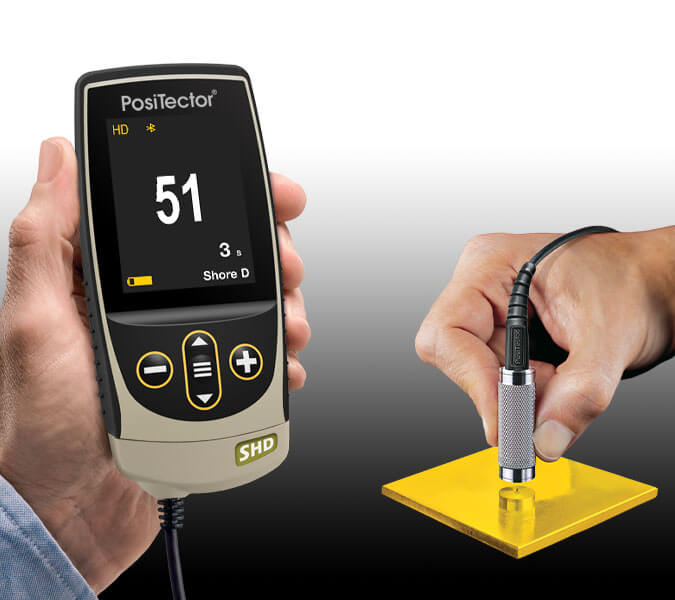

  • Includes test block to verify operation
  • Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

Versatile
  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Selectable display languages
  • Auto rotating display with Flip Lock

Powerful
  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Screen Capture—save 100 screen images for record keeping and review
  • Instant-on feature quickly powers up the gage if recently powered down
  • Over 20 hours of continuous operation with 3 AAA batteries
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Includes PosiSoft suite of software for viewing and reporting data
  • Software Updates via web keep your gage current


Specifications

Measurement Range
0 – 100
Accuracy
± 1
Resolution
0.1
Body Size*
127 x 66 x 25.4 mm (5'' x 2.6'' x 1'')
Weight*
137 g (4.9 oz.) without batteries

* Size and weight are for the PosiTector gage body only and do not include the probe

All gages come complete with test block, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, protective carrying case, Long Form Certificate of Calibration traceable to NIST, protective lens shield, USB cable, PosiSoft Software, two (2) year warranty.



Standard Models
Includes ALL features as shown on left plus...
  • Storage of 1,000 readings per probe—stored readings can be viewed or downloaded
Advanced Models
Includes ALL features as shown on left plus...
  • Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Auto Sub-Batch—automatically create sub-batches after the required number of readings are taken
  • Live graphing of measurement data
  • Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
  • Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches
