Ensure flawless bicycle chain quality with our advanced Chain Quality Inspection Station, designed to ensures consistent, high-quality chain production by detecting defects, misalignments, and dimensional inaccuracies in real-time.
Product Description :
Chain Quality Inspection Station, a stand alone industrial chain quality inspection machine equipment, with roller chain, rotary gripper and configurable parameters controlled by PLC which programmed by AIM Automation Solution.
Machine Functionality :
The Cahin Quality Inspection Station designated to perform automated visual inspection of bicycle crank during or after manufacturing process.
Here's the step process of the machine:
1. Operator insert workpiece (crank) by inserting into the rotary gripper hole.
2. Next, press start button (green) simultaneously to start the operation.
3. Waiting for the process completed.
4. Operator unload the GOOD part workpiece (crank) and placing in strorage box. For the reject/NG workpiece (crank), operator need to acknowledge (HMI touch screen panel) before unload the workpiece to trasnfer to reject storage box.
5. Repeat step 1 until 5 to continue the operation.
Machine Features :
- Sturdy steel structure with powder coated panels and covers.
- PLC controlled automated sequence.
- Customizable inspection parameters to inspect different type chain types, sizes, and specifications used in the bicycle industry.
- Stable PLC controlled automated sequence with 7" Mitsubishi touch screen color display.
- Low maintenance & high reliability for continuous operation with minimal downtime and easy maintenance access.
- Inspects chains in real-time, keeping your production line running smoothly & efficiently.
Machine Facility Requirement :
|
Voltage Single Phase
|
: 230 VAC
|
|
Voltage Single Phase
|
: 50/60 Hz
|
|
Compressed Air
|
: < 1000 W
|
|
Power Consumption
|
: < 1000 W
|
|
Operating Temperature
|
: 10 oC to 40 oC
|
|
Operating Humidity
|
: < 80% RH
|

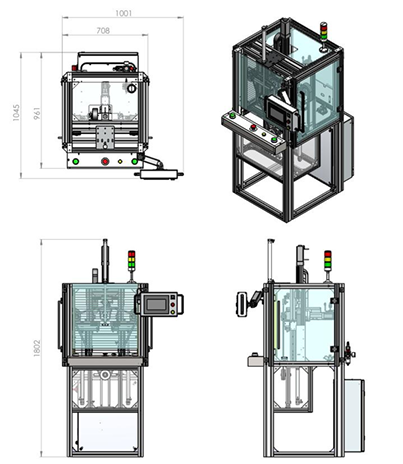

Machine Dimension and Weight :
Dimension: L 961 mm x W 708 mm x H 1802 mm
Weight: 185 kg
.png)
Industries and It's Application :
- Bicycle Manufacturing Industry
- Metal Component Manufacturing
- Sporting Goods & Mobility Equipment Manufacturers
- Automotive Manufacturers
