Boost your production quality and reduce defects with our state-of-the-art Hard Disk Surface Vision Inspection Machine – the trusted solution for electronics manufacturers. Whether you're scaling up production or looking to meet strict industry standards, this machine delivers the efficiency and accuracy you need to stay ahead in a competitive market.
Product Description :
Hard disk Surface Vision Inspection Machine, a stand alone industrial hard disk surface vision inspection machine equipment, with horizontal indexing conveyor with precisor, vision system and configurable parameters controlled by PLC which programmed by AIM Automation Solution.
Machine Functionality :
The Hard disk Surface Vision Inspection Machine designated to perform automated, high-precision visual inspections of hard disk surfaces during production.
Here's is the step process of the machine:
1. Operator insert workpiece (hard disk) by placing on table jig.
2. Operator press start button simultaneously to start the operation.
3. Operator need to continue feeding the workpiece into the machine. When the workpiece arrived at the loading bay again, operator need to pick up and place on storage box. The reject part (NG) will be directly transfer to reject conveyor.
Machine Features :
- Sturdy steel structure with powder coated panels and covers.
- PLC controlled automated sequence.
- High precision isnpection which detects surface defects such as scratches, chips, inclusions and coating defects.
- Ultra-High Precision Inspection
- Delivers high-speed image analysis and instant Pass/Fail judgment without interrupting the production flow.
- Intuitive touchscreen HMI for quick setup, real-time monitoring, and easy recipe changes across different disk models.
- Equipped with high-resolution industrial cameras and custom lighting to capture consistent, glare-free images—even on reflective disk surfaces.
- Supports automatic part handling, inspection, classification, and rejection—eliminating the need for manual checking.
- Stable PLC controlled automated sequence with 7" Mitsubishi touch screen color display.
Machine Facility Requirement :
|
Voltage Single Phase
|
: 230 VAC
|
|
Voltage Single Phase
|
: 50/60 Hz
|
|
Compressed Air
|
: < 1000 W
|
|
Power Consumption
|
: < 1000 W
|
|
Operating Temperature
|
: 10 oC to 40 oC
|
|
Operating Humidity
|
: < 80% RH
|

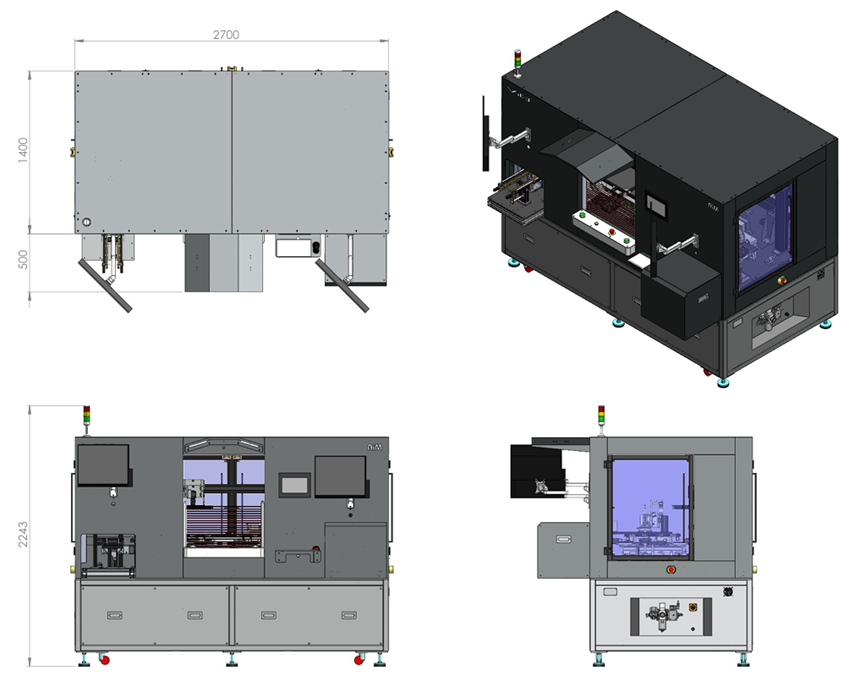

Mahine Dimension and Weight :
Dimension: L 1900 mm x W 2700 mm x H 2243 mm
Weight: 650 kg
.png)
Industries and It's Application :
- Electronics Manufacturing
- Data Storage Industry
- Automotive Electronics
- IT Hardware Manufacturing
- Medical Electronics
