Model :
| Parameter items | Parameter declaration |

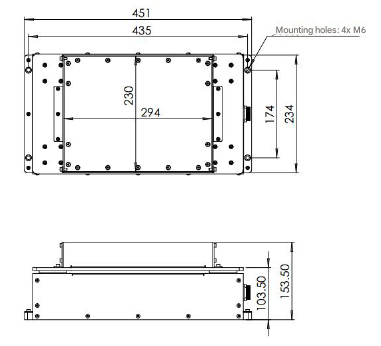

| Outline dimension (L × W× H) | 451 × 234 × 153.5 mm |
| Pallet size (L × W × D) | 294 × 230 × 43 mm |
| Install the hole | 435 mm × 174 mm (4XM6) |
| Material of tray structure | Smooth/satin/railings/cutouts/holes/customization |
| Load the tray | 1 kg |
| Pallet amplitude | ± 5 mm |
| Power supply parameters | 12V/130W (Standard 12V switch power supply) |
| Backlight (standard) | RGBW is optional |
| Controller (standard) | 7-inch touch screen for adjusting vibration tray, material bin Vibration parameters and combination action parameters |
| External trigger mode | Passive IO trigger |
| Forward light module (optional) | Embedded forward light material tray (RGBW four colors optional) |
| Visual positioning system (optional) | WGD-IMAGE flexible vibration tray visual positioning system |
