Hard Disk Vision Inspection Machine For Electronic Sector

Introducing the Hard Disk Vision Inspection Machine – your ultimate partner in achieving flawless quality in hard disk manufacturing.

Hard Disk Vision Inspection  Machine, a stand-alone industrial Hard Disk Vision inspection Machine equipment, with vision inspection system, linear actuator, and configurable parameters controlled by PLC which programmed by AIM Automation Solution.

The Hard Disk Vision Inspection  Machine automatically handles, orients, and inspects optical lenses with high precision using advanced vision technology to detect surface and dimensional defects, ensuring reliable sorting and traceability in cleanroom environments.

Here's  is the step process of the machine:
1. Operator loading workpiece by placing on the holder jig.
2. Next, press "start" button simultaneously to start the operation.
3. Wait for the process to be completed.

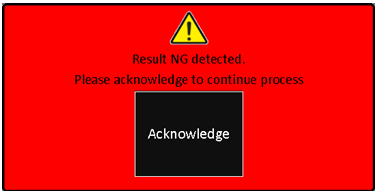

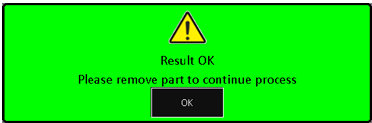

4. Operator need to press button on HMI touch screen to acknowledge the workpiece NG or Pass the inspection as shown below.

5. Operator unloading the workpiece.

• Sturdy steel structure with powder coated panels and covers.
• PLC controlled automated sequence.
• High-Speed Inspection Performance.
• Easily configurable for different hard disk models or inspection points which supports upgradeability and easy maintenance.
• Software development with data logging features.
• SMC pneumatic components.
• Stable PLC controlled automated sequence with 7" Mitsubishi touch screen color display
• Intuitive touchscreen interface for easy operation and monitoring.

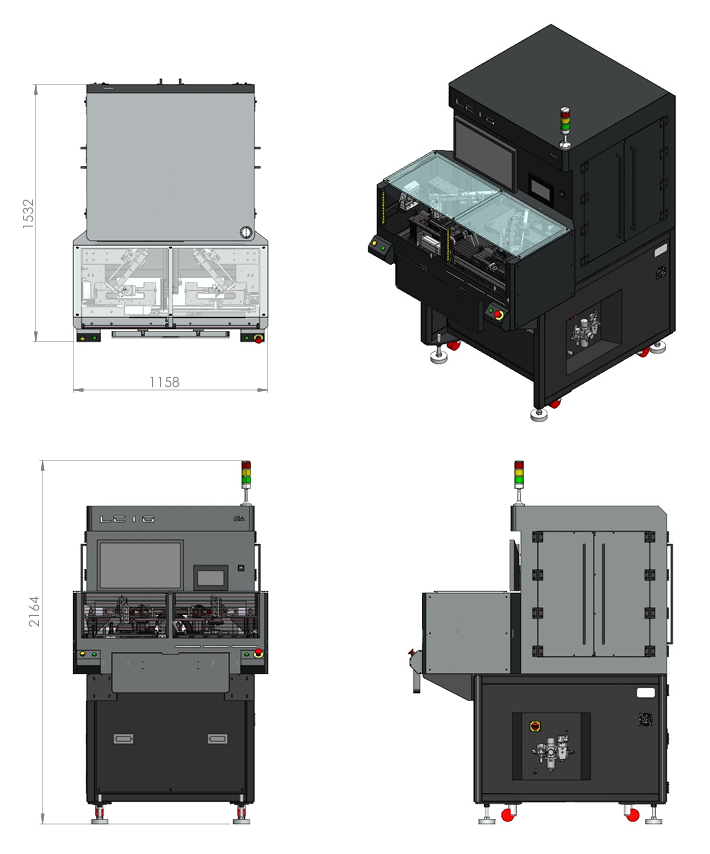

Machine Dimension and Weight :
Dimension : Approx. D 1532 mm x W 1158 mm x H 2164 mm
Weight       : Approx 602 kg

• Electronics & Semiconductor Manufacturing
• Computer Hardware & Data Storage
• Automotive Electronics : Inspects hard disk units used in infotainment, ADAS, or onboard computing systems.
• Industrial Automation Equipment
