Give your creativity a Glow up - Mimaki UV Flagship Model for High Image Quality, High Production, and Application Versatility - 330 Series: Print & Cut UV-LED inkjet printer
Introducing our premium MIMAKI UCJV330 Large Format UV Printer, revolutionizing your printing needs with unparalleled versatility and precision. With its advanced print and cut functionality, this powerhouse can seamlessly produce a wide array of materials including stickers, banners, signage, window film, and much more. “UCJV330 Series” is a Print & Cut UV-LED inkjet printer that combines the high productivity and high image quality of our flagship “330 Series” with our UV printing technology to significantly improve productivity and image quality compared to previous models.
Experience the ultimate freedom of expression with up to 5-layer printing capabilities, allowing you to create stunning, multi-dimensional designs. Plus, our innovative watermark printing function ensures your work remains protected and uniquely yours. Invest in the future of printing technology with our MIMAKI UCJV330 Large Format UV Printer and unleash your creativity like never before. Elevate your projects with unmatched quality and efficiency today!
Mimaki UV High Image Quality Technology - 5 Key Points Supporting Mimaki's High Image Quality:
Newly developed ink ejection technology delivers high image quality at high production speed
MWDT is used to compensate for differences in the individual print heads, also small adjustment errors to suppress banding.
Mimaki's unique banding reduction system makes printing smoother
High-density, high-definition UV-LED 330 print heads
Smoother image quality with a minimum 4pl graininess

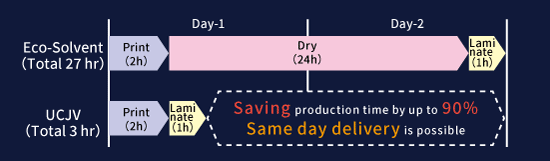

UV-LED printing requires no drying time for quick delivery
UV ink cures and fixes to substrates when exposed to UV light (ultraviolet light). This allows printed substrates to be post-processed immediately after printing, this includes laminating and cutting.
In addition, UV ink does not require a specific surface type and can print on a wide variety of substrates.

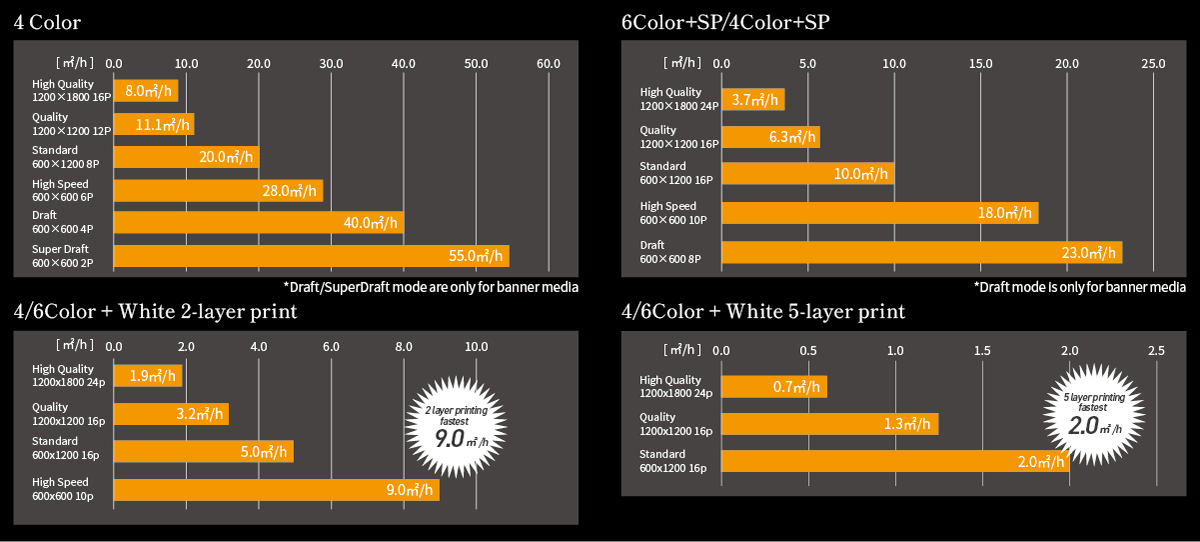

Realize overwhelmingly high image quality with fast printing speed
2.5D Print (Emboss Print)
Mimaki's first roll-to-roll product to support the "Emboss Print" feature of our flatbed printers.
Layers of UV ink are applied to create an uneven texture. This makes it possible to simulate the texture found in oil paintings and on wood grains.
Watermark Print
Watermark print that reveals the skeleton image when the backlight is exposed.
When illuminated from behind, such as sunlight or backlight, it can create a silhouette,This feature provides the ability to create unique designs that attract attention.
Gloss & Matte Finish Print
Clear ink provides added values to the applications.
"Gloss finish" enhances the sense of luxury with its glossy luster.
"Matte finish" provides a luxurious matte effect.
It can bring textural effects to the surface, which enhances the design.
ARTISTA UV Texture Library
RasterLink7 Software includes 129 texture patterns that can be used as swatches in Adobe Illustrator.
Clear ink can be used to add a luxurious frosted privacy screen to office and facility windows.
Print&Cut: Proven cutting functionality - Supports for Various Output Operations
Thanks to the instant-drying nature of UV-cureble inks, you can seamlessly perform print & cut operations, expanding your printing possibilities. With just one machine, you can create a wide range of applications, inlcuding store decorations, posters, labels, stickers, wobblers, and more.
This versatile machine is also equipped with dunctions to increase efficiency, such as ID cut and zero-margin crop mark functions, which support automatic and continuous cutting of various data while reducing media waste.
Specification
| UCJV330-130 | UCJV330-160 | ||
| Print head | On-demand piezo head (2 staggered layout) | ||
| Print resolution | Y: 600, 1200 dpi X: 600, 1200, 1800 dpi | ||
| Print gap | By manual 3 levels (2.0/2.5/3.0 mm) | ||
| Ink | Type/Color | LUS-170：C,M,Y,K,Lc,Lm,W,Cl | |
| LUS-175：C,M,Y,K,Lc,Lm,W,Cl *1 | |||
| LUS-200：C,M,Y,K,W | |||
| LUS-190：C,M,Y,K,W *1 | |||
| LUS-210：C,M,Y,K,W *1 | |||
| Capacity | 1L bottle | ||
| Ink circulation | Circulation in damper MCTv2 | ||
| Maximum print width | 1,360mm (53.5") | 1,610mm (63.4") | |
| Media | Maximum width | 1,370mm (53.9") | 1,620mm (63.8") |
| Thickness | 1 mm or lower | ||
| Roll diameter | φ250 mm or less | ||
| Mountable no. | Standard : 1 roll / Option : 3 rolls (with the Media changer) | ||
| Roll weight | One roll：Max. 45 kg (99.2 lb) or less | ||
| Three rolls：Total 90 kg (198.4 lb) or less | |||
| Roll inside diameter | 2 inch / 3 inch | ||
| Media cutting | Auto cutting by cutter of head unit *2 | ||
| Cutting function | Cutting speed | Max. 300 mm/s | |
| Acceleration | Max. 0.5G | ||
| Cutting pressure | 10 - 450 gf | ||
| Cutter response times | 10 times/sec | ||
| Repeatability | ±0.2 mm (Excluding shrinkage / expansion caused by the film temperature) | ||
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | ||
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, | ||
| CE Marking (EMC, Low voltage, Machinery directive, and RoHS), | |||
| CB, REACH, Energy Star, RCM, KC, UKCA | |||
| Power supply | Single phase AC100-120V±10% /12A or | ||
| Single phase AC200-240V±10% /6A | |||
| 50/60Hz±1Hz | |||
| Power consumption | Max.1,440W or less ×1 / 800W (Continuous operation) / 4.5W or less (Sleep mode) | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) | ||
| Humidity: 35–65% Rh (Non condensing) | |||
| Recommended temperature: 20–25 °C (68–77 °F) | |||
| Dust level: General office level | |||
| Dimensions (W x D x H) | 2,640 x 800 x 1,480mm | 2,890 x 800 x 1,480mm | |
| (103.9 x 31.5 x 58.3") | (113.8 x 31.5 x 58.3") | ||
| Machine weight | 217kg (478.4 lb) | 227kg (500.4 lb | |
Product Application
