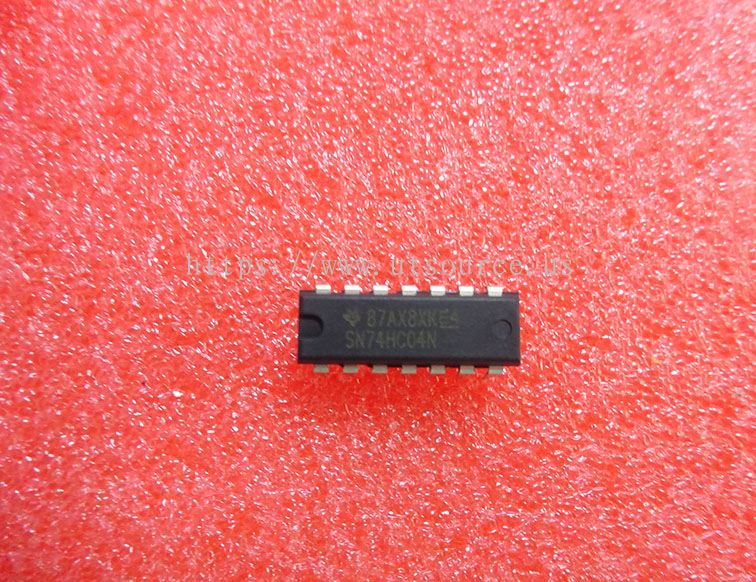

BUY 74HC04N https://www.utsource.net/itm/p/958692.html
Hex inverter - Description: Hex Inverter ; Logic switching levels: CMOS ; Number of pins: 14 ; Output drive capability: +/- 5.2 mA ; Power dissipation considerations: Low Power or Battery Applications ; Propagation delay: 7@5V ns; Voltage: 2.0-6.0 V
Description: Hex Inverter
Features:
- High-speed operation: tpd = 6 ns (typical) at VCC = 5 V
- Low power dissipation: ICC = 4 μA (maximum) at TA = 25°C
- High noise immunity: VNIH = VNIL = 28% VCC (min)
- Balanced propagation delays: tPLH tPHL
- 5 V, 10 V, and 15 V parametric ratings
- Inputs accept voltages to 5.5 V
- Outputs source/sink 24 mA
- Latch-up performance exceeds 250 mA per JESD 78, Class II
- ESD protection:
- Human-body model > 2000 V
- Machine model > 200 V
- Charged-device model > 1000 V
Applications:
- Interface between digital and analog signals
- Level shifting
- Clock generation
- Signal buffering
- Waveform generation
- Logic gating and inverting
(For reference only)
