Description

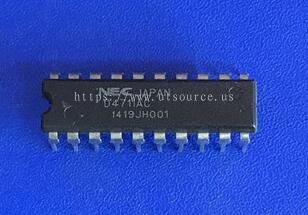

BUY D4711AC https://www.utsource.net/itm/p/359926.html
| Parameter |
Value |
Unit |
| Type |
Diode |
- |
| Part Number |
D4711AC |
- |
| Maximum Reverse Voltage (Vr) |
1000 |
V |
| Maximum Forward Current (If) |
1 |
A |
| Peak Pulse Current |
8.3 |
A |
| Reverse Recovery Time (trr) |
350 |
ns |
| Operating Temperature Range |
-55 to 175 |
°C |
| Mounting Type |
Surface Mount |
- |
| Package/Case |
DO-214AC |
- |
Instructions:
- Handling Precautions: Handle the D4711AC with care to avoid damage to the component or contamination of the leads.
- Soldering: Ensure that the soldering temperature does not exceed the maximum allowable temperature for extended periods. Follow standard surface mount technology (SMT) reflow profiles.
- Storage: Store in a dry, cool place away from direct sunlight and corrosive substances.
- Application: Suitable for use in circuits requiring high reverse voltage capability and moderate current handling, such as power supplies and protection circuits.
- Mounting: Ensure proper orientation during mounting to avoid reverse polarity issues which can lead to component failure.
- Testing: After installation, verify the functionality of the circuit to ensure correct operation of the diode.
(For reference only)
