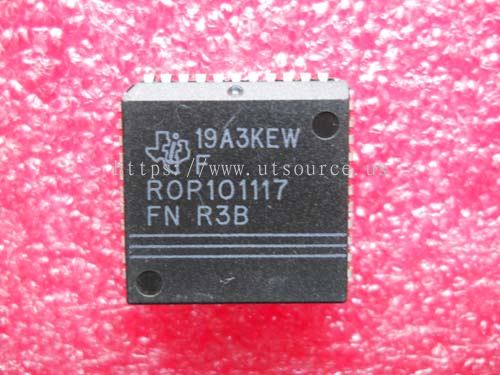

ROP101117: Top Choice in United States (USA) Utsource Holding Company Limited

Description

Parameter	Description	Value	Unit
Part Number	Unique identifier for the component	ROP101117	-
Type	Component type	Optocoupler	-
Input Current	Maximum input current	60	mA
Output Current	Maximum output current	50	mA
Isolation Voltage	Minimum isolation voltage	5000	Vrms
Operating Temperature	Temperature range for operation	-40 to +110	°C
Rise Time	Time taken for output to rise from 10% to 90%	2	μs
Fall Time	Time taken for output to fall from 90% to 10%	2	μs
CTR (Current Transfer Ratio)	Ratio of output to input current	Min: 50, Max: 600	%
Supply Voltage	Recommended supply voltage	5.5	V

Handling and Storage: Store in a dry, cool place away from direct sunlight. Handle with care to avoid damaging the leads or body.
Mounting: Ensure proper orientation during mounting to prevent incorrect connections. Use appropriate soldering techniques to ensure reliable joints.
Electrical Connections: Verify all electrical connections match the datasheet specifications. Do not exceed the maximum ratings for input and output currents.
Testing: After assembly, test the device under specified operating conditions to ensure functionality. Check for proper isolation and signal transfer characteristics.
Operating Environment: Ensure the operating temperature remains within the specified range to maintain performance and longevity.
Safety Precautions: Be cautious when working with high isolation voltages. Follow all safety guidelines to prevent injury or damage.

(For reference only)
