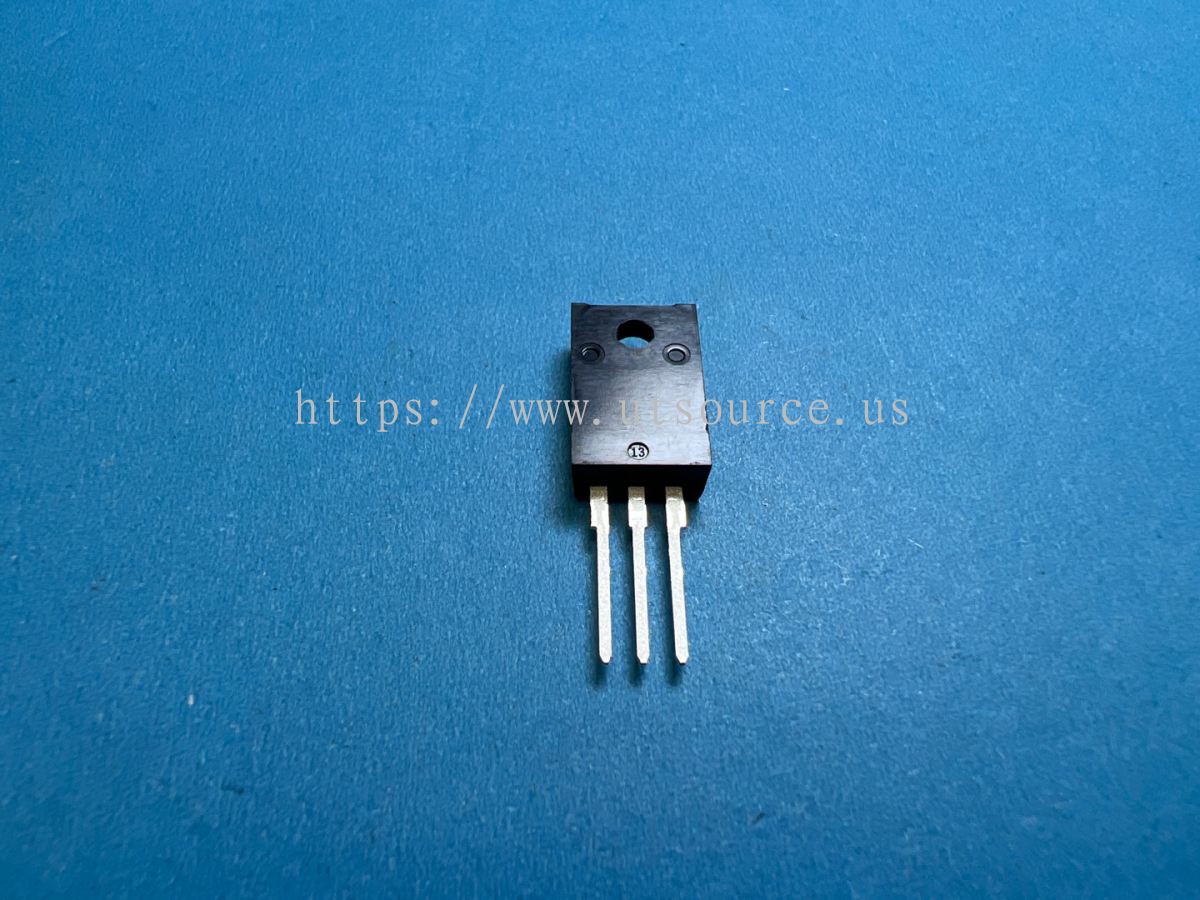

STF13N80K5

BUY STF13N80K5 https://www.utsource.net/itm/p/8941799.html

Instructions for Use:

1. Handling Precautions:

   • The STF13N80K5 is sensitive to electrostatic discharge (ESD). Use proper ESD protection measures during handling and installation.
   • Avoid exposing the device to temperatures outside its specified operating range.

2. Mounting:

   • Ensure that the device is mounted on a heatsink with adequate thermal conductivity to maintain the junction temperature within safe limits.
   • Use thermal paste or a thermal pad between the device and the heatsink to improve heat transfer.

3. Biasing:

   • Apply the gate-source voltage (V_GS) carefully to avoid exceeding the maximum ratings. The typical threshold voltage (V_GS(th)) is around 4 V.
   • Ensure that the gate is properly driven to minimize switching losses and avoid partial turn-on conditions which can lead to overheating.

4. Current Limitation:

   • Do not exceed the continuous drain current (I_D) ratings, especially at higher ambient temperatures.
   • For pulse applications, ensure that the pulse duration and frequency do not exceed the safe operating area (SOA) of the device.

5. Thermal Management:

   • Monitor the junction temperature (T_J) to ensure it does not exceed 175°C.
   • Use forced air cooling or liquid cooling if necessary to keep the device within its thermal limits.

6. Storage:

   • Store the device in a dry, cool place away from direct sunlight and sources of heat.
   • Follow the recommended storage temperature range to prevent damage.

7. Testing:

   • When testing the device, use appropriate test equipment and follow safety guidelines to prevent damage to the device or injury to personnel.

8. Datasheet Reference:

   • Always refer to the latest datasheet from STMicroelectronics for the most accurate and detailed information about the STF13N80K5.
