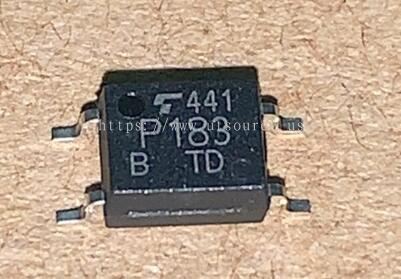

TLP183

BUY TLP183 https://www.utsource.net/itm/p/8941817.html

Instructions for Using TLP183:

1. Forward Voltage (V_F):

   • Ensure that the forward voltage across the LED does not exceed 1.6V when the forward current is 20mA to avoid damaging the device.

2. Peak Forward Current (I_F(surge)):

   • The device can handle peak currents up to 1.5A for a pulse duration of 10ms with a repetition rate of 10%. Exceeding these limits can cause permanent damage.

3. Continuous Forward Current (I_F):

   • The continuous forward current should not exceed 50mA at ambient temperature (T_A = 25°C). Higher temperatures may require derating the current.

4. Reverse Voltage (V_RRM):

   • The maximum reverse voltage that can be applied is 5V. Exceeding this value can lead to breakdown and potential damage.

5. Reverse Current (I_R):

   • The reverse current should be kept below 1μA when a reverse voltage of 5V is applied to ensure reliable operation.

6. Output Current (I_C):

   • The output current should not exceed 150mA to maintain the collector-emitter saturation voltage within safe limits.

7. Collector-Emitter Saturation Voltage (V_CE(sat)):

   • When the output current is 100mA, the collector-emitter saturation voltage should be between 0.4V and 0.7V. Higher voltages indicate the device may be approaching its limits.

8. Storage Temperature Range (T_STG):

   • Store the device in an environment where the temperature ranges from -40°C to 100°C to prevent damage.

9. Operating Temperature Range (T_A):

   • The device is designed to operate within an ambient temperature range of -40°C to 85°C. Ensure proper heat dissipation if operating near the upper limit.

10. Handling Precautions:

    • Handle the device with care to avoid mechanical stress.
    • Use appropriate ESD protection measures to prevent electrostatic discharge damage.
    • Ensure all connections are secure and correctly wired to prevent short circuits or open circuits.
