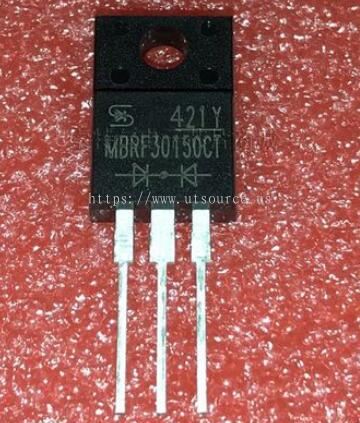

MBRF30150CT

BUY MBRF30150CT https://www.utsource.net/itm/p/11533821.html

Instructions for Use:

1. Mounting:

   • Ensure proper heat sinking to maintain the junction temperature within the specified limits.
   • Use a thermal compound between the diode and the heat sink for better thermal conductivity.

2. Electrical Connections:

   • Connect the diode with correct polarity. The cathode (positive) is typically marked on the diode.
   • Ensure all connections are secure to prevent mechanical stress and potential failure.

3. Surge Current Handling:

   • Do not exceed the peak surge current (IFSM) for more than a few milliseconds to avoid damage.
   • Use derating factors if the diode will be subjected to frequent surges.

4. Reverse Voltage:

   • Ensure that the peak repetitive reverse voltage (VRRM) is not exceeded to prevent breakdown.
   • Consider using a snubber circuit to protect against voltage spikes.

5. Operating Temperature:

   • Operate the diode within the specified junction temperature range to ensure reliable performance.
   • Monitor the temperature during operation and adjust the cooling if necessary.

6. Storage:

   • Store the diode in a dry, cool environment within the storage temperature range to prevent damage.
   • Handle with care to avoid mechanical damage or static discharge.

7. Testing:

   • Test the diode using a multimeter or diode tester to ensure it is functioning correctly before installation.
   • Regularly inspect the diode for signs of wear or damage during maintenance.
