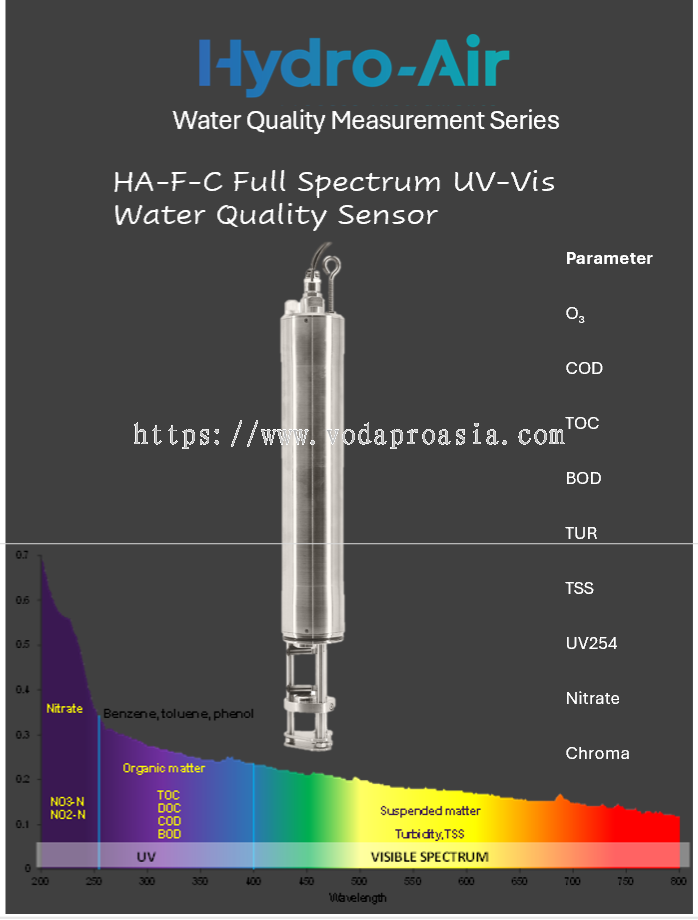

The full spectrum sensor adopts the measurement principle of UV-Vis absorption spectroscopy to monitor the “light pattern” (fingerprint) information in the wavelength range of 200-800 nm online in real-time and realize multi-parameter measurement through AI algorithm, including O3, COD, TOC, DOC, BOD, TUR, TSS, nitrate, chroma, etc.
HA-F-C series full-spectrum adopts a configurable measuring range design, with a measuring range of 40 mm-150 mm that can be set continuously. It supports automatic window cleaning and can be applied to various water quality measurements; it supports in-situ and flow-through installation.
It is mainly used for real-time online monitoring of water quality in waterworks, water distribution networks, and secondary water supply and online monitoring of surface water and groundwater quality.
| Item | Specification |
|---|---|
| Principle | Ultraviolet-Visible(200nm-800nm) |
| Dimension | φ66×536mm |
| Power requirements | DC+12V~+24V |
| Measurement period | 10 seconds to 65535 seconds |
| Operating temperature | 0 to 50℃ |
| Pressure | 6bar |
| Power | < 8W |
| Material | AISI 316L, Titanium Alloy is available |
| Cleaning method | Cleaning brush |
| IP rating | IP68 |
| Sample flow rate | <3m/s |
| Communication | RS485(Modbus RTU), WiFi, Bluetooth |
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| COD | 80 mm (Typical) | 0-15 mg/L | 0.01 mg/L | ±0.5 mg/L |
| 40 mm (Min) | 0-50 mg/L | 0.01 mg/L | ±3% or ±1 mg/L | |
| TUR | 80 mm (Typical) | 0-15 NTU | 0.01 NTU | ±1 NTU |
| 40 mm (Min) | 0-50 NTU | 0.01 NTU | ±5% or ±1 NTU | |
| NO3-N | 80 mm (Typical) | 0-0.5 mg/L | 0.01 mg/L | ±0.05 mg/L |
| 40 mm (Min) | 0-2.5 mg/L | 0.01 mg/L | ±0.1 mg/L | |
| O3 | 100 mm (Typical) | 0-0.5 mg/L | 0.001 mg/L | ±5% F.S. |
| 40 mm (Min) | 0-1.5 mg/L | 0.01 mg/L | ±5% F.S. | |
| TOC | 80 mm (Typical) | 0-6 mg/L | 0.01 mg/L | ±0.3 mg/L |
| 40 mm (Min) | 0-10 mg/L | 0.01 mg/L | ±0.5 mg/L | |
| Chroma | 80 mm (Typical) | 0-15 PCU | 1 PCU | ±10% F.S. |
| 40 mm (Min) | 0-100 PCU | 1 PCU | ±10% F.S. | |
| Temperature | HA-F-C | 0-60 °C | 0.0625 °C | ±1 °C |
