| ITEM/MODEL |
UNIT |

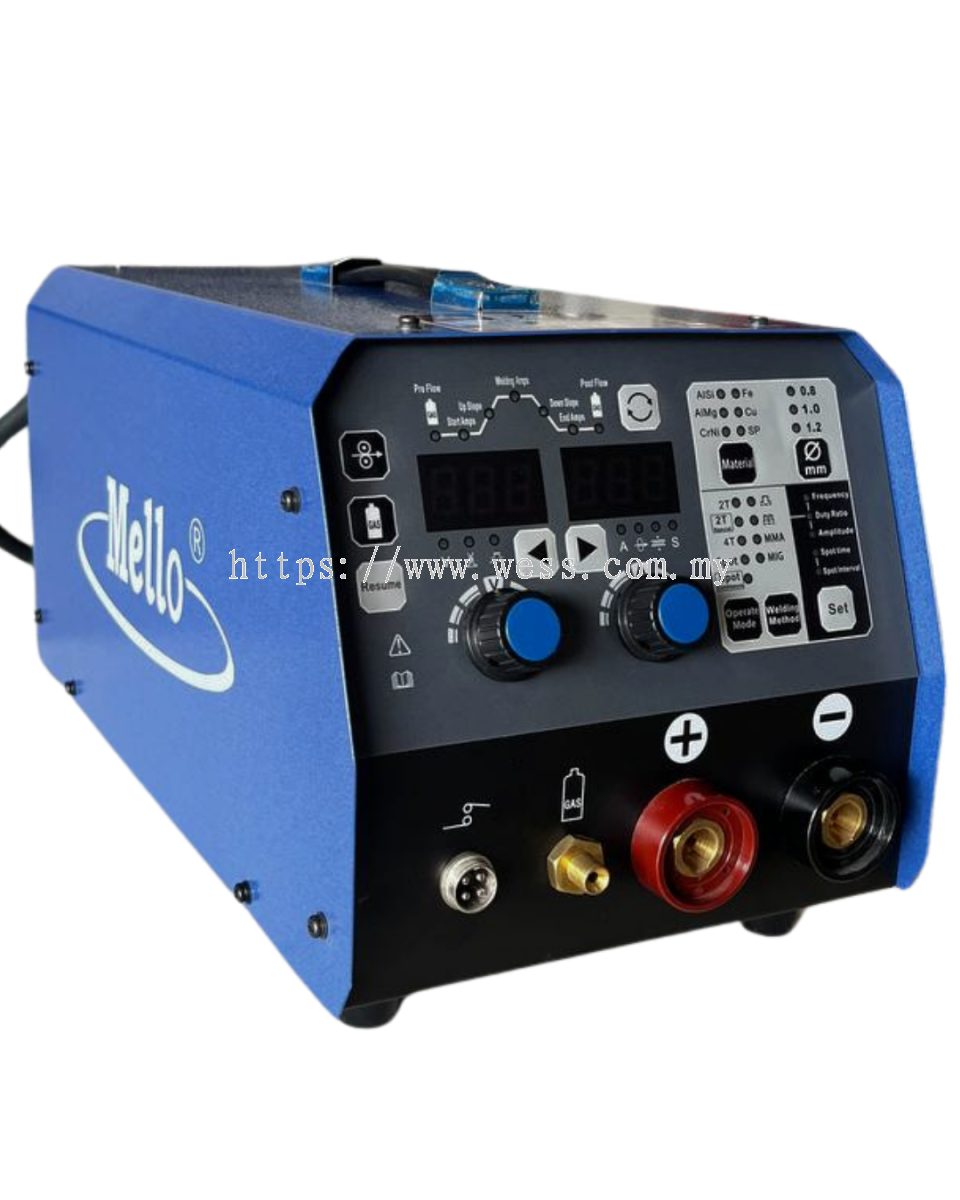

MFL 200 |
| Input Power Voltage |
V |
AC240V |
| Input Frequency |
Hz |
50/60 |
| Rate Input Power Capacity |
KVA |
4.6 |
| Rated Input Current |
A |
13.9 |
| Rated Duty Cycle |
% |
60 |
| Efficiency |
% |
≥85 |
| Open Current Range |
A |
Pulse Mode: 25-160 |
| Non-Pulse Mode: 25-200 |
| Wire Diameter |
MM |
ɸ0.8-ɸ1.2 |
| Welding Material |
|
Aluminium ; Aluminium Alloy; Low Carbon Steel; Low Alloy Steel; Stainless Steel; Copper |
| Welding Selection |
|
ɸ1.0-ɸ1.2 (4043/5356): Aluminium Wire |
| |
ɸ0.8-ɸ1.0: Stainless Steel; Steel Wire; Other Solid Wire/ Flux Cored Wire |
| Gas Flow Rate |
L/min |
5~15 |
| Power Factor |
|
≥0.93 |
| Insulation Grade |
|
F |
| Weight (G.W / N.W) |
KG |
16/ 8.2 |
| Dimension (LxWxH) (M/C) |
MM |
390*210*220 |
| Dimension (LxWxH) (CTN) |
MM |
560*270*140 |
| Remark |
|
1 Phase |
| Accessories |
|
1*2M Power Cable with Socket |
1* 200A Earth Clamp with 2M 25mm² Welding Cable attached with KDP50 |
| 1*2M MIG Push Gun (Spool Gun) |
1* Contact Tip (M6*25*0.8) |
| 1*2M Air Hose, 2* Hose Clip |
1* Allen Key |
