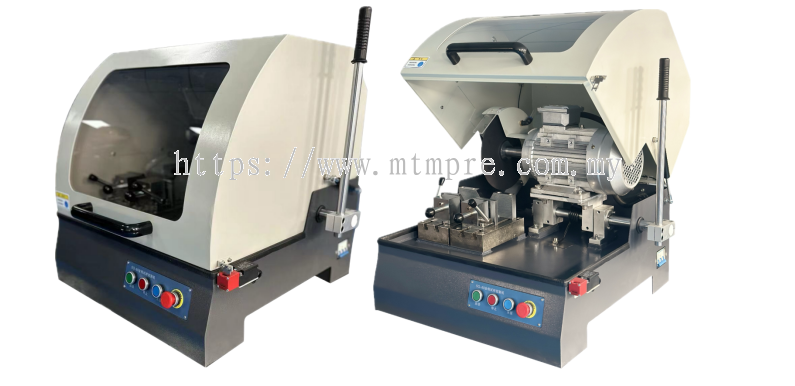

SQ-100 Metallographic sample cutting machine
sample cutting machine, cutter
The SQ-100 manual metallographic cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structures of the materials. This machine is easy to use, safe and reliable, and is one of the necessary equipment for making samples in factories, scientific research units and laboratories of universities and colleges.
² This machine is a manual cutting machine, which can grasp and control the cutting progress at any time;
² Fully enclosed design with glass cover, allowing real-time observation of cutting dynamics, taking into account both safety and convenience;
² The ultra-large workbench and ultra-long cutting distance make cutting large specimens a reality, and it has the function of moving up and down, which greatly compensates for the loss of the grinding wheel;
² Equipped with a cooling device, the configured coolant can be used to take away the heat generated during cutting to prevent the sample from overheating and burning the sample tissue.
Technical Parameter:
| Cutting Method |
Manual |
| Spindle rotating speed |
2800R/M |
| Max cutting Dia. |
Ф100mm |
| Cooling system |
water cooling |
| Cutting wheel |
300×2×32mm |
| Motor Power |
3KW |
Workbench size
|
230*230mm
|
| Cooling Liquid Tank |
Cooling Liquid Tank 60L |
| Machine size |
750mmX760mmX700mm |
| Packing Size |
Main machine: 840*840*800mm,water tank:650*450*490mm |
| Power supply |
380V,50HZ |
| NW & GW |
Main machine: 125/145kgs, water tank: 21/30kgs |
Standard Accessories：
In and out water tube each 1pc Abrasive cutting wheel 2pcs LED light 1set
Environmental protection dust removal device: 1set quick clamps : 1set
Maintenance:
1. After cutting, please clean the cutting chamber with clean water and keep it clean and free of debris to reduce machine failure;
2. Do not use sharp objects to collide with the display screen to prevent damage to the display screen;
3. Please do not change the electrical circuits and programs at will to prevent faults and dangers;
4. It is recommended to clean and lubricate the quick clamping device regularly to extend its service life;
5. Check the cutting fluid level at least once a week to maintain an appropriate water level;
6. Lubricate and maintain the equipment regularly, once a week is recommended;
Special attention should be paid to the storage of phenolic resin cutting sheets. These cutting sheets are sensitive to moisture. Therefore, do not mix wet cutting sheets with new, dry cutting sheets. Please store the cutting sheets in a dry place and place them horizontally on a support surface.
