SIC Marking E-MARK XL Portable Dot Peen Marking Machine
Large marking window
Autonomous and mobile
Robust and compact
The E-MARK XL is a cordless portable dot peen marking machine that features
A VERY LARGE MARKING WINDOW: 120 x 40 mm.
It can operate for long periods on its integral battery.
This
MOBILE AND PORTABLE MARKING MACHINE is fully autonomous due to its integral 18V Li-Ion battery, giving up to
4 HOURS OF CONTINUOUS USE.
The E-MARK XL comes with two batteries and a fast charger, in a convenient carrying case, which allows you to continue working with one battery while the other is being charged.
The E-Mark XL is a robust design with a cast alloy base. It is particularly suitable for
DEMANDING INDUSTRIAL ENVIRONMENTS. Its high striking force makes it especially suitable for marking heavy or very large parts.
The E-MARK XL is also
ERGONOMIC AND VERY EASY TO USE.
For example, the stylus/piece distance is very simple to adjust using the adjustment knob under the marking head.
The E-MARK XL is also a very light marking gun (3.6 kg), in spite of its basic metal structure.
The E-MARK XL can mark
alphanumeric text,
logos, or
2D Datamatrix codes.
The dot peen technology provides
RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.
Zoom

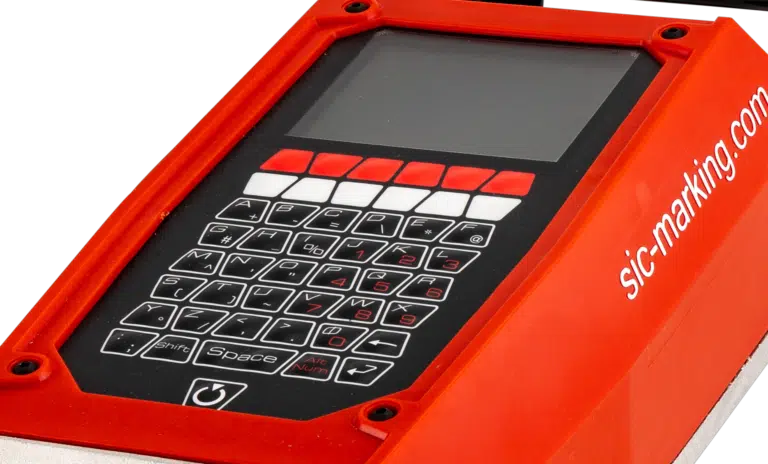

The E-MARK XL has an onboard
E1 CONTROLLER and new software that allow all your marking files to be easily programmed or modified, directly on the marking gun.
The software is very
INTUITIVE and is controlled through a big colour screen, protected by a plastic membrane.
A PC
SOFTWARE SUITE (supplied) also allows marking files to be created, and transferred to the marking gun through its integral USB port.
Mechanical specifications
| Dimensions |
330 x 254 x 270 mm |
| Marking window |
120 x 40 mm |
| Weight |
3.6 kg |
Electronic specifications
| Memory |
100 MB |
| Colour LCD screen |
320 x 240 pixels |
| Keyboard |
49 keys, with protection membrane |
| Power |
100W |
| Battery |
Li-ion 18V (4 hours normal operation) |
Control software
| Marking |
Alphanumeric, serial numbering or text, Datamatrix code, logo |
| Marking file capacity |
Transfer through USB memory stick |
| Fonts |
4×6, Arial, Courier, OCR, OCR-A, OCR_BOLD, Comic and Comic_B |
| Edit or create files |
Access to all parameters |
| Impact force |
1 to 9 |
| Marking depth |
0.3 mm depending on material |
| Dot spacing resolution |
0.05 mm |
| Password |
1 level |
Options
1D/2D BLUETOOTH BARCODE READER
The 1D/2D barcode reader is used to select marking files and also to enter variable data.
There is a choice of two readers; one only reads 1D codes and the other is multi-function for 1D and 2D codes, capable of reading printing on paper or labels.
The code’s content is entered in the marking file as a variable.
The text read can be marked in full or divided into several parts.
This option ensures a high level of security.
No risk of error due to manual entry.
The data read can be displayed on the SIC controller screen.
The various codes read are Codabar, Code 25 industrial, Code 25 interlaced, Code matrix 25, Code 25 standard, Code 39, Code 93, Code 128, Code EAN-8, Code EAN-13, Code UPC-E, Code MSI and Code 11.
The benefits:
- The reader and machine are connected by a radio link and therefore no wiring is required.
- The reader is fully compatible with the entire E1 range.
- The reader is ideal for reading labels, printing on paper, etc.
ATTACHMENT RING + BALANCER
The balancer allows the marking head to be perfectly balanced in all positions.
Its stroke is 2000 mm and its capacity is 3 to 5 kg.
The benefits:
- The tool is designed for industrial use. Its heavy duty plastic case is impact resistant and provides a high degree of protection with a long life cycle.
- The shackle also makes it easily removable.
- It facilitates the operator’s work.
COLUMN BASE FOR PORTABLE MARKING SYSTEM
The column base allows a portable marking system to be used as a marking station.
The benefits:
- Marking runs of small parts, ident. plates, etc.
- Simple and quick handling and setting up.
- Inexpensive conversion of marking guns.
- Simple and multi-function.
- Two complementary applications on one machine.
