EYRO EASY WALL Wall-Mounted Aluminum Tambour Door System
The Perfect Solution for Service Windows & Space Partitions
Product Overview
The EYRO EASY WALL is a specialized aluminum shutter system designed for direct wall-mounted installations. Unlike traditional cabinet-based shutters, this system operates independently of a cabinet carcass. It is the ideal solution for creating functional service hatches, kitchen-to-dining pass-throughs, or securing reception counters in clinics and offices.
Key Features
• Direct Wall Integration: Engineered for surface or wall-mounting, allowing you to transform any wall opening into a functional, secure access point.
• Premium Aluminum Barrier: Built with high-strength aluminum slats that offer superior security and a more professional aesthetic than plastic alternatives.
• Efficient Space Divider: Perfect for "pass-through" windows in restaurants or service counters, providing a clean look when open and a secure barrier when closed.
• Tailor-Made Precision: Fully customizable dimensions to fit your specific architectural requirements, ensuring a seamless fit for any wall opening.
• Durable & Low Maintenance: The industrial-grade aluminum finish is heat-resistant and easy to clean, making it ideal for high-traffic commercial environments.
Technical Specifications
• Application Type: Wall-mounted / Surface-mounted

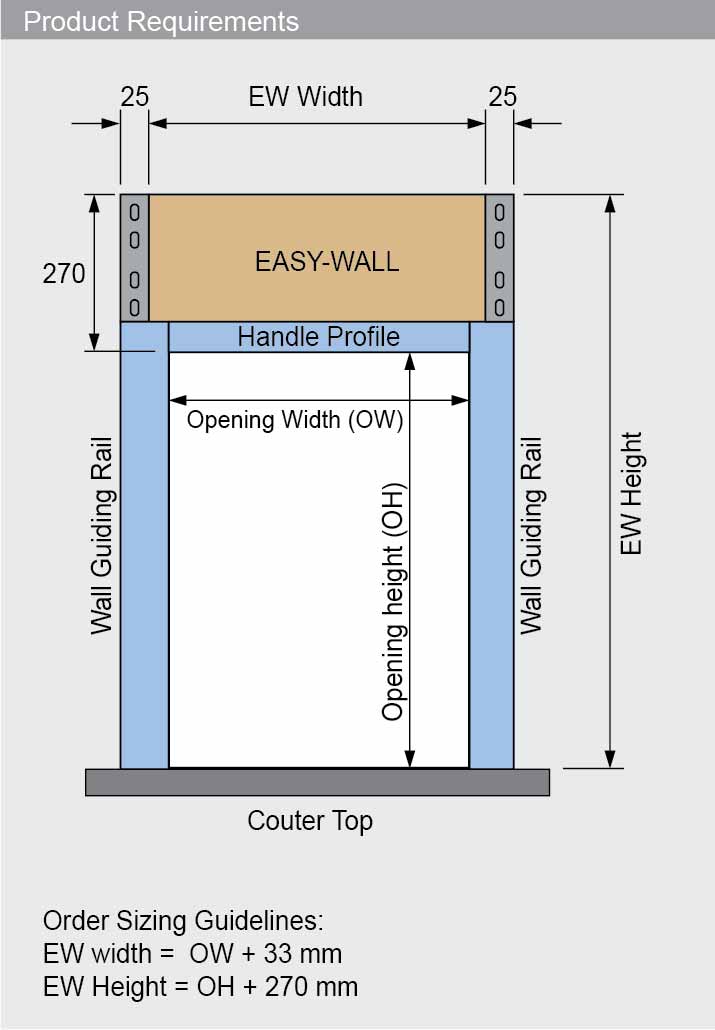

• Maximum Size: Up to W1500 x H2000mm
• Material: Architectural Grade Aluminum
• Ideal For: Service counters, kitchen pass-throughs, clinic receptions, and office partitions.
_________________________________
EYRO EASY WALL Sistem Pintu Tambour Aluminium Lekat Dinding
Penyelesaian Sempurna untuk Tingkap Servis & Pembahagi Ruang
Ringkasan Produk:
EYRO EASY WALL adalah sistem shutter aluminium khas yang direka untuk pemasangan terus pada dinding. Tidak seperti shutter kabinet biasa, sistem ini berfungsi secara bebas tanpa memerlukan badan kabinet. Ia adalah penyelesaian ideal untuk kaunter servis, tingkap penghantaran makanan (pass-through) dapur ke ruang makan, atau kaunter pendaftaran.
Ciri-Ciri Utama:
• Direct Wall Integration: Direka untuk pemasangan permukaan atau dalam dinding, menukarkan sebarang bukaan dinding menjadi akses yang berfungsi dan selamat.
* Penghadang Aluminium Premium: Bilah aluminium berkekuatan tinggi memberikan keselamatan lebih baik dan rupa lebih profesional berbanding plastik.
• Pembahagi Ruang Efektif: Sangat sesuai untuk tingkap "pass-through" di restoran atau kaunter klinik, memberikan rupa kemas semasa dibuka dan penghadang selamat semasa ditutup.
• Ukuran Custom Tepat: Dimensi boleh diubahsuai sepenuhnya mengikut keperluan struktur bangunan anda untuk padanan yang sempurna.
• Tahan Lama & Mudah Dijaga: Permukaan aluminium gred industri tahan haba dan mudah dibersihkan, sesuai untuk persekitaran komersial yang sibuk.
Had Saiz Rekomendasi
• Saiz Maksimum: Sehingga W1500 x H2000mm
• Jenis Pemasangan: Lekat pada Dinding (Wall-mounted) / Pemasangan Permukaan (Surface-mounted)
__________________________________
EYRO EASY WALL 墙装式铝合金卷帘门系统
服务窗口与空间隔断的完美解决方案
产品综述
EYRO EASY WALL 是一款专为墙体安装设计的铝合金卷帘系统。与传统的橱柜卷帘不同，该系统无需橱柜支撑，可直接固定在墙面上。它是打造功能性出餐口、厨房传菜窗或诊所及办公室接待柜台的理想选择。
核心功能
• 直接墙体集成： 专为墙面或表面安装设计，让您可以将任何墙部开口转化为功能性且安全的出入通道。
• 优质铝材屏障： 采用高强度铝合金叶片，不仅比塑料材质更坚固安全，更赋予空间一种现代工业的专业美感。
• 高效空间分隔： 非常适合餐厅的“传菜口”或各类服务柜台，开启时视觉整洁，关闭时则是坚固的防护屏障。
• 精准尺寸定制： 可根据您的建筑结构要求进行全尺寸定制，确保与墙体开口完美适配。
• 耐用且易于维护： 工业级铝材表面耐热且易于清洁，非常适合高频率使用的商业环境。
技术参数
• 安装类型： 墙面安装 / 表面安装
• 最大尺寸： 支持定制，最大可达 W1500 x H2000mm
• 主要材质： 建筑级铝合金
• 适用场景： 服务柜台、厨房出餐窗、诊所接待处、办公室隔断等。

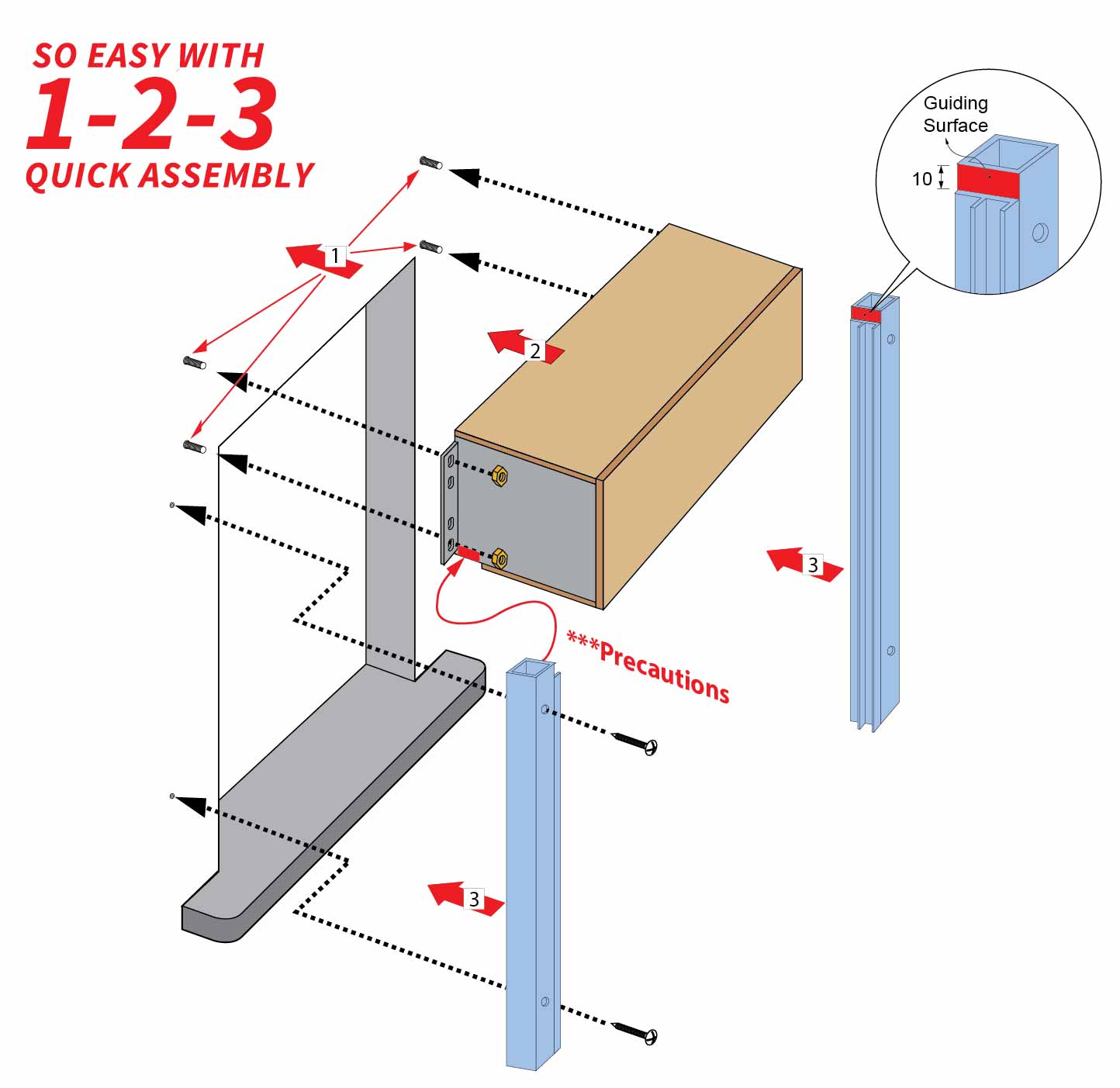

Step 1 — Install wall plugs at correct positions
Mark and drill mounting holes according to the EASY-WALL box template.
Insert appropriate wall plugs (anchors) for your substrate (concrete, brick,
plasterboard, etc.) and make sure each anchor is level and securely fixed.

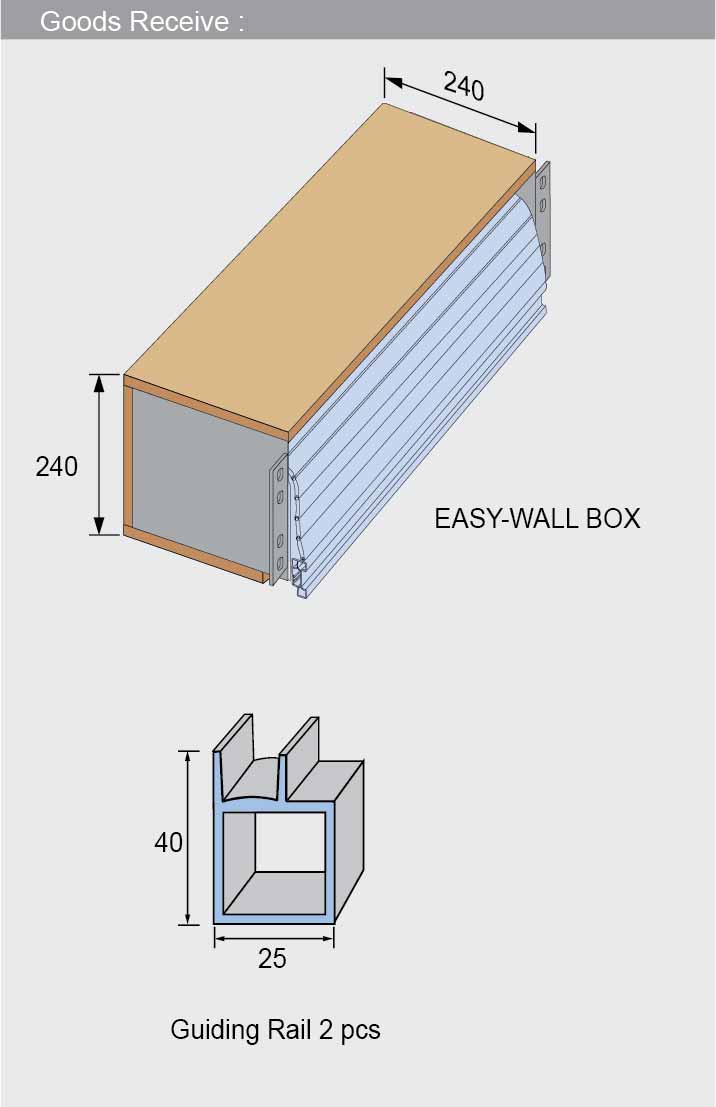

Step 2 — Mount the EASY-WALL box
Lift the preassembled EASY-WALL box into position and fasten it to the prepared anchors.
Check that the box sits flush and square in the opening before fully tightening the fixings.
Step 3 — Install and align the guiding rails
Attach the left and right guiding rails. When fixing, ensure the rails’ guiding surface is snug
against the EASY-WALL box and perfectly level. Secure with appropriate screws and re-check
alignment so the shutter runs true.
