Specifications
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified/ Scheduled/ Auto
- Lens Type: Fixed Focal Lens
- Focal Length: 2.8/4 mm
- Aperture: F1.6
- FOV: 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
- Lens Mount: M12*P 0.5
- DORI Distance: 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
- Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
- IR LED: Quantity: 4
Range: 30m
Wavelength: 850nm
- White LED: Quantity: 4
Range: 30m
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
- Max. Resolution: 2880 X 1620
- Main Stream: Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,
1280x720
Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Sub-Stream: Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Bit Rate Control: CBR, VBR
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
- H.264 Type: High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile*
- H.265+: Main Stream Supported*
- Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
- Image Settings: Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: 120 dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
- SNR: ≥ 52 dB
- Image Parameters Switch: Yes
- Privacy Masking: Up to 4 Masks
- Region of Interest(RoI): 1 Region
- OSD Setting: Yes
- Audio Communication: Two-Way Audio
- Audio Input: Yes
- Audio Output: Yes
- Audio Compression: Yes
- Audio Sampling Rate: 8KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps(G.711 alaw)
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: Open Network Video Interface (Profile S)
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
- Web Browser: Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Smart Event: Human & Vehicle Classification
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned Detection
Object Removal Detection
Loitering Detection
Smart Frame
People Detection
Vehicle Detection
- Basic Event: Motion Detection
Video Tampering Detection
Exception ( Illegal Login)
Scene Change Detection
- Alarm Linkage: Memory Card Video Recording
Message Push
Audible Warning
White Light Flashing
- Linkage Method: N/A
- Output Notification: Message Push
- People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
- Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Alarm: N/A
- Reset Button: Yes
- Power : DC Power Port
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB**
- Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
- Built-in Speaker: Yes
- Audio: N/A
- Operating Temperature: -3060 °C
- Storage Temperature: -4060 °C
- Operating Humidity : 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Package Content: VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
- Material: Metal
- Net Weight: 0.48 Kg
- Power Supply : 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12 W
- Protection: IP67
- Product Dimensions (L x W x H): 111 × 111 × 83.7 mm
- Certifications : CE, NTRA, VCCI, KC, BSMI, FCC, IC
详情

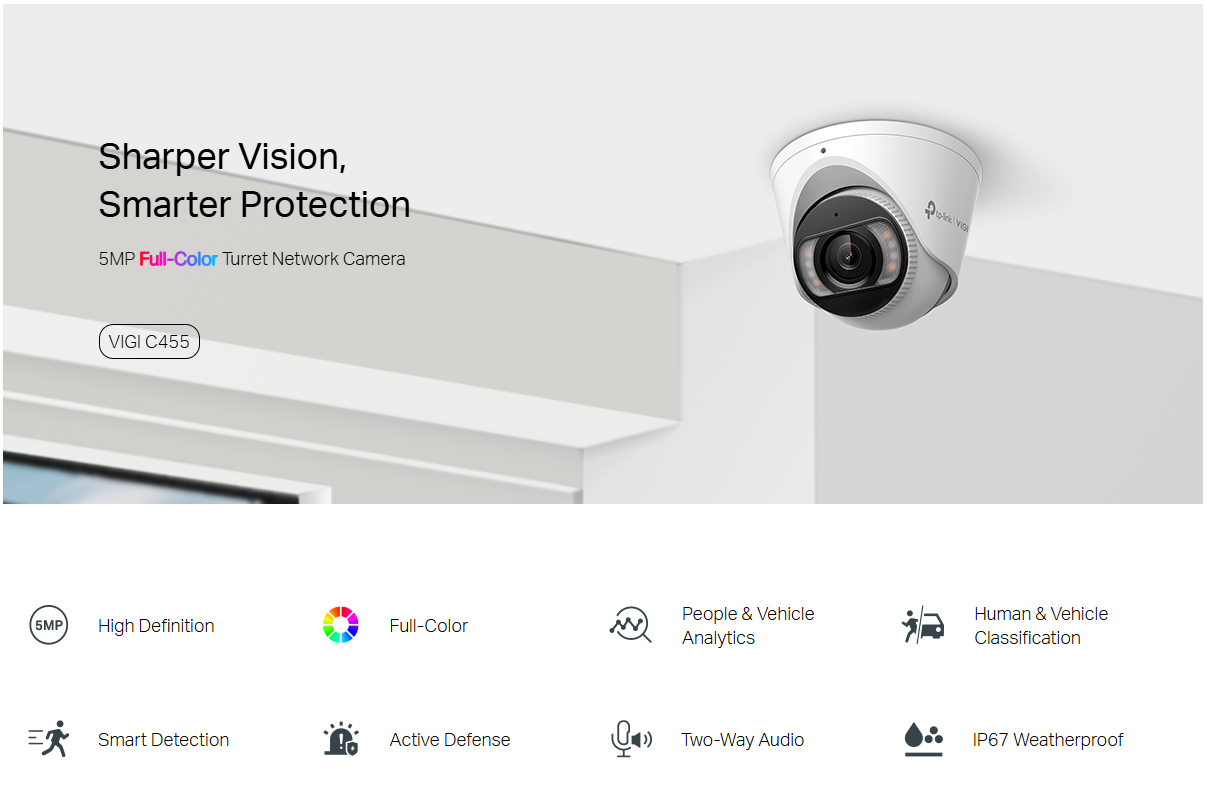

- 5MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
.png)
.png)
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
.png)
Only Human Classification On
.png)
Only Vehicle Classification On
.png)
Smart Video Enhancement Technology
-
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
-
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
