HCP IC68-3 SUBMERSIBLE DEWATERING PUMP - DISCHARGE 6", 7.5HP, 5500W, MAX HEAD 24M, FLOW RATE 2050L/MIN, 78KG

Description

Model: IC68-3

HCP IC68 (made in Taiwan) is submersible dewatering pump for agriculture water supply.

• 3 phase

Features

• The internal casting is treated with high solid painting, which can double the duration of anti-rusting, and extend the lifetime of the product.
• Standard design, incorporating a dry motor with thermal auto-cut that prevents the motor from over heating, and a cast iron motor frame for a faster heat dissipation. As well as an abrasion resistant double mechanical seal and an additional oil seal.
• Water cooled motor to ensure a long life in continuous and intermittent operation, with high efficiency and energy savings.
• An exceptional High-lift and suction impeller design, which allow for dewatering of underground or circulating water applications.
• For above or below surface water applications; the IC pump strainer can be easily removed and replaced with a check valve, which allows for dewatering up to max. 8m deep of underground water and water circulation applications. (W–Well Type)
• New casing cover, with metric thread bolt hole that is easier for valve and adapter connection.
• High solids Epoxy coating prolong metals from corrosion and oxidisation.

Applications

• Agriculture water supply and drainage.
• Water supply for agricultural irrigation systems and underground water pumping.
• Landscape, water feature and horticulture irrigation.
• Extraction of water from rivers, lakes and reservoirs.

Limits of use

• Liquid temperature: 0~40°C (32~104)
• Submersion Depth: 30m (100 ft)

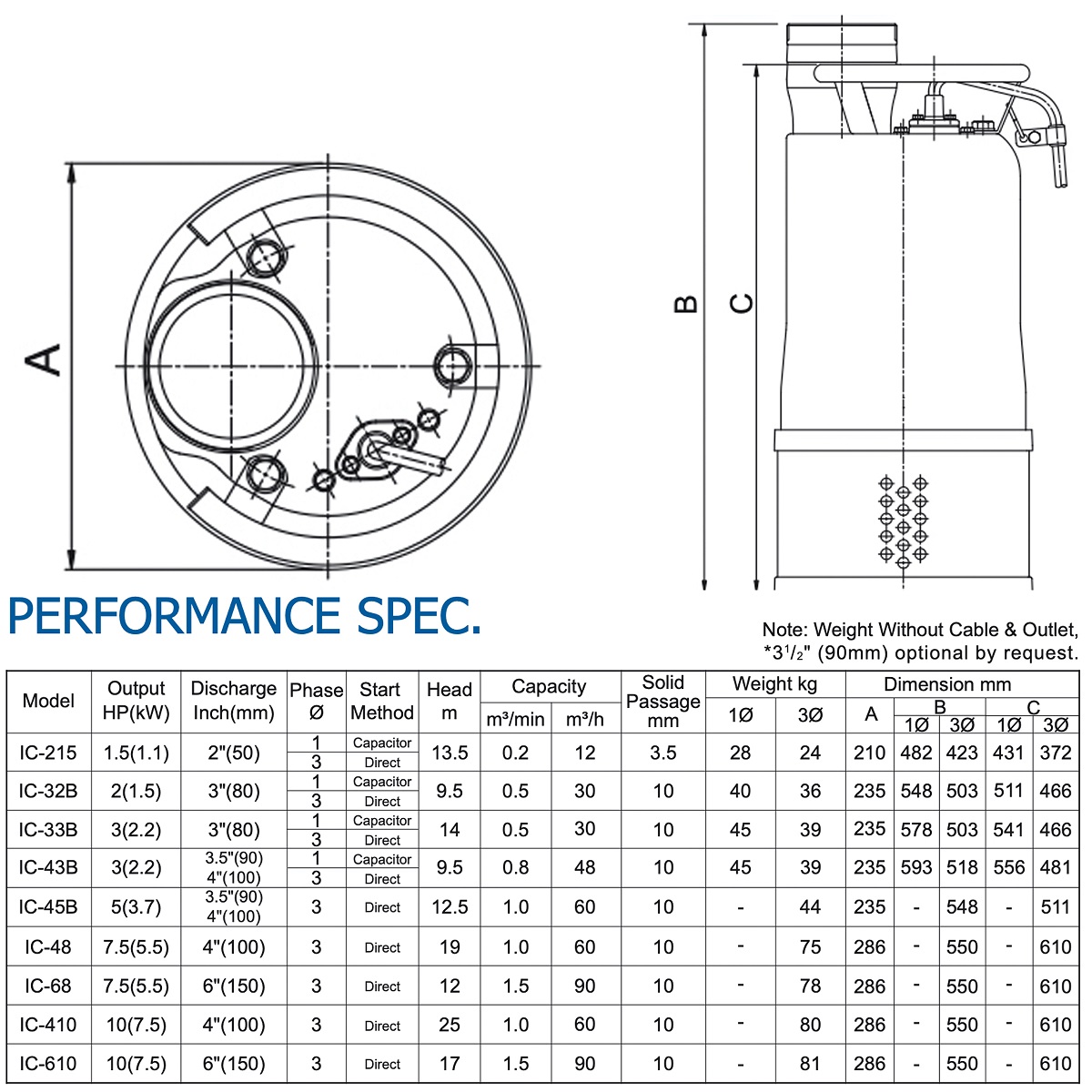

Specifications
