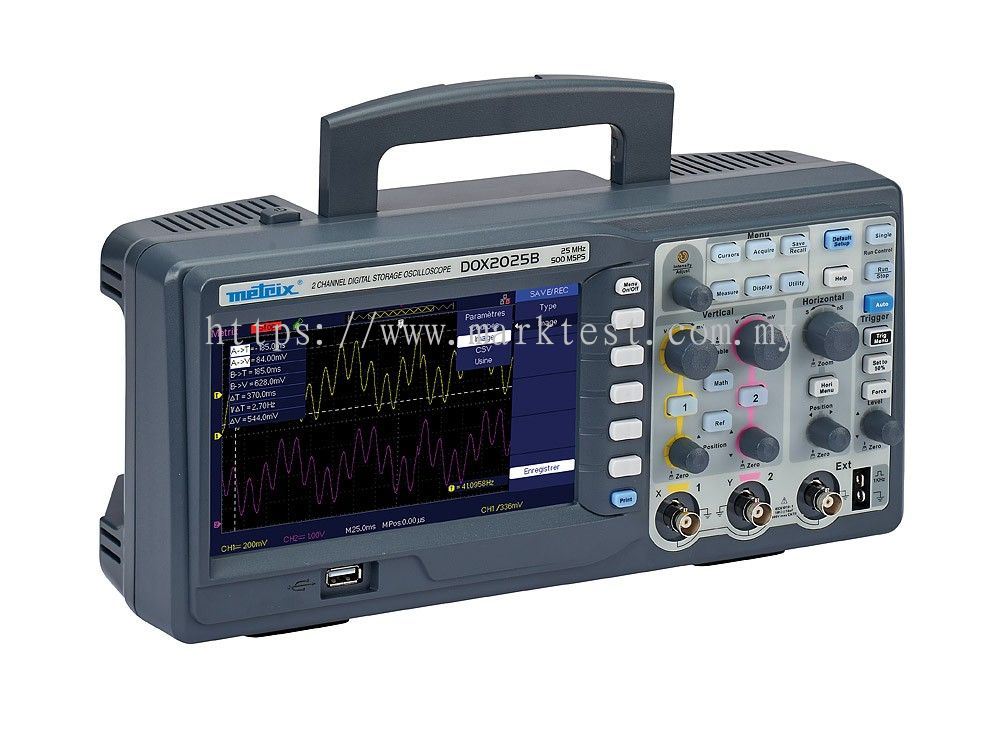

Metrix DOX2025B 2-Channel Benchtop Digital Oscilloscope
Description
The
METRIX DOX2000B Series oscilloscopes are particularly compact and simple to use, with a casing specially designed for laboratory use.
They are equipped with a wide display offering 16 div. in full-screen mode. This allows customization of the display: choice between normal or persistent display, YT or XY format, adjustment of the colours, graticule, brightness, contrast, etc. Rotary buttons and backlit keys give access to the commands on the front panel.
With its handle, the DOX oscilloscope is easy to transport and its non-slip feet make it particularly stable.
High performance and multiple functions for acquisition and analysis
There are
3 acquisition levels for acquisition and analysis, in real time or equivalent time. The memory depth for acquisition is
32 kpoints, with an illimited storage on USB key to optimize your analyses. The vertical sensitivity is from
2 mV/div. to10 V/div. with 12 ranges and the horizontal sensitivity is from 5 ns to 50s/div. Advanced functions arealso available:
simple MATH functions (+/-/x/÷) and "real-time" FFT with simultaneous display of the traces.
Pratical : the Pass/Fail test using a limit envelope.
The
EASYSCOPE software delivered with the product can be used to control and test the oscilloscope and to recover the trace and screenshot files.
Technical specifications:
- 7-inch WGA colour display, resolution 800 X 480
- Full menus in 5 languages + on-screen contextual help in French/English
- 2-channel measurement capture + Ext Trig and complex triggers
- Vertical resolution: 8 bits
- 32 automatic measurements
- Cursors : Manual, tracking and automatic modes
- USB host and device communication
- IEC 61010-1 / 300 V CAT II
2 x25 MHz channels – Sweep speed from 25 ns/div. to 50 s/div.
Sampling rate: one-shot= 250 MS/s (2 channels), 500 MS/s (one channel) / Repetitive = 10 GS/s
Max. memory depth: 32 kpoints + USB Key
REFERENCES
DOX2025B oscilloscope num 2voies 25MHz
DOX2025B
Accessories
2X30MHZ BANANA INPUTS DIFFERENTIAL PROBE
MTX1032-B
2X50MHZ COAX INPUTS DIFFERENTIAL PROBE
MTX1032-C
1x30MHZ HANDHELD DIFFERENTIAL PROBE
MX9030-Z
MH60 OSCILLOSCOPE PROBE 100A ACDC 1MHZ
P01120612
Oscilloscope test circuit
HX0074
E27 AC-DC CURRENT CLAMP
P01120027
