UNIVERSAL LINEAR MANIPULATOR
Linear Manipulator QKK Series
Linear Manipulator QKK Series



Linear Manipulator QKK Series

SEM Equipment Sdn. Bhd. flag
Kategorya: UNIVERSAL LINEAR MANIPULATOR Magagamit
Para sa karagdagang impormasyon, bisitahin ang aming opisyal na website sa sem-eq.com
Bisitahin ang Opisyal na Website Makipag-ugnayan sa amin
Deskripsyon




Model  :






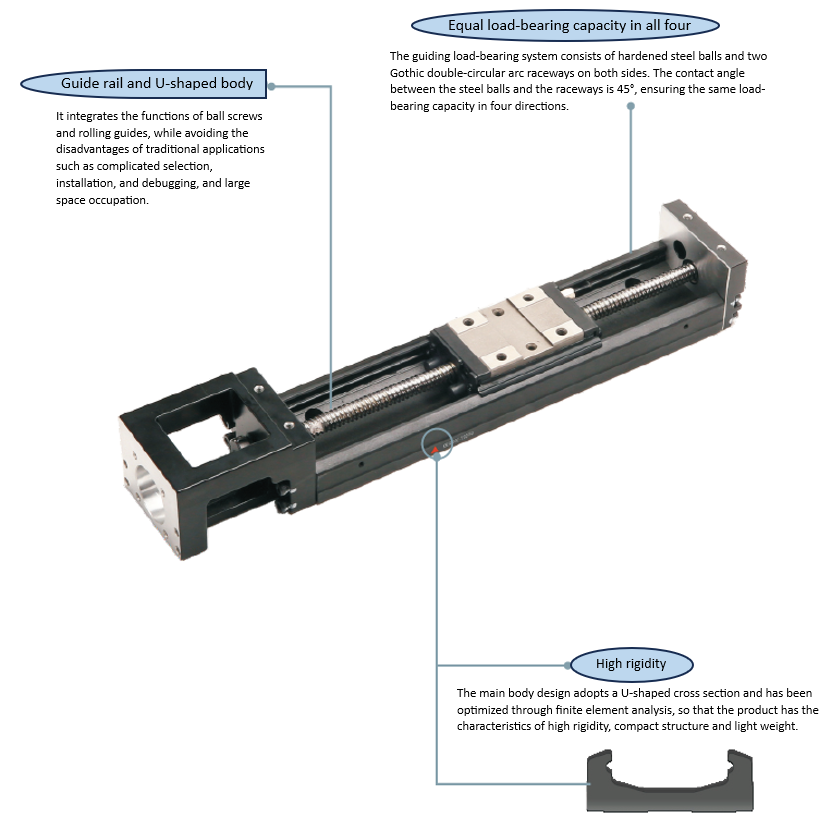

Features :

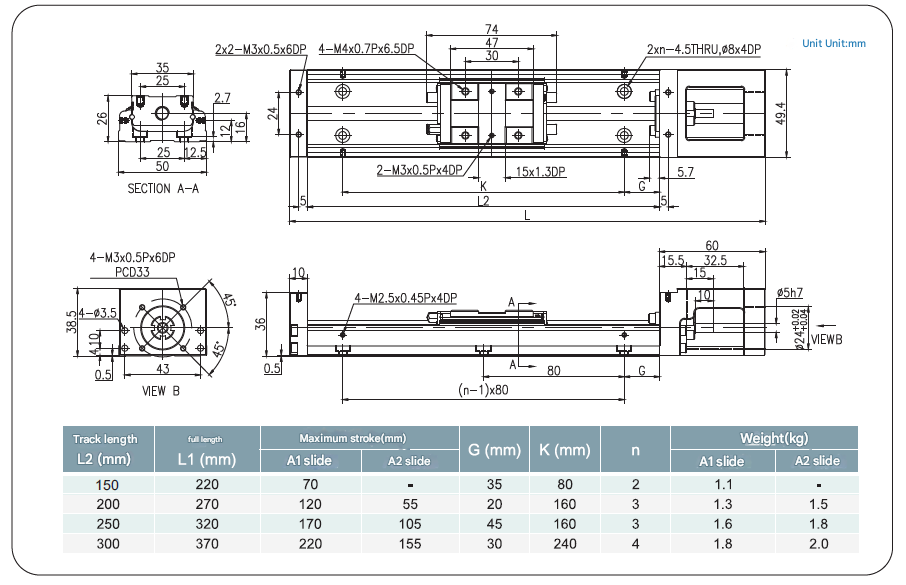

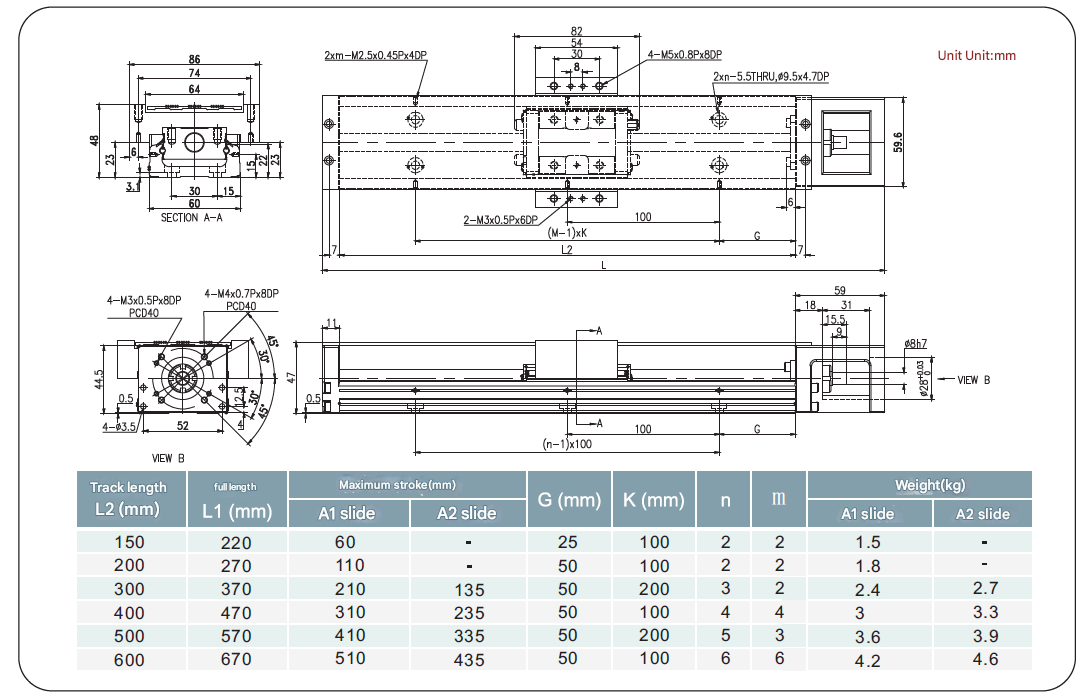

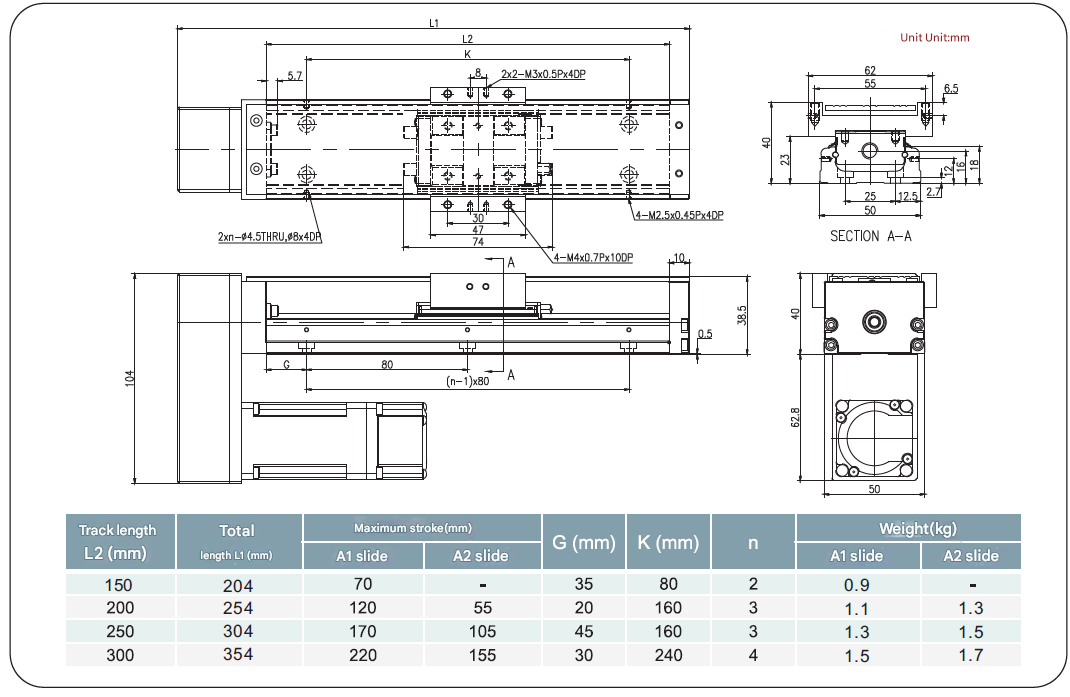

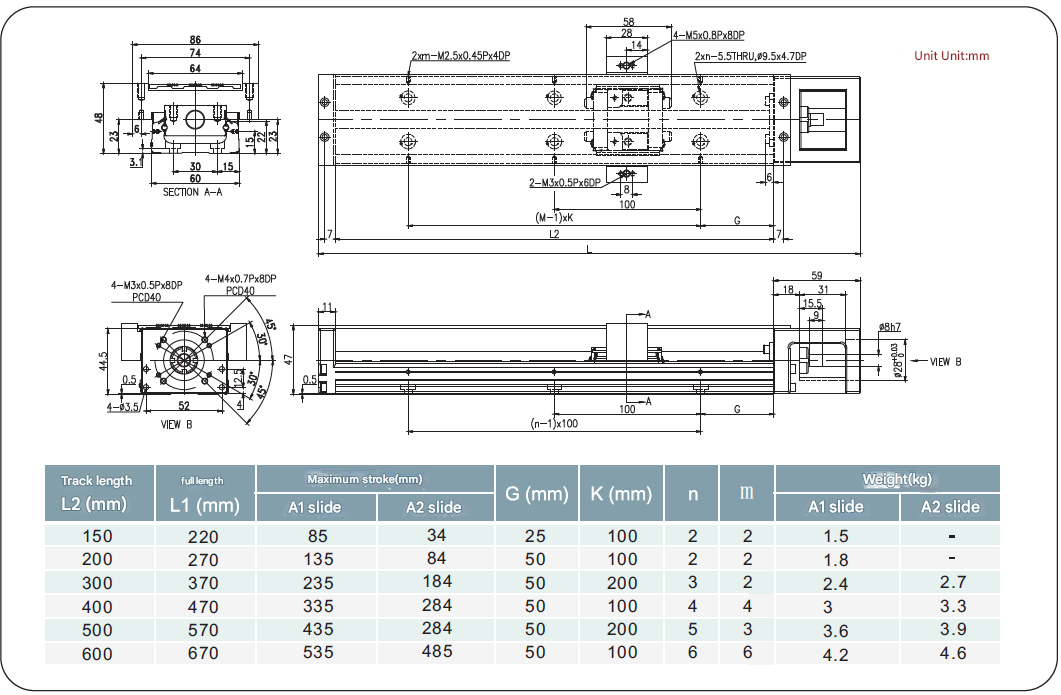

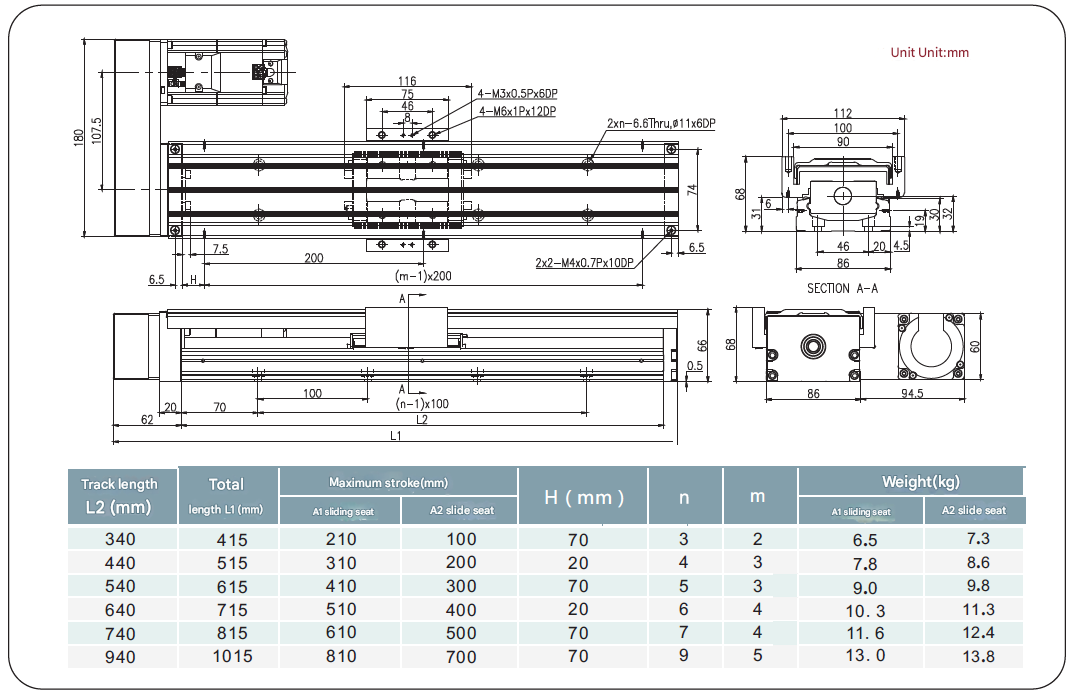

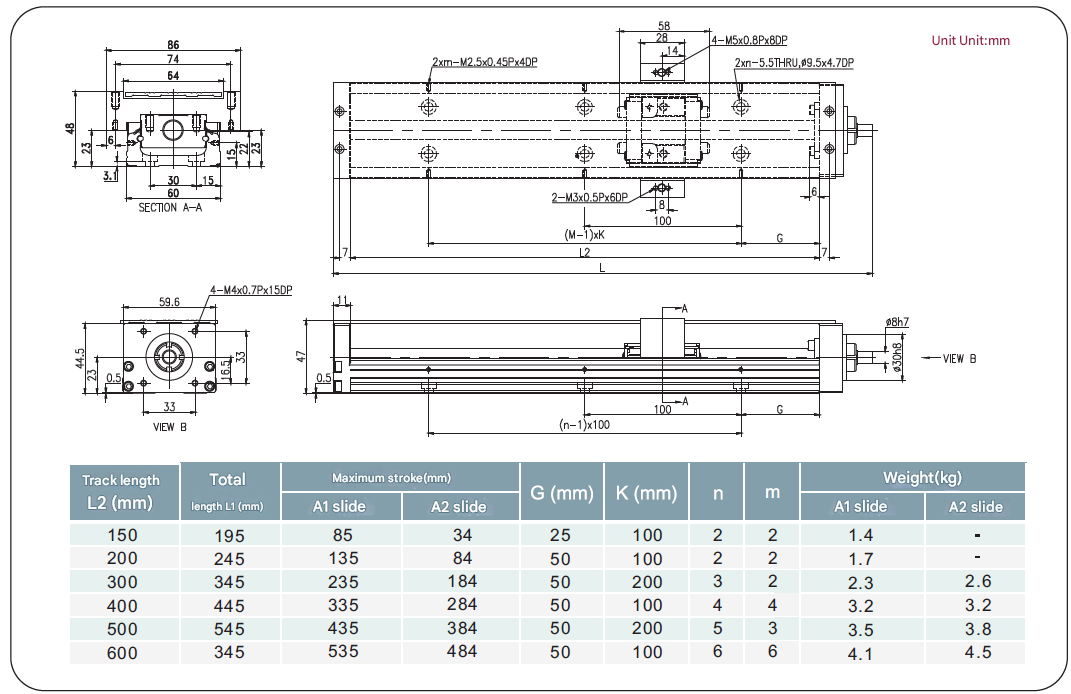

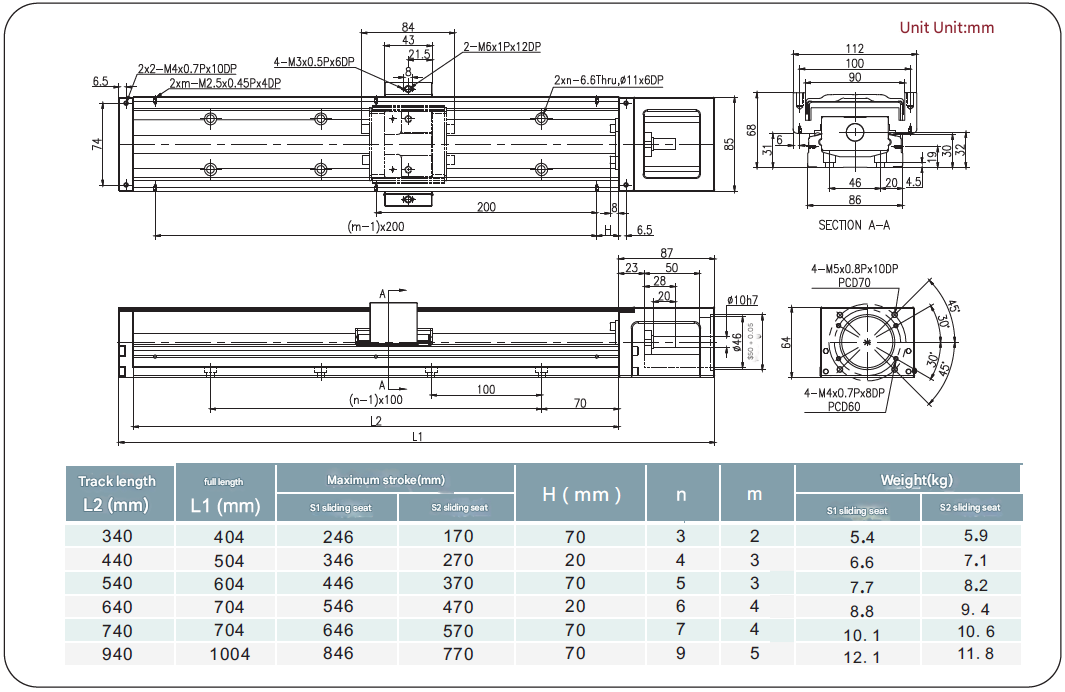

Structure diagram :

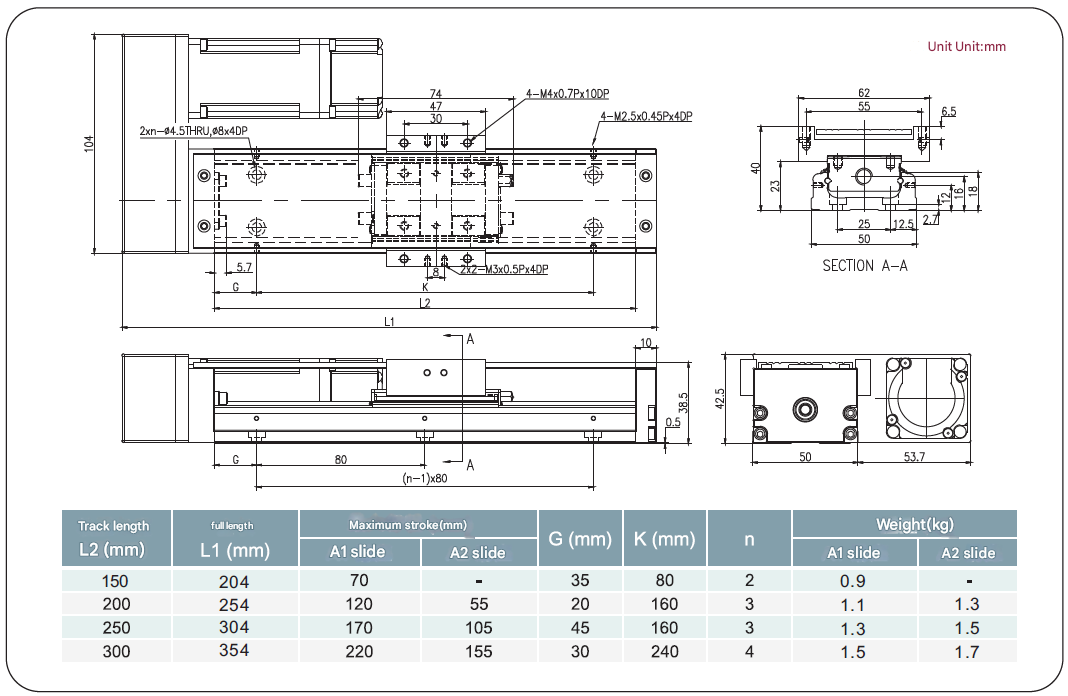

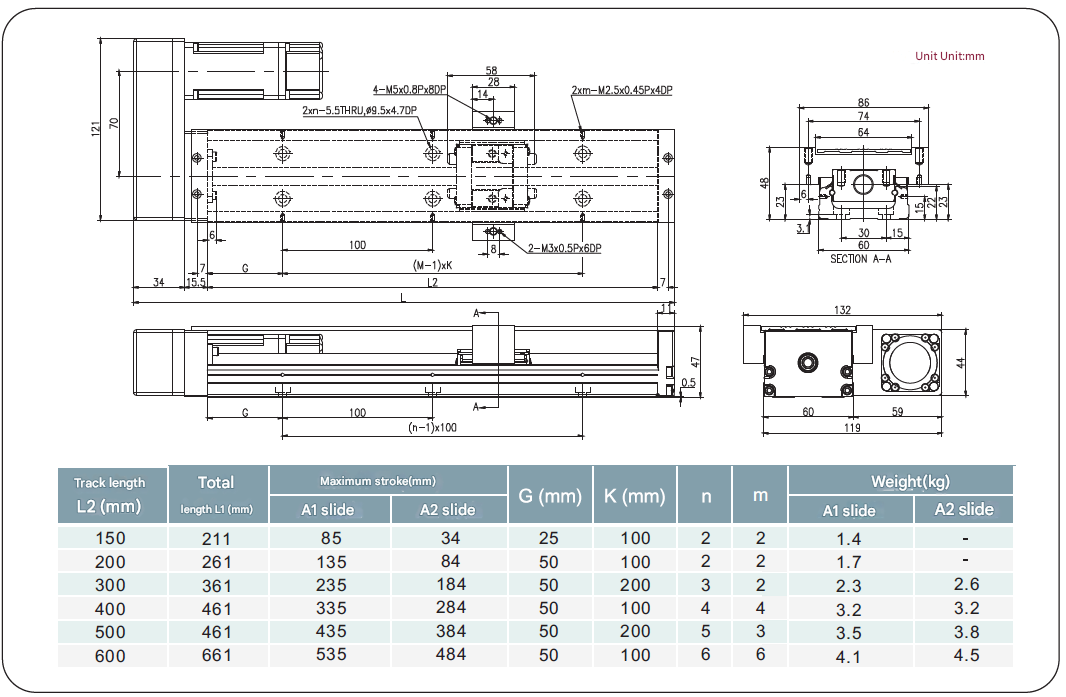

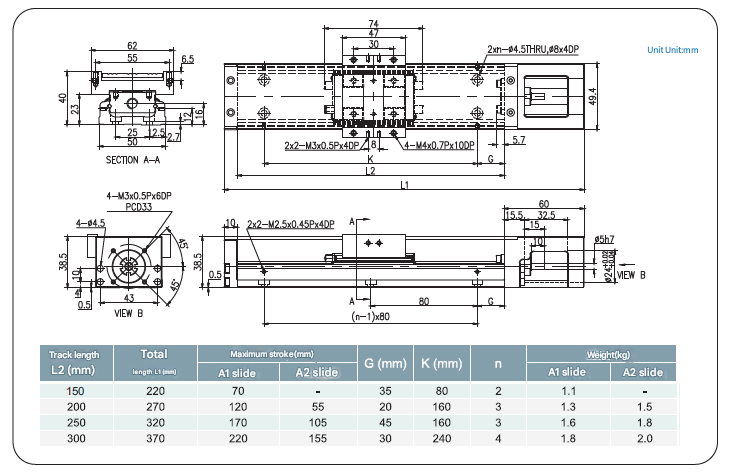

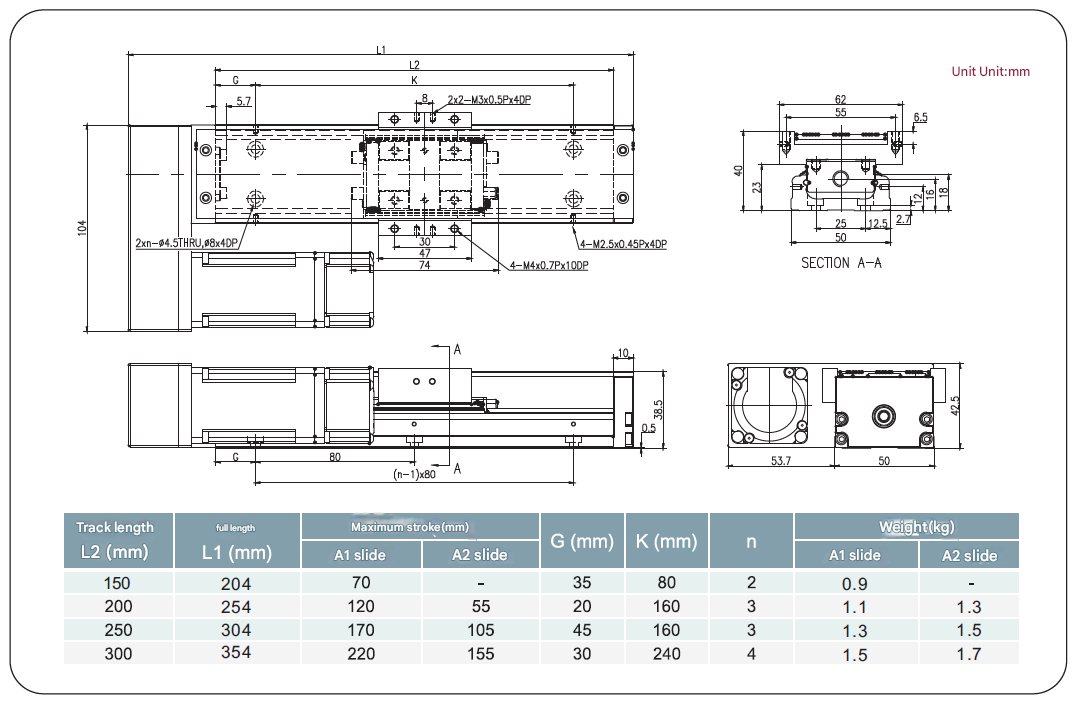

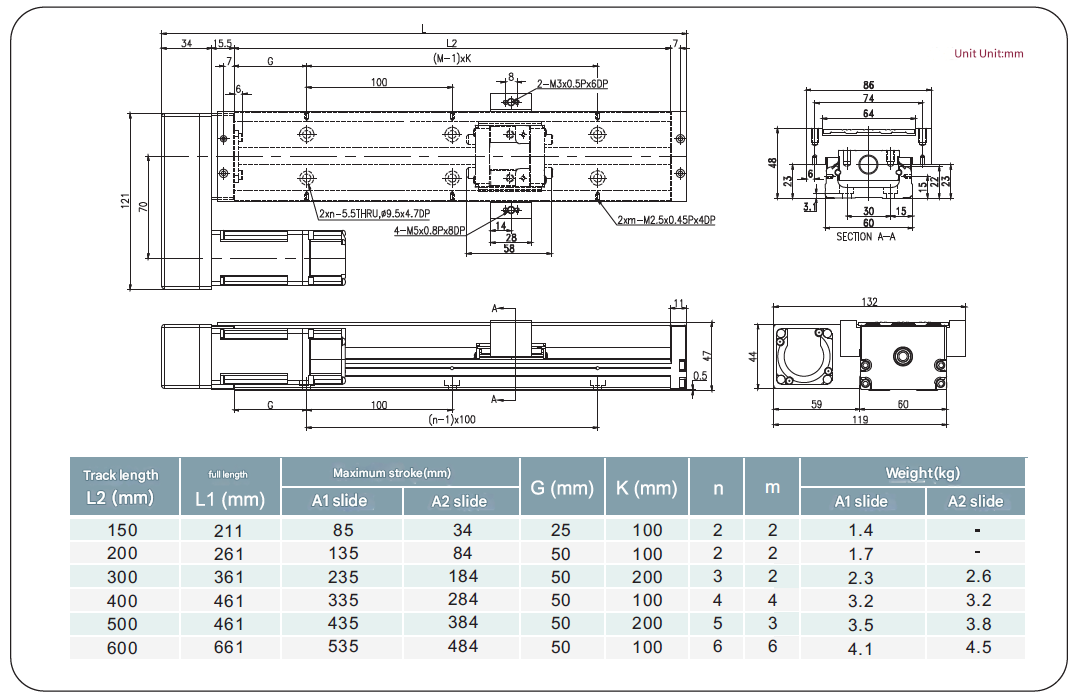

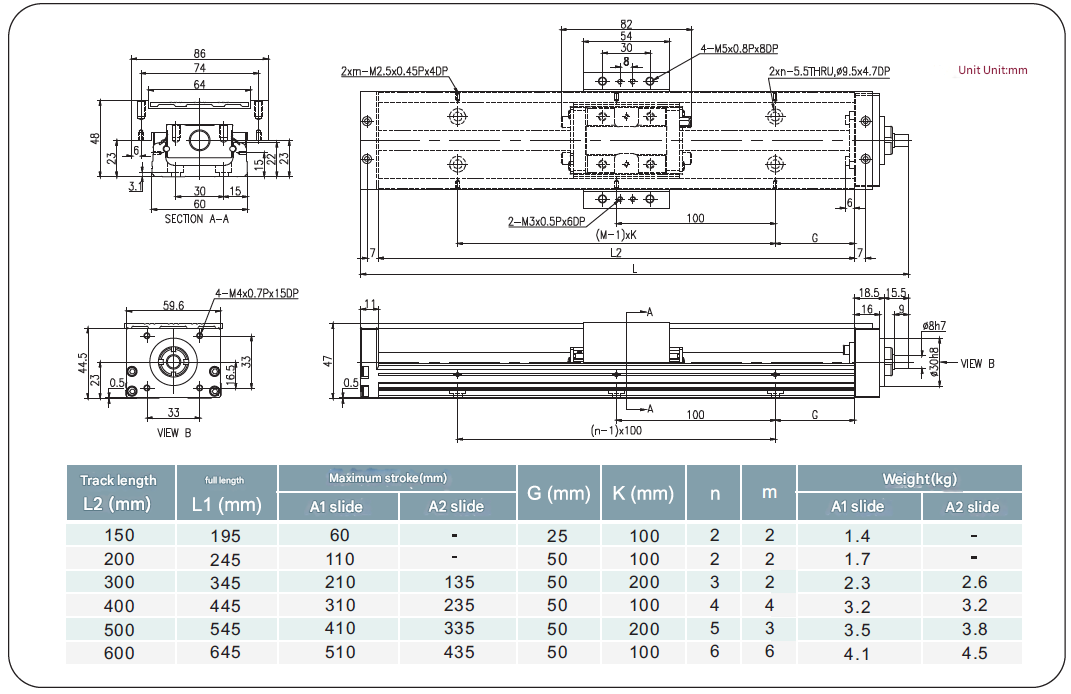

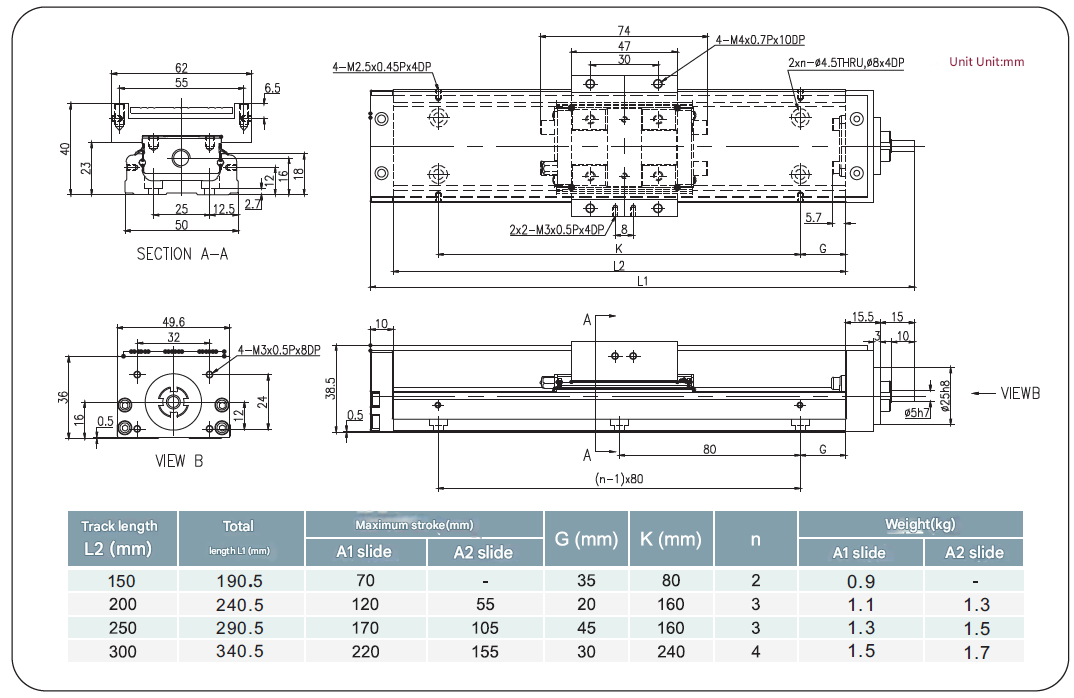

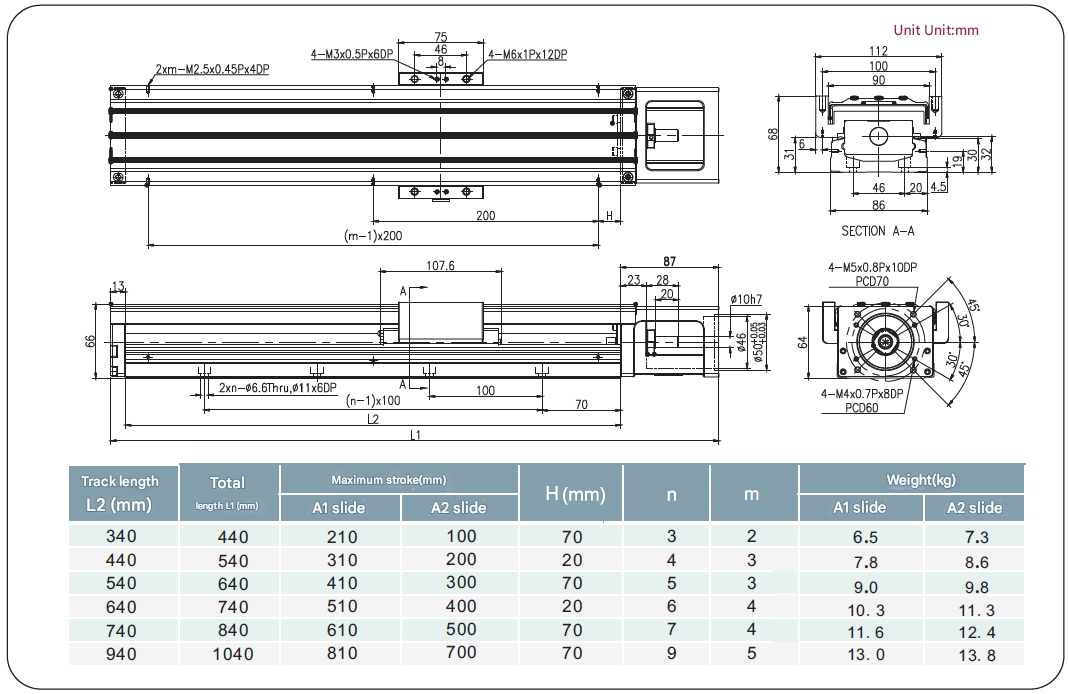

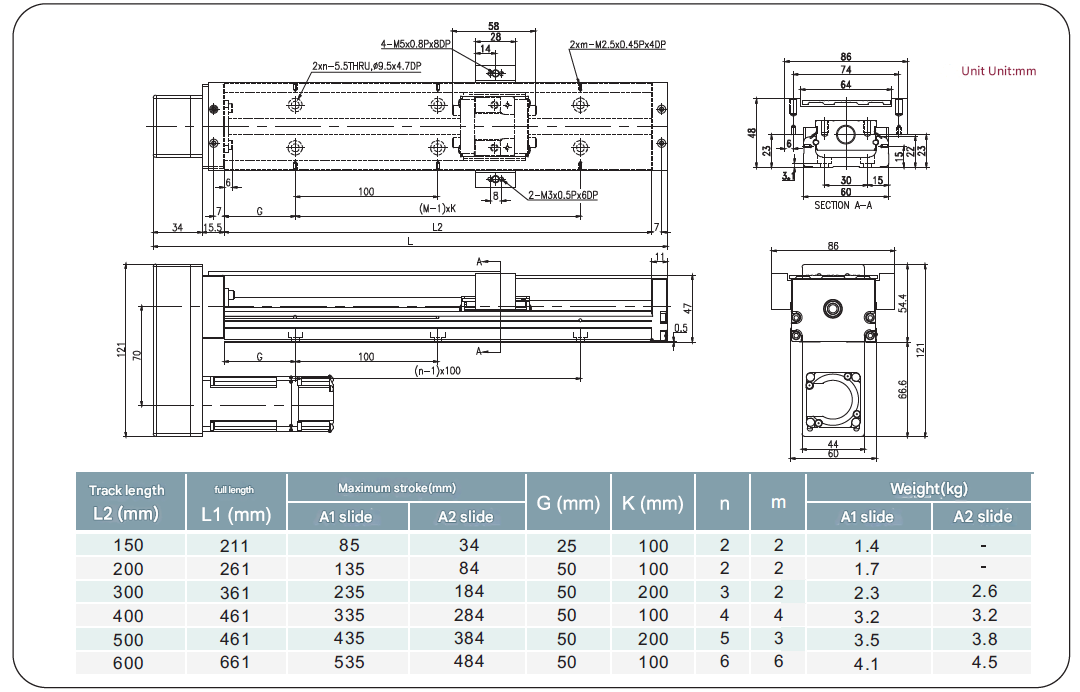

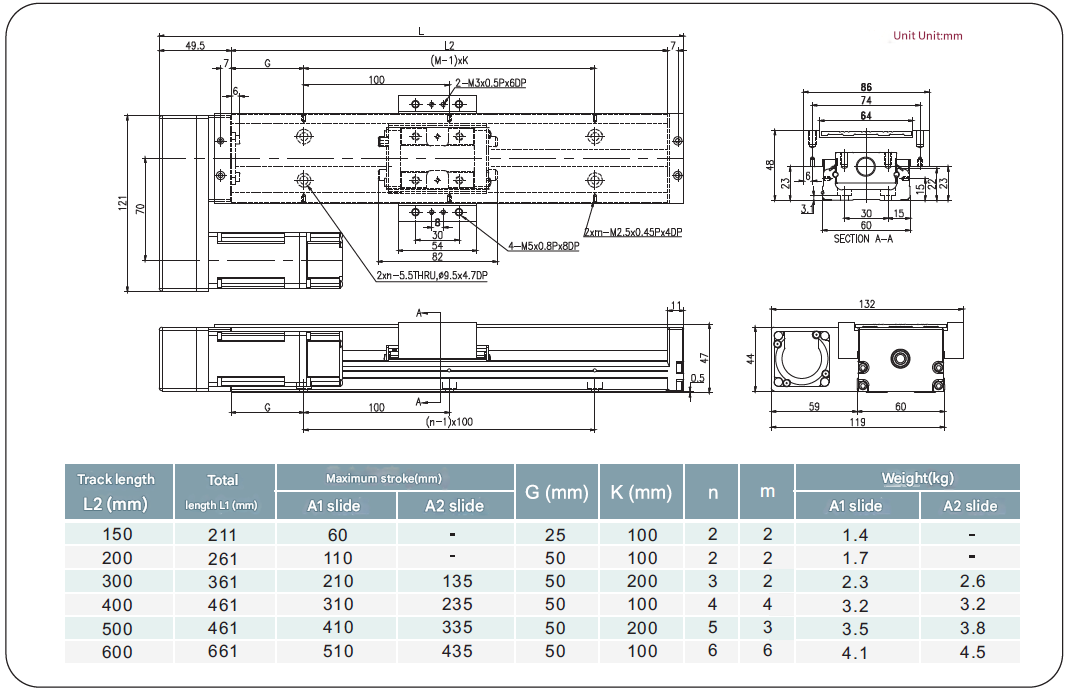

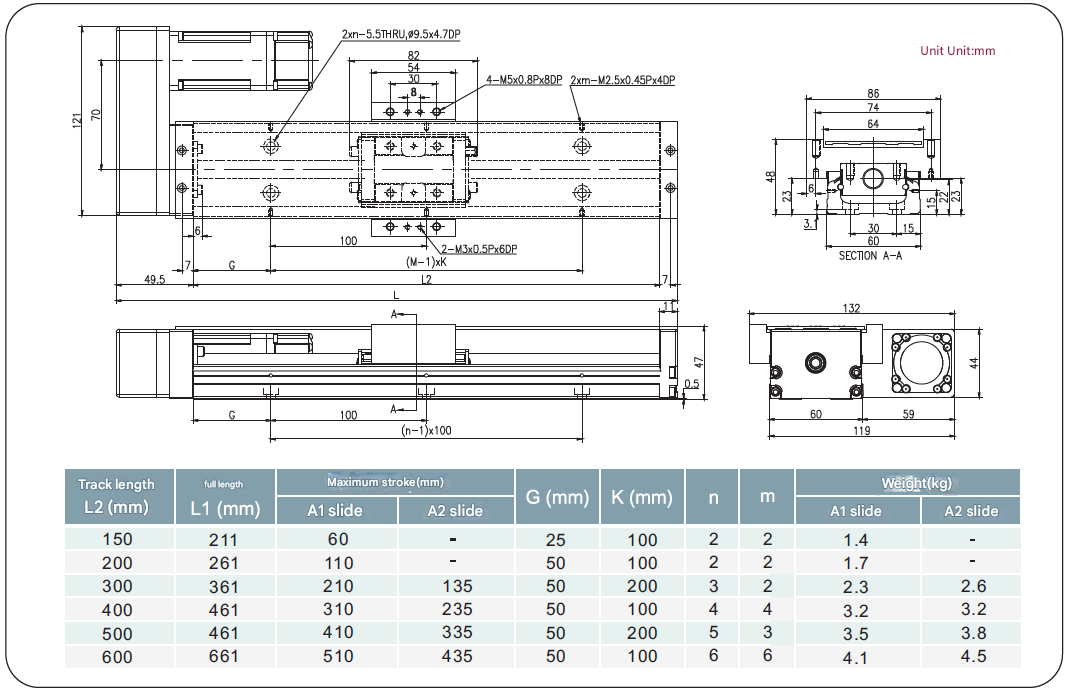

Dimension :







Specifications :



Model QKK5002 QKK5006 QKK6005 QKK6010 QKK8610 QKK8620
Precision level General level Precision level General level Precision level General level Precision level General level Precision level General level Precision level General level
Ball screw Nominal outer diameter (mm) 8 8 12 12 16 16
Guide (mm) 2 6 5 10 10 20
Basic dynamic rated load (N) 2136 1813 2050 1863 3744 3377 2410 2107 7144 6429 4645 4175
Basic static load rating (N) 3489 2910 2913 2619 6243 5625 3743 3234 12642 11387 7655 6889
Linear slide Basic dynamic rated load (N) Slide A 8007 8007 13230 13230 31458 31458
Slide seat S - - 7173 7173 21051 21051
Basic static load rating (N) Slide A 12916 12916 21462 21462 50764 50764
Slide seat S - - 11574 11574 29475 29475
Allowable static movement Pitch MP
(N-m)		 Slide seat A1 116 116 152 152 622 622
Slide A2 545 545 760 760 3050 3050
Slide seat S1 - - 72 72 228 228
Slide S2 - - 367 367 1309 1309
Deflection MY
(N-m)		 Slide A1 116 116 152 152 622 622
Slide A2 545 545 760 760 3050 3050
Slide S1 - - 72 72 228 228
Slide S2 - - 367 367 1309 1309
Rolling MR
(N-m)		 Slide A1 222 116 419 419 1507 1507
Slide A2 444 545 838 838 3014 3014
Slide S1 - - 241 241 847 847
Slide S2 - - 482 482 1694 1694




Accuracy level :

Model Track length
(mm)		 Positioning reproducibility (mm) Positioning accuracy
(mm)		 walking parallelism
(mm)		 Maximum starting torque (N-cm)
Precision level General
level		 Precision level General
level		 Precision level General
level		 Precision level General
level
QKK50 150 ±0.003 ±0.01 0.02 - 0.01 - 4 2
200
250
300
150 ±0.003 ±0.01 0.02 - 0.01 - 15 7
200
300
QKK60 400 ±0.003 ±0.01 0.025 - 0.015 - 15 7
500
600
QKK86 340 ±0.003 ±0.01 0.025 - 0.015 - 15 10
440
540
640
740 ±0.003 ±0.01 0.03 - 0.02 - 17 10
940 ±0.003 ±0.01 0.04 - 0.03 - 25 10




Maximum speed :

Model Ball screw lead
(mm)		 Track length L2
(mm)		 Speed
(mm/sec)
Precision level General level
QKK50 02 150 270 270
200 270 270
250 270 270
300 270 270
06 150 270 270
200 270 270
250 270 270
300 270 270
QKK60 05 150 550 390
200 550 390
300 550 390
400 550 390
500 550 390
600 340 340
10 150 1100 790
200 1100 790
300 1100 790
400 1100 790
500 1100 790
600 670 670
QKK86 10 340 740 520
440 740 520
540 740 520
640 740 520
740 740 520
940 610 430
20 340 1480 1050
440 1480 1050
540 1480 1050
640 1480 1050
740 1480 1050
940 1220 870
