SPEED CONTROL MOTOR
Speed Adjustable Motor 120W (6IK Series)
Speed Adjustable Motor 120W (6IK Series)



Speed Adjustable Motor 120W (6IK Series)

SEM Equipment Sdn. Bhd. flag
Kategorya: SPEED CONTROL MOTOR Magagamit
Para sa karagdagang impormasyon, bisitahin ang aming opisyal na website sa sem-eq.com
Bisitahin ang Opisyal na Website Makipag-ugnayan sa amin
Deskripsyon




Model :

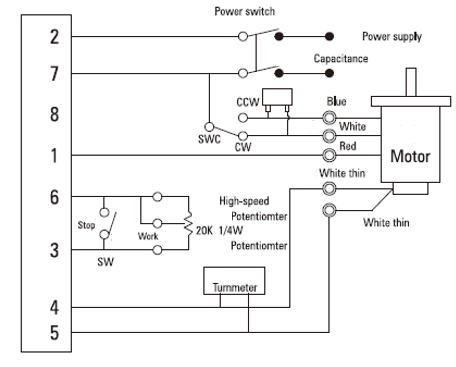

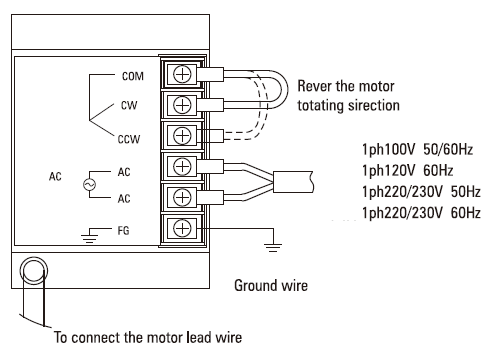

Diagram :

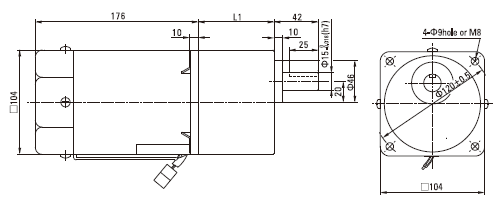

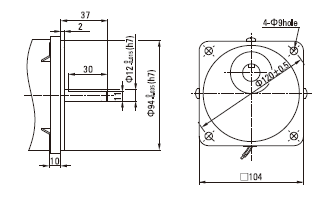

Dimensions :








Specifications :


Lead Wire Type Maximum Output
power 		 Voltage Frequency Speed Control
range		 Allowance
Torque		 Starting
torque		 Current Capacitor
Pinion Shaft Round Shaft W V Hz r/min 1200r/min
mN.m		 90r/min
mN.m		 mN.m A µF
Model 6IK120RGU-AF 6IK120RA-AF 120 1ph 100 50 90~1350 750 360 530 2.1 30
60 90~1650 2.5
6IK120RGU-EF 6IK120RA-EF 120 1ph 110 60 90~1650 750 360 520 1.7 20
1ph 120 1.8
6IK120RGU-CF 6IK120RA-CF 120 1ph 220 50 90~1350 750 330 530 0.95 8
1ph 230
6IK120RGU-HF 6IK120RA-HF 120 1ph 220 60 90~1650 750 360 530 0.95 8
1ph 230 1
