SPEED CONTROL MOTOR
Speed Adjustable Motor 120W (5IK Series)
Speed Adjustable Motor 120W (5IK Series)



Speed Adjustable Motor 120W (5IK Series)

SEM Equipment Sdn. Bhd. flag
Kategorya: SPEED CONTROL MOTOR Magagamit
Para sa karagdagang impormasyon, bisitahin ang aming opisyal na website sa sem-eq.com
Bisitahin ang Opisyal na Website Makipag-ugnayan sa amin
Deskripsyon



Model :

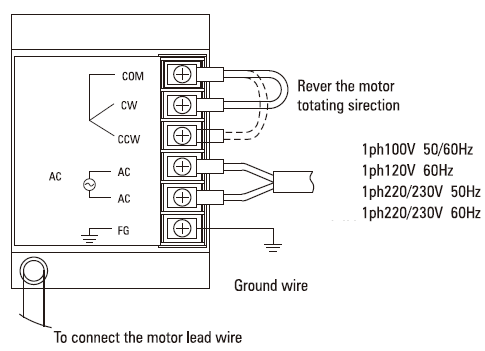

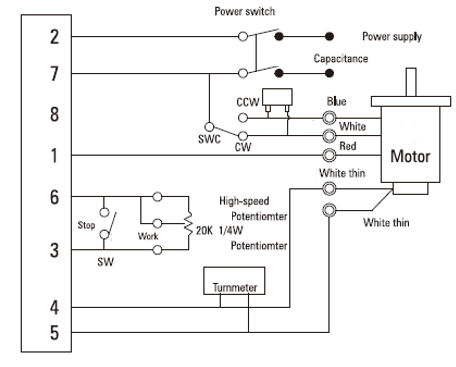

Diagram :

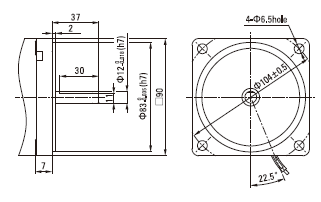

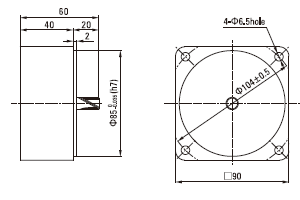

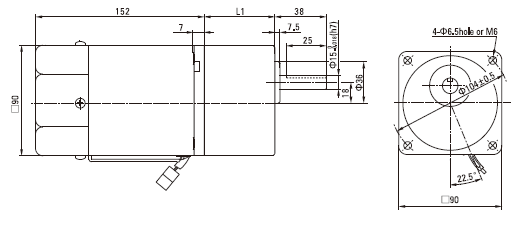

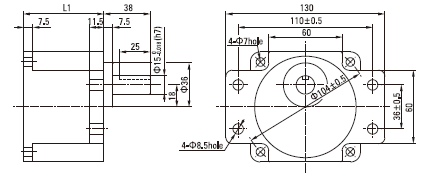

Dimensions :












Specifications :


Lead Wire Type Maximum Output
power 		 Voltage Frequency Speed Control
range		 Allowance
Torque		 Starting
torque		 Current Capacitor
Pinion Shaft Round Shaft W V Hz r/min 1200r/min
mN.m		 90r/min
mN.m		 mN.m A µF
Model 5 K120RGU-AF 5 K120RA-AF 120 1ph 100
50
 		 90~1350 750 330 530 2.1 30
60 90~1650 2.5
5 K120RGU-EF 5IK120RA-EF 120 1ph 110 60 90~1650 750 360 530 1.65 25
1ph 120 1.8
5IK120RGU-CF 5 K120RA-CF 120 1ph 220 50 90~1350 750 330 530 1 7
1ph 230 0.95
5 K120RGU-HF 5 K120RA-HF 120 1ph 220 60 90~1650 750 360 530 1 7
1ph 230 0.95
