This High-Productivity Vertical Turning Center is Designed for Machining Aluminum Wheels for Motor Vehicles and Motorbikes etc.The PUMA VAW7500 series maximizes wheel machining productivity through the use of two powerful turrets. With an ability to maintain the high cutting capacity of the preceding model, it's machining performance has been greatly enhanced.
Large Machining Area
- Wheel size: 27.5 inch

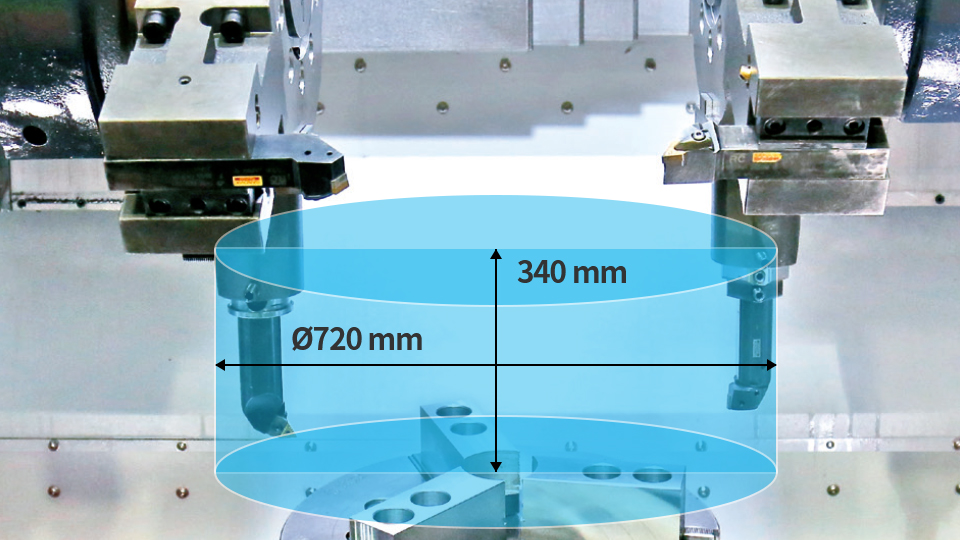

- Max. turning diameter: ø720mm / turning height: 340mm
Excellent Cutting Capacity and Relibility for Machining Wheels
- Structurally improved spindle, carriage system, and double servo driven turrets
- Max. spindle motor power: 85kW

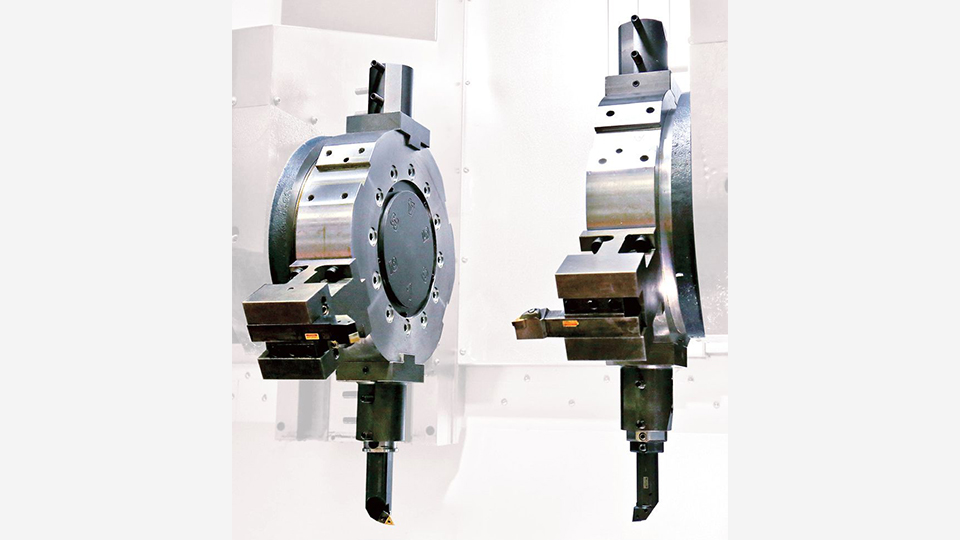

- Turrets: 8 + 8 st

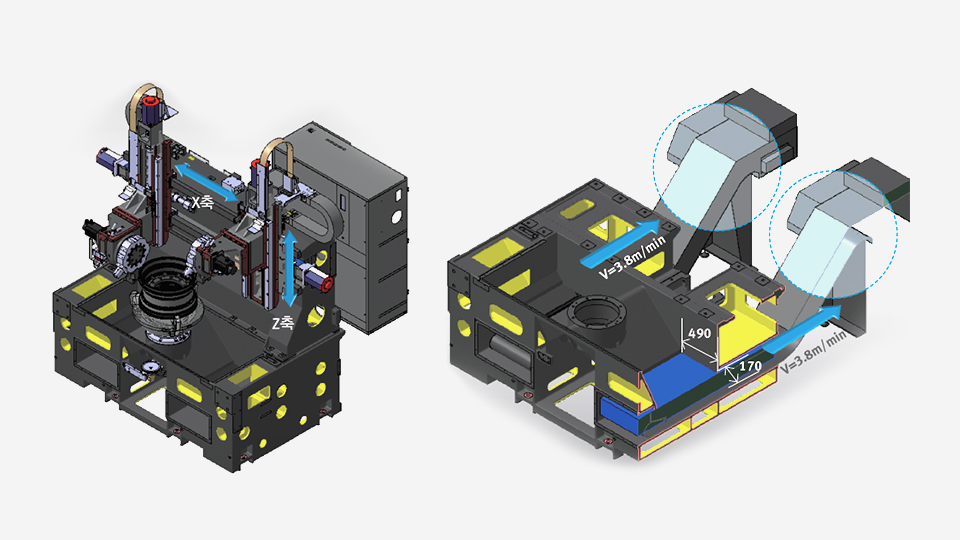

- High-efficiency twin chip disposal system improves productivity
- Compact installation area and optimized design for automation allows the integration of gantry or robot systems without the need to make structural changes
SPECIFICATIONS
CAPACITY
Chuck size - 24 inch
Max.turning diameter - 790 mm
Max.turning length - 350 mm
TRAVELS
X-axis rapid traverse - 30 m/min
Z-axis rapid traverse - 30 m/min
X-axis travel distance - 500 mm
Z-axis travel distance - 650 mm
MAIN SPINDLE
Max.spindle speed - 2000 r/min
Max.spindle power - 85 kW
Max.spindle torque - 1279 N.m
TURRET
No.of tool station - 8+8 ea
DIMENSIONS
Length - 4563 mm
Height - 3880 mm
Width - 3023 mm
Weight - 20000 kg
